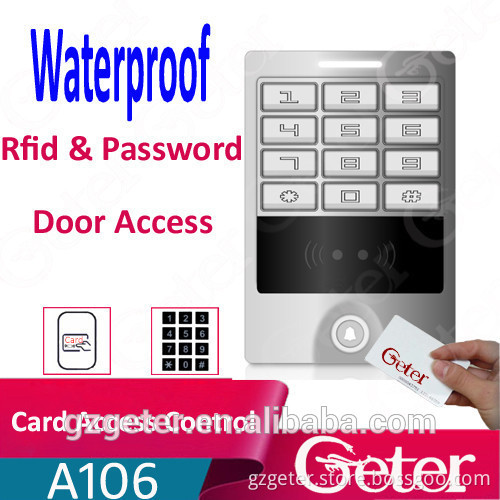

Metal Digital Backlit Keypad IP65 waterproof Card Access Control

    Main Features: > Aluminum alloy structure, waterproof, fully potted, confirms to IP65.
> Built-in 125KHz (EM&HID card) reader: sKey W-w H&EM
> Anti tamper, antistatic 15KV
> Digital backlit keypad. The back light can be set to Normal ON, Normal OFF
--or Automatic mode.
> Door bell function.
> Multi-function, operating as slave reader, single door, anti-pass back, etc,
--suitable for various occasions.   Specifications: > Operating voltage range: DC12-14V
> Idle input current: ≤35mA
> Max proximity card read range:EM&HID card:3-6cm
> Excitation frequency: 125KHz(EM,HID)
> Card transmit format: Wiegand 26-37
> Keypad output format: Input a 4-6 digits PIN, sends card number, each key
--press sends a 4 bits data, or each press sends an 8 bits data.
> Dimension (Height×Width×Depth): 125×83×21.7 mm
> Operating temperature range: -40~60° C (EM&HID card) : sKey W-w H&EM
> Operating humidity: 0-95%(non-condensing)
> Proximity Card: 125KHZ:EM,HID
> Max proximity card read range: 3-6cm
> Card transmit format: Wiegand 26-37(Wiegand26 is factory default)
> Idle input current: ≤35mA
