120mA Emergency Light Kit For 25W LED Ceiling Downlight Light Under 3 Hours

Product Description 120mA Emergency Light Kit For 25W LED Ceiling Downlight Light Under 3 Hours                  For example as following ;     Specifications  20W LED Emergency Downlight Kit

Product Code	EME-**
Description	20W LED EMERGENCY DOWNLIGHT KIT
Watts	20W
Battery duration	3 hours
Charging Time	24 Hours
Battery Sealed	9.6V/1.7Ah
Ambient Temp	+10C to +50C
Rated Supply	110/220V,50-60Hz

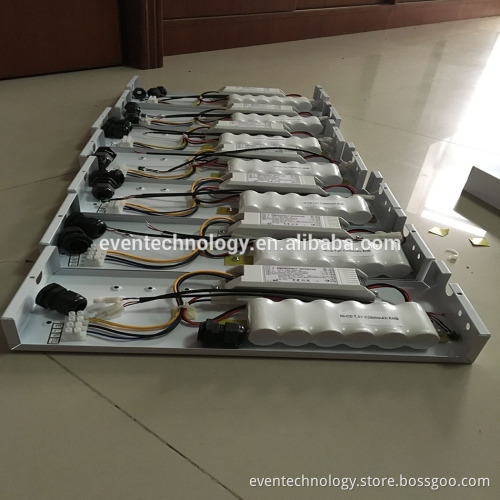

  Soon will send more details for your reference after confirm the following information.   1,What type of your luminaires and how many watts about it ? 2,What is your requirement about the Battery Duration ? 3,If external lighting,what is its driver's outpurt voltage and current ?         Label with custom LOGO :       Production Process     Emergency Testing:     Datasheet Emergency Kit for External Driver LED Products   1.Model: EME-**   2.Instruction manual Product name: Emergency lighting module for LED downlight,LED Panel,LED Ceiling light ect...   3.Product highlights 1. According to EN60598; EN 55015; CE; 2. Deep discharge protection 3. Operation time (discharge):1-3hours(Customized within 3hrs)     4.Specification Voltage: AC 220-240 V 50-60Hz Self consume power: <5W Batterycharging: 24hours Discharge current: 70mA Suitable light source: LED downlight Batteryspecification: Ni-Cd9.6V 1700MAh HT (High temperature) Environment temperature: -10…+55℃ Highest surface temperature: 70℃ LED charge monitoring Batteryprotection device equipped Test switch: switch between emergency and normal lighting function, should have normally open switch Applied LED downlight range:5-30W   5.Installing size (mm)     6.Connection drawing     7. APPLICATION GUIDE   7.1.Install the unit according to wiring diagram, any improper wiring may lead to permanent damage to the unit;   7.2.Normal AC mains supply, the inverter allows the battery pack charging,trickle charge to maintain battery performance.Sudden interruption of the mains AC,then the inverter converts DC battery powered to ensure that lighting and security;   7.3.Inverter with multiple protection functions:charge protection,discharge protection, short circuit protection;   7.4.To ensure maximum performance of the built-in battery, please fully charge the unit for 24hours after first installation;To extend battery life,please make sure charge the battery at least one time every three months;   7.5.Don’t install top of the high temperature objects.Please ensure that the operating ambient temperature is below 50ºC, and maximum case temperature (tc) not exceeding 70ºC;   7.6.Do not operate this unit beyond the operating supply range;   7.7. In normal use, the battery can be done 500 charge/discharge cycles   7.8. Inverter life is more than 4 years   7.9.If experience any problem during use,please contact with supplier for help.     Company Information         Packaging & Shipping           120mA Emergency Light Kit For 25W LED Ceiling Downlight Light Under 3 Hours
