High Performance SSD SATA DOM 128GB SATA 3 MLC 16GB hard drive Disk on Module

  High Performance SSD SATA DOM 128GB MLC  hard drive Disk on Module   Product Description          1.Product Specifications of 128GB SATA DOM SSD


Product Code	D6301
Interface	SATAIII
Flash	MLC
Density	16GB/32GB/64GB/128GB
Max Transfer Performance (Varies by density)	Read:347MB/s Write: 98MB/s
ECC	BCH ECC 72 bits/1KB
Operating Voltage	+5V(±5%)
Power Consumption  (Varies by density)	0.33W(idle) 0.97W(active)
Operating Temperature	0-70℃
Storage Temperature	-40-85℃
Humidity	5%-95%
MTBF	2,000,000 Hours
Shock	50(G),11(ms), half-sine wave
Vibration	3.1G(2-500Hz)
Dimension(mm)	39.30*22.00*7.10mm
Weight(g)	≤3.85g

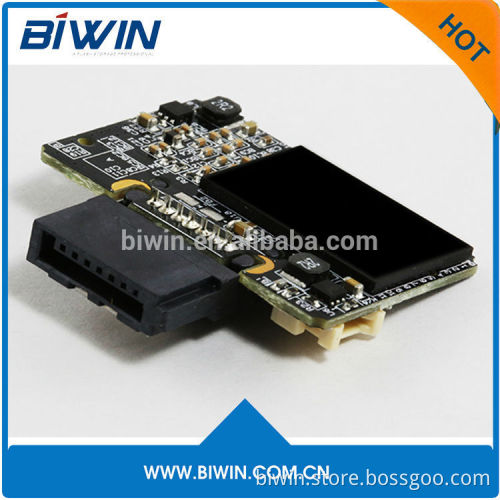

      2.Product Pictures of 128GB SATA DOM SSD Solid State Drive         3.Application of Our Products       4.More Products for You to Choose         Company Information         5. Our Factory View       Our factory has full range of product line:
- PCI-E, 2.5”SATA, 2.5”PATA, 1.8”SATA, 1.8”PATA, Half Slim, NGFF, mSATA, mSATA Mini, SATA DOM, PATA DOM, USB DOM - Memory Card: CFast Card, CF Card;
- Embedded Chips: eMMC, eMCP;
Applicable to harsh operating temperature environments of industrial grade.   6.Trade Show     7.Certifications   Biwin has passed ISO 9001 ISO 14001 and been audited by SGS. All of our SSD products are RoHS directive-compliant and carry CE, FCC, RoHS approvals. We offer all the models with 3 years warranty.       Our Services      8. Our Services   Reliability Testing: - High and Low Temperature Storage
- High and Low Temperature Operation
- High and Low Temperature Cycling
- ESD Testing
- Vibration and Shock Testing
- Room Temperature Aging Testing
- Power Failure Testing State-of-the-art Manufacturing:
- Quality Guaranteed Products
- Strict Quality Control Standards
- Short Lead Time
- Low Product Defect Rate
- Large production Capacity Wafer Packaging Service:
- First 12" Wafer Packaging Factory in South China
- Include IC Design, Packaging, Testing, Assembling
- Wafer Packaging Products:TSOP 48, QFN, QFP, BGA, LGA, eMMC, UDP.     9. Our Markets       10. Welcome to Contact Us
