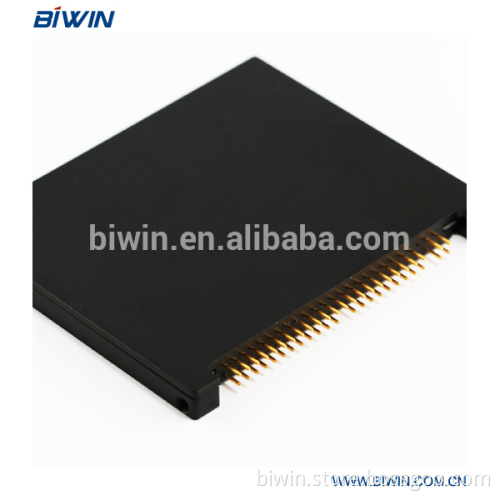

1.8'' ssd ide solid state disk

Specifications 1.8'' ssd ide solid state disk

1. MLC

2.SMI controller

3.reliable production, test, after-sale service

4.3-year warranty

        BIWIN  Storage Technology Limited                                                     We look foward to doing  win-win business with your side     1.8'' ssd ide solid state disk   Product Description  Features 1. Brand controller +NAND MLC flash, 44-pin IDE/ATA interface shock and vibration resistant ,no noise, power-off data protection 2.we own independent WAFER cutting, packaging and testing factory which is the 1st one in South of China. 3. Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm 4. Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology) 5. 3-year warranty   Parameters quick view

Commodity	1.8'' ssd ide solid state disk
Model Name	C6108
Interface	PATA ( 44-pin IDE)
Controller	SMI Brand controller (other options available)
Flash	Micron MLC (other options available)
Compacity	128GB (8,16,32,64GB available)
Max Transfer Performance (Varies by compacity)	Read: 113MB/S Write: 88MB/S
ECC	BCH ECC 24bits/1KB
Operation Voltage	+5.0V(+5%)
Power Consumption (Varies by compacity)	Idle:0.70W Active:1.55W
Operating Temperature	0-70 °C
Storage Temperature	-40-85°C
Humidity	5%-95%
MTBF	2,000,000Hrs
Shock	50(G),11(ms),half-sine wave
Vibration	2-500Hz at 3.1G
Dimmesion(mm)	70mm×59.90mm×6.30mm   1.8''
Weight(g)	<=45g
Applications	Laptop,desktop, Car DVR, Car WIFI, POS machines Cloud computing terminals Digital Signage etc

  Display Measurment Unit:mm Applications Portable PCs, Desktop PCs,Enterprise Servers,All-in-one machines(especially in school education), in-vehicle PCs,industrial PCs, Car WIFI,Car DVRs, laptops, tablet PCs, notebooks,ultra books, PO  machines etc, anywhere you used traditional HDD storage devices as long as it's compatible.     Company Information   About BIWIN      Founded as an electronic product manufacturer in Shenzhen, China ,1995, BIWIN specializes in producing FLASH storage products, including Solid State Drive, Compact Flash cards and Embedded  Chips.     We own 19-year industry expertise and a strong products' complete in house, including Solution Designing, Wafer Packaging, IC  Testing, SMT and Assembling , Product Testing.  Manufacturing is conducted according to strict quality standards to ensure consistently high quality products.    Why BIWIN?   Full range of high-quality products we have nearly 20-year expertise and experience in storage State-of-the-art manufacturing Strict test and QC in every step of production Wafer packaging service available Professional and united stuff support Prompt and satisfactory after-sale service and technical support     Payment&Shipping    1. We generally accept T/T, paypal. If you prefer other payment terms, pls let us know when you order.
2. Full payment/downpayment must be made within 7days after placing order,otherwise the order will be invalid or cancelled by the system. 3. DHL, UPS, Fedex, EMS, TNT, HK post air mail, HK post air parcel available 4. For sample order, 3-5business days after confirmation of full payment
   For bulk order, 8-15business days after confirmation of full payment or downpayment.   Returns&Warranty   Warranty scope:
1. The defects caused by manufacturing or materials.
2. Warranty  is within 36 months after shipment.
Non-warranty scope:
1.Products are not sold by Biwin.
2.The defects are beyond the Warranty Period.
3.The products have been changed by the third party, which is not authorized by Biwin.
4.The defects are caused by the improper operation.
5.The defects are caused by the accident such as dropping into water and so on.
6.The defects are caused by other conditions, which are not due to the fault of Biwin.
RMA procedures:
1. Make sure the goods are in the above warranty scope, and within warranty
2. Transfer all your data to other storage devices
3. Tell the defective product details to Biwin sales representative
4. After-sale representative’s confirmation, you will receive an RMA sheet with RMA number.
5. Return goods to Biwin.   More other SSD products we manufacture and develop, 2.5'' SATA/PATA  SSD 1.8'' SATA/PATA SSD mSATA SSD Half Slim SSD SATA /PATA/USB DOM PCI-E SSD CFast Card Compact Flash Card Smart phone EMMC      Thanks for your attention here, and look forward to further talk with your side.  We take care of and shortly reply to any of your inquiries and questions.  :-)
