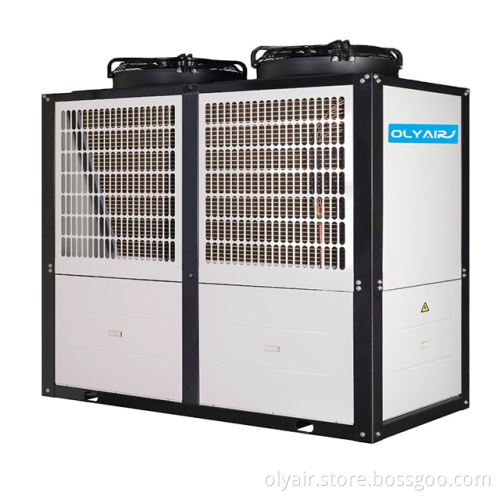

Air Cooled Modular Heat Pump with EVI Compressor Technology

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1000 Piece/Pieces per Month
Payment Type:	L/C,Western Union,T/T,MoneyGram
Port:	SHENZHEN

Product Description

Olyair Low Temperature Module Machine

Air Cooled modular heat pump with fully enclosed vortex jet enthalpy compressor and cycle operation technology

Air Cooled modular heat pump with fully EVI compressor and cycle operation technology

Specification Sheet

\			10P	13P	30P	60P
Model			LSRFM38/CN1-DW	LSRFM55/BN1-DW	LSRFM78/CN1-DW	LSRFM160/CN1-DW
Rated cooling (35℃)	Rated cooling capacity	W	22000	26000	60000	138000
	Cooling power	W	8148	9962	17910	40351
	EER	W/W	2.7	2.61	3.35	3.42
Rated heating 1 (20℃)	Rated heating capacity	W	38000	55000	95000	200000
	Rated heating power	W	8243	11702	21018	43956
	COP	W/W	4.61	4.7	4.52	4.55
Rated heating 2 (7℃)	Rated heating capacity	W	32000	43000	78000	160000
	Rated heating power	W	8889	11622	21667	44000
	COP	W/W	3.6	3.7	3.6	3.64
Nominal heating (-12℃)	Nominal heating capacity	W	20000	25000	48000	100000
	Nominal heating power	W	8000	10638	19200	39526
	COP	W/W	2.5	2.35	2.5	2.53
Power Specifications		/	380V~3N-50Hz
Maximum outlet temperature		℃	60		55
Maximum input power		W	14000	18000	35000	70000
Maximum input current		A	26	35	65	130
Control method		/	Dual electronic expansion valve control
Protection device		/	Exhaust/high voltage/low voltage/current/anti-freeze/anti-ice/fan overload/inverse lack of equal protection
Dimensions	(L * W * H)	mm	960×886×1056	1200×900×1890	2060×1030×2070	2200×1140×2220
Weight	Net	kg	250	380	650	1150
Weight	Gross	kg	265	420	715	1265
Refrigerant	Type	/	R410A
Refrigerant	Charge	kg	2.8*2	8*1	6*2	11*2
Lubricating oil	Types	/	POE
Noise		dB(A)	62	65	67	69
Unit function			Heating/cooling/hot water	Heating/cooling/hot water	Heating/cooling	Heating/cooling
