OlyAir AHRI Certified Air Handler with Condensing Unit for US Market
  • OlyAir AHRI Certified Air Handler with Condensing Unit for US Market
  • OlyAir AHRI Certified Air Handler with Condensing Unit for US Market
OlyAir AHRI Certified Air Handler with Condensing Unit for US Market
OlyAir AHRI Certified Air Handler with Condensing Unit for US Market

OlyAir AHRI Certified Air Handler with Condensing Unit for US Market

  • $1190.00
    180-359 set
  • $1185.00
    ≥360 set
Min. Order:
1 set
Min. Order:
1 set
Port:
yantian
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Supply Ability: 5000 Set/Sets per Month
Payment Type: L/C,T/T
Port: yantian
Product Description
Product Description

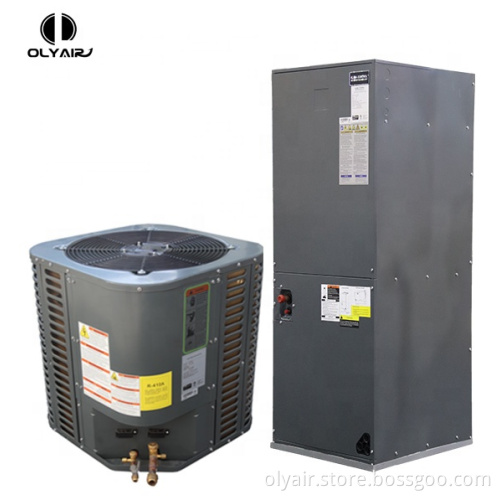

OlyAir AHRI certified Air handler with condensing unit For US market







OlyAir AHRI certified Air handler with condensing unit For US market







OlyAir AHRI certified Air handler with condensing unit For US market



OlyAir AHRI certified Air handler with condensing unit For US market



OlyAir AHRI certified Air handler with condensing unit For US market



OlyAir AHRI certified Air handler with condensing unit For US market



OlyAir AHRI certified Air handler with condensing unit For US market



Data sheet of AHU Indoor Unit:



Model CAHi-24HNVR1 CAHi-36HNVR1 CAHi-48HNVR1 CAHi-60HNVR1
Power supply V/Ph/Hz 208-230V/1PH/60Hz 208-230V/1PH/60Hz 208-230V/1PH/60Hz 208-230V/1PH/60Hz
Cooling Capacity        Btu/h 24000 34500 47000 56000
SEER Btu/h.W 17.5  17.5  17.5  17.5
Heating Capacity        Btu/h 24000 34500 46500 56000
HSPF   9.5 9.0  9.5 9.5
Indoor coil Number of rows   4×2 4×2 5×2 5×2
Tube outside dia. / Type          7mm / Innergroove tube
Fin spacing / Thickness / Type mm / mm 1.6 / 0.095 / Hydrophilic aluminium
Tube pitch(a) × row pitch(b) mm 13.37 × 21 13.37 × 21 13.37 × 21 13.37 × 21
Indoor motor type   ECM
Rated HP   1/3 1/2 3/4 3/4
Rated RPM r/min 1050 1050 1050 1050
FLA   2.8 4.1 6.0  6.0
Indoor fan material   Galvanized plate
Type   Centrifugal
Diameter inch 11 11 11 11
Height inch 10-5/8 10-5/8 10-5/8 10-5/8
Indoor air flow     CFM 780 1300 1500 1750
ESP Pa 25 37.5 50 50
