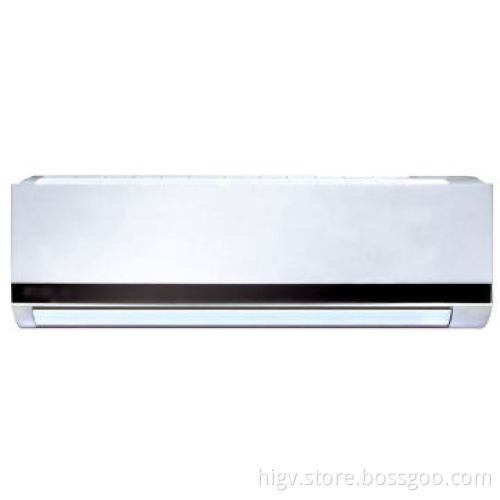

Wall Split Air Conditioner/ General Air Conditioner Wall Mounted Type/2014 Air Conditioner

"B1" Series

Model

9000BTU

12000BTU

18000BTU

24000BTU

30000BTU

9K

12K

18K

24K

30K

0.75Ton

1Ton

1.5Ton

2Ton

2.5Ton

Factory Model

Cooling

KF-25GW/B1

KF-35GW/B1

KF-50GW/B1

KF-70GW/B1

KF-90GW/B1

Cooling&Heating

KFR-25GW/ B1

KFR-35GW/ B1

KFR-50GW/ B1

KFR-70GW/ B1

KFR-90GW/ B1

Optional Power Supply

Ph-V-Hz

1Ph 220V-240V/50Hz   0r 1Ph 208V-230V/60Hz

Cooling

Capacity

w

2500

3500

5000

7000

9000

power

w

890

1270

1850

2500

3250

Current

A

4

5.8

8.4

11.4

14.7

 Heating

Capacity

w

2550

3600

5050

7100

9050

power

w

880

1280

1800

2450

3230

Current

A

4

5.8

8.2

11

14.7

Operation temp

°C

 16-32

 16-32

 16-32

 16-32

 16-32

Ambient temp

°C

 -7-45

 -7-45

 -7-45

 -7-45

 -7-45

Noise- indoor/outdoor

dB(A)

36/50

38/52

39/53

42/61

45/63

Weight- indoor/outdoor

Kg

9/28

10/32

14/42

17/50

25/65

Indoor Dimension

Net

mm

718*240*180

Package

mm

805*305*225

Outdoor Dimension

Net

mm

640*240*490

Package

mm

720*310*550

720*310*550

860*340*600

910*390*710

1040*410*790

Qty ’ per 20’ /40'HQ

set

135/350

120/265

110/230

70/170

60/145

 Note:All the data in the brochure is only for reference,designs and specifications might be changed without prior notice.
