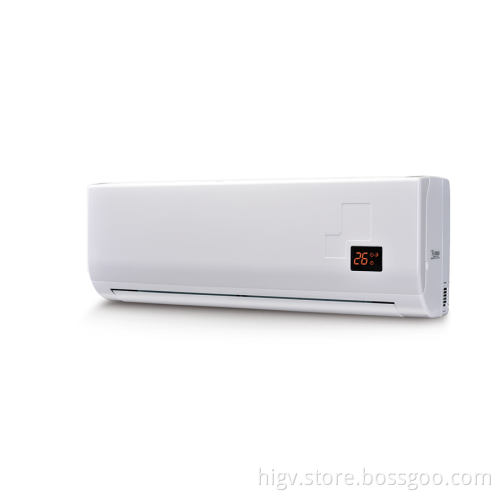

35GW/DC 100% solar power DC air conditioner

Product Description

RECHARGABLE 48V DC AIR CONDITIONER
Power Supply:48VDC (44V to 54 V)
Model No.			HIG-26GW/DC	HIG-35GW/DC	HIG-50GW/DC	HIG-72GW/DC
			1HP	1.5HP	2HP	3HP
Performance
Capacity	Cooling	Btu/h	9000	12000	18000	24000
		W	2600	3500	4300	7200
	Heating	Btu/h	10000	13000	18000	27000+1700
		W	2800	3700	4800	7900+500
Noise	Indoor	dB(A)	≤40	≤42	≤43	≤50
	Outdoor	dB(A)	≤50	≤52	≤54	≤58
Air Circulation		m³/h	450	550	650	1050
Suitable Area		m²	10~15	12~25	20~30	30~48
EER		W/W	4.56	3.89	3.91	4.80
		Btu/h/w	15.79	13.33	16.36	16.00
Refrigerant			R-134A	R-134A	R-134A	R-134A
Compressor		DC 48V	DC 48V	DC 48V	DC 48V	DC 48V
Operation Temp.		℃	17-30	17-30	17-30	17-30
Connection Copper Pipe			3m	3m	3m	3m
Power Consumption
Power Input		W	570	900	1100	1500
Rated Current		A	11.5	16	22	50
Input Power		V	DC 48	DC 48	DC 48	DC 48
Dimension
Indoor Unit	NET	mm	745*255*195	775*260*210	1070*385*265	1070*385*265
	Shipping	mm	780*240*305	840*325*265	1100*400*285	1100*400*285
Outdoor Unit	NET	mm	645*245*495	790*260*540	790*260*540	790*260*540
	Shipping	mm	725*320*540	910*370*610	910*370*610	910*370*610
Weight
Indoor Unit	Net/Gross	kg	11/13	13/15	15/17	15/17
Outdoor Unit	Net/Gross	kg	38/40	45/48	48/52	48/52
