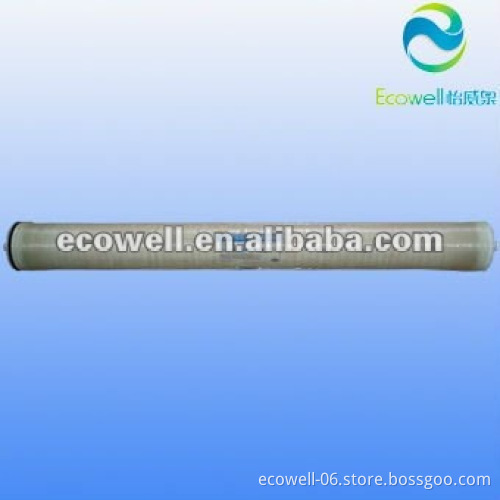

FILMTEC membrane filter

Specifications filmtec membrane filter

1)international standard dimension

2)applied widely in many fields

3)easily store for a long time

FILMTEC  membrane picture    Brief Introduction  DOW FILMTEC™ brackish water reverse osmosis membrane elements offer consistent, exceptional system performance in light industrial applications. DOW FILMTEC BW30-4040 is an industry standard for reliable operation and production of high quality water. Features the thickest feed spacer (34 mil) available in the industry today to lessen the impact of fouling. May be cleaned over a wide pH range (pH 1-13) for the most effective cleaning. Elements with a hard shell exterior are recommended for systems with multiple-element housings containing three or more membranes, as they are designed to withstand higher pressure drops.     Specifications

Nominal Active Surface Area ft2 (m2)	Permeate Flow Rate gpd (m3/d)	Stabilized Salt Rejection (%)
78 (7.2)	2,400 (9.1)	99.5

  Permeate flow rate and salt rejection based on the following test conditions: 2000 ppm NaCl, 225 psig (15.5 bar), 77°F (25°C), and 15% recovery. Permeate flow rates for individual elements may vary +/-20%. For the purpose of improvement, specifications may be updated periodically.

     Being suitable for the desalting treatment of those water sources with salt concentration lower than 2000 ppm, such as surface water, underground water, tap water and municipal water, etc., ULP series membrane elements are mainly applicable to numerous applications of various scales, such as pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production, etc.
