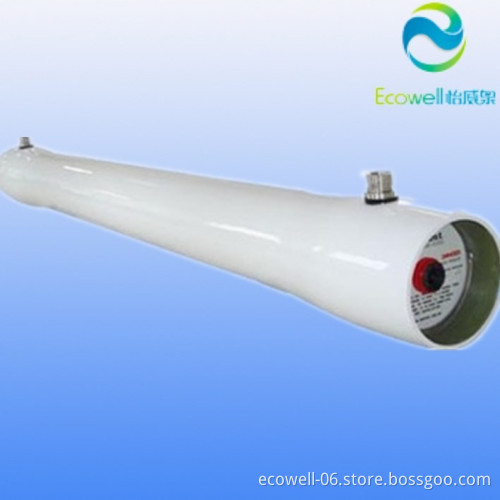

8 inch FRP RO membrane housing , frp pressure vessel

8 inch FRP  RO membrane housing , frp pressure vessel     Key Features   1.Type of pressure:150,300,450,600,800,1000PSI 2.Type of length:1~7 core 3.The appearange of color:Normally is white. But Customers' design are warmly welcome. 4.Special specifications can be customized.   Technical requirements   1.The manugacturing method of our FRP pressure vessel(membrane housing) is in accordance with the standard JC692-1998; 2.Desigh for the pressure pf the FRP pressure vessel(membrane housing)is150,300,450,600,800,1000PSI. And the permitted scope of working temperature is -7°C~49°C; 3.The permeability test of the membrane housing with a way of using water pressure.The test pressure is 1.5 times of the standard pressure.

Main Installation size
Working pressure	Module	L(mm)	S(mm)	P(mm)	Working pressure	Module	L(mm)	S(mm)	P(mm)
300PSI	1	1470	700	1140	1000PSI	1	1524	700	1142
	2	2486	1454	2156		2	2540	1454	2158
	3	3502	2064	3172		3	3556	2064	3174
	4	4518	1646x2	4188		4	4574	1646x2	4192
	5	5536	2000x2	5206		5	5590	2000x2	5208
	6	6552	2357x2	6222		6	6606	2357x2	6226
	7	7568	3084x2	7238		7	7622	3084x2	7242

        If you are interested, pls feel free to contact me!
