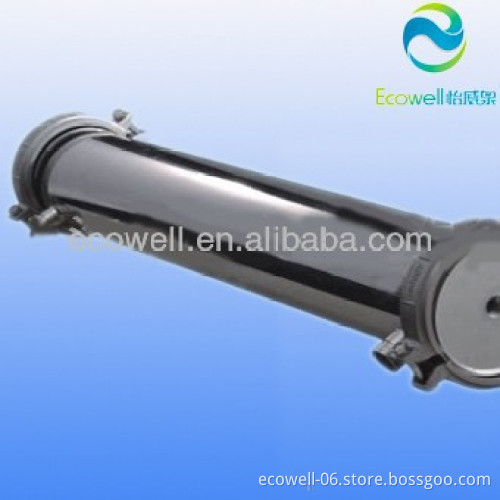

SS304 RO Membrane Housing 4040

Specifications SS304 RO Membrane Housing 4040

1.Membrane housing

2.Suitable most ro membrane element

3. High Polished Exterior

SS304 RO Membrane Housing 4040   Features:    Stainless Steel 304/316L connections Maximum Operating Pressure 250 PSI (17bar)
Stainless Steel, High Polished Exterior
End Entry
Smooth & Sleek Look
Unique Design saves both Time and Money
Competitive Prices
Designed for direct connection to most style of RO elements
Double O-ring

Materials of Construction:
End Cap...Nylon with Fiber Glass / SS304 End Cap
Clamp...304 SS/316LSS
O-ring...Buna-N
Housing Body...304 SS/316SS
Permeate Plug...ABS Or Nylon Cap Screws...304 SS/ 316SS   Membrane Housing for Reverse Osmosis System   1) Diameter: 4"  or "8" 2) length: 1 , 2 ,3 ,4 ,5,6,7 membrane element 3)Max working pressure:  450PSI 4)connection: Side Port or End Port 5)Standard color: white ,other colors available  6)Leakage Test: 675psi 7)Operating temperature range: -7celsius degree to 49 celsius degree (20°F to 120°F)  8)Burst pressure :2600psi 9)Operating pH range:3-11 10)Cleaning pH range:2-12(less than 30min)   suitabe for Filmtec,Hydranautics ,Trisep ,CSM ,Koch ,GE ,vontron and other standard membrane If you are interested, contact me freely!
