2m3 per day seawater desalination systems, seawater desalination system

Specifications reverse osmosis seawater desalination machine 20m3/day

1. reverse osmosis technology

2.long life service

3. auto control

  2m3 per day seawater desalination systems we can design the water flow rate and material according to your requirement.       ♦High quality material(we can also use the material according to your requirements) ♦International advanced reverse osmosis technology ♦Excellent craft make the quality good ♦Long life service   Specification:

size	1000*800*1700mm
power	7.5kw
voltage	440v/380v
weight	400kg
feedwater TDS	<35000mg/l
freshwater TDS	<600mg/l
capacity	1000l/h
membrane	USA Filmtec sw30hrle-4040*4pcs
membrane shell	FRP  1000psi*4pcs
precision filter	UPVC 10"*4 core*1 set
prefilter	400*1650mm *2 manual multiport valve
high pressure pump	NP25/50-12S Bronze
motor	440v/12A (380V)
HP regulator valve	oil filled anti-quake ,with contactor
electrical controlling box	over/lack pressure protection , membrane flushing, overload /short circuit protection

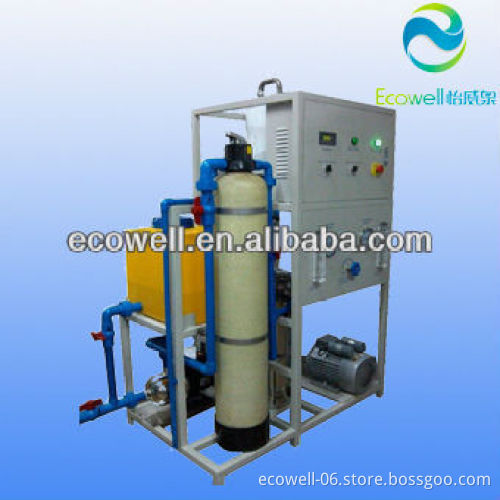

      Picture:  Design drawing:     We can manufacture the mahine according to your requirements.
