Geshem TPC-GS1052T 10.1''rugged tablet with Intel Baytrail-T(Quad-core ),Z3735F

Product Description

Product Outlook
Type		Details		Standard Configuration
Product Form		Type		Rugged Tablet
		Dimension		272*195*22mm
		Weight		Device unit: 1014g  Unit with giftbox and standard accessories:1990g Docking:290g,10000mAh battery:250g
		Device Color		Black+Silver(frant and rear Panel: black,Decorate board:Silver)
LCD		Screen Size		10.1'   16:10
		Resolution		1280*800   IPS
		Brightness		400 Nit
TP		Touch Panel		10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera		Front		Front:2.0MP   with indicator light
		Rear		Rear: 5.0MP
Speaker		Built-in		RAm
Mic				Sensitivity:-42db, output resistance:2.2kΩ
Battery		Type		Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm
		Capacity		3.7V/10000mAh
		Endurance		8hrs(default 50% volumn,default200nit,play 1080P HD video)
System Hardware Configuration
Type		Details		Description
CPU		Type		Intel Baytrail-T(Quad-core ),Z3735F
		Speed		1.33Ghz-1.86GHz
GPU		Type		Intel HD Graphic(Gen7)
RAM		DDR3L		2GB
ROM		Emmc		32GB
G_sensor		Built-in		Gravity acceleration sensor
Network Connections
Type		Details		Descriptions
WIFI		WIFI Module		WIFI 802.11(a/b/g/n)   Frequency 2.4G+5.8G dual band WIFI,
Bluetooth		Built-in		3G
3G		Built-in		IC:H350-A50-10 bands:WCDMA(900/2100MHz)  GSM(900/1800MHz),HSDPA 21Mbps,HSUPA 5.76 21Mbps
4G		Built-in		NA
GPS		Built-in		Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm;Cool Start Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)
NFC		Built-in		NA
Data Collection
Type		Details		Description
Fingerprint		Optional		NA
1D Barcode scanner		Optional		NA
2D Barcode Scanner		Optional		NA
Interface Configuration
Type		Details		Descriptions
TF slot		Extensive External Memory		Support SDHC/SDXC   x1    max:64G
USB Interface		Extend external memory and data transfer		USB 2.0*1 (Host)for windows       Android   OTG  x1
Earphone Jack		Audio Output		3.5mm standard earphone jack  x1
DC Jack		Power		DC 5V 3A 3.5mm Power connector  x1
HDMI		Video Output		HDMI 1.4a Type C  x1
Extensive Slot		pogo Pin		12pin  Pogo Pin   x1
Standard Accessories
Type		Details		Description
OTG Cable		OTG Cable		USB OTG to MICRO USB cable length:45mm
USB Cable		USB Cable		USB to micro 5P L=1.2M  4core aluminum foil shield cable
Power Adaptor		Standard		AC100V ~ 240V,50Hz/60Hz output DC 5V/3A      USA Standard  CE approval
Software Configuration
Type		Details		Description
Operation System		OS version		windows 8.1 with bing  non-activated   Default language:English  Or Android 4.4
Product Certificate
Type		Details		Description
Certificate System		IP65		IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X   a.Inner Nozzle diameter:6.3mm;   b. water speed:12.5±0.625L/min; c. Water Pressure:adjust according to water volumn; d.Central part of water volumn  e.Spray time in surface of panel:about 1min;f.test time:at least 3min; g.distance between nozzle and panel surface:2.5~3m. After test,there is no water leakage in sample.
		CE
		810G
Reliability
Type		Details		Descriptions
Product Reliability		Drop Height		100cm  composite wood floors, in operation status
		Operate Temperature		‘-20 °C to 60 °C  -4 °F to 140 °F
		Store Temperature		’-30 °C to 70 °C / -22 °F to 158 °F
		Humidity		Humidity: 95% Non-Condensing

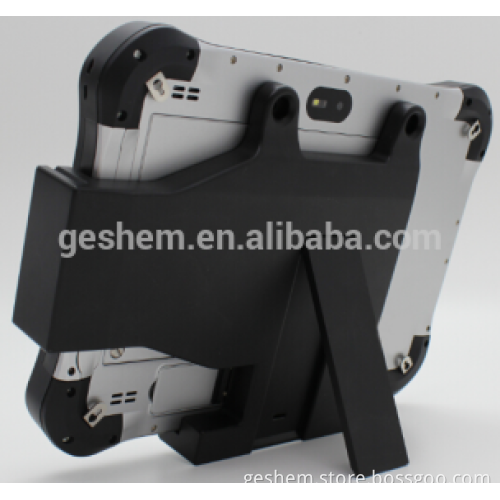

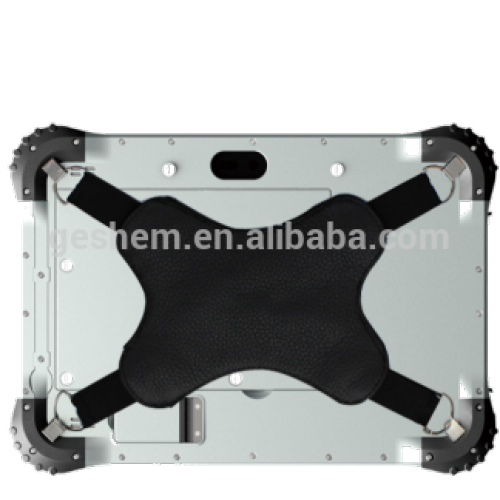

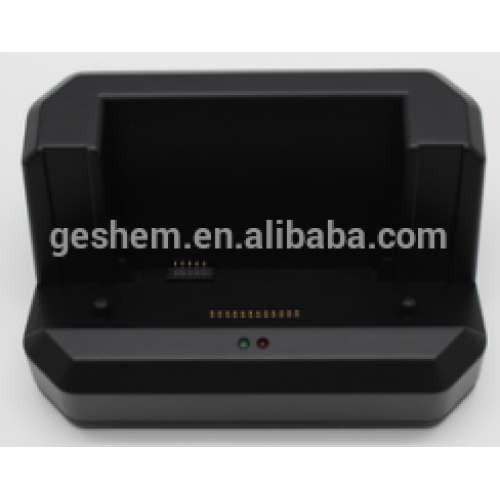

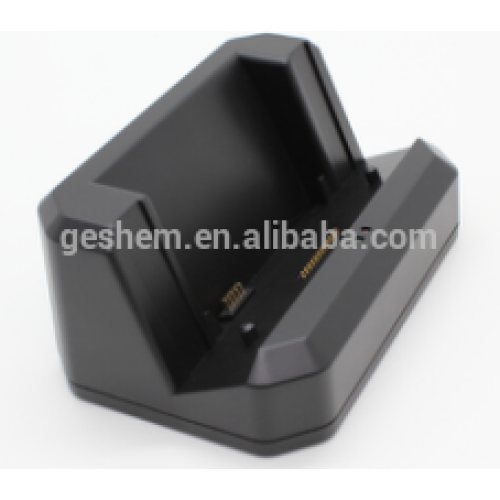

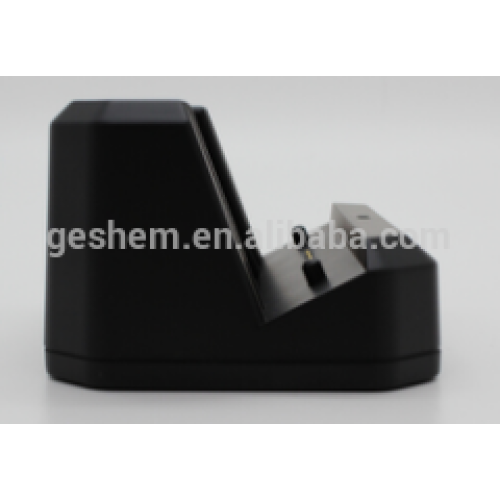

Product feature: 1.Support Windows8.1/Andriod 4.4.4 dual system; 2.Support all sizes of USB2.0 connector; 3.Support Docking charger docking extension; 4.Support NXP NFC(13.56M); 5.Support GPS Navigation; 6.Support 1D/2D barcode scanner; 7.Support finger print; 8.Rugged IP65 protection level; 9.Support 10000mAh pluggable battery; 10.Support Gorilla Glass Touch Panel; 11.Support 400 nit LCD; 12.Support Hand Strap and back jacket;
