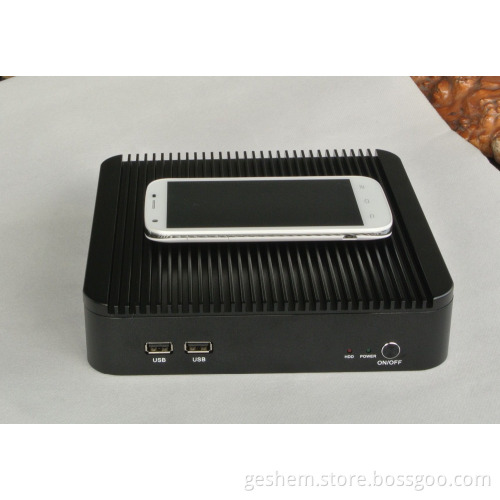

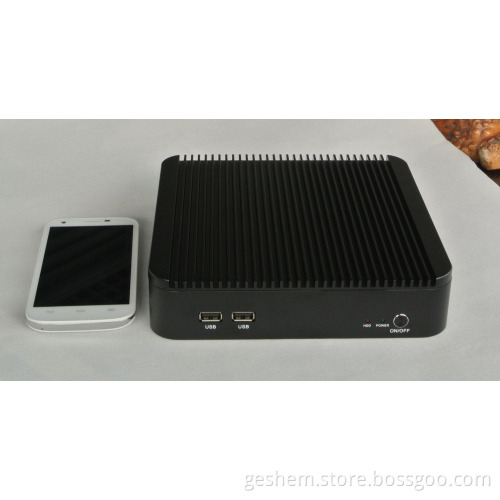

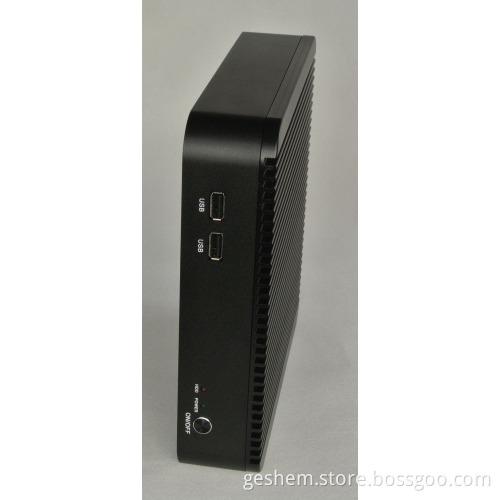

Fanless mini pc Intel Bay Trail J1900 quad core 2.4GHz processor oem mini pc

Performance

Chipset

Intel ® Bay Trail I1900 / N2930 Quad-Core

Memory

adapt by yourself

Hardware Monitor

Monitors Voltage, TEMP and CPU Fan Speed

Watchdog Timer

1 to 255 sec, setup by software

Storage

adapt by yourself

Power Supply

100~240VAC/50~60Hz (Power adapter);

12VDC/5A; (No power adapter)

O/S

Operating System

Windows 7/ Win 8

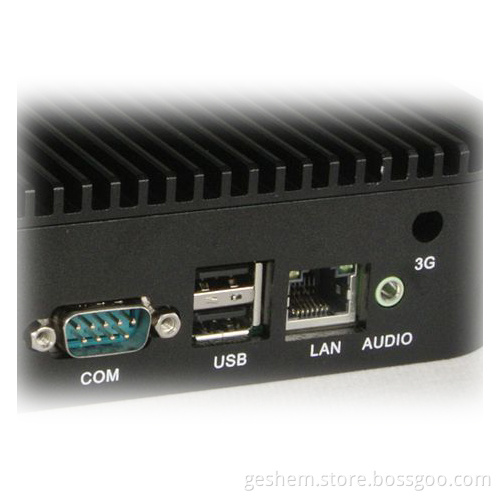

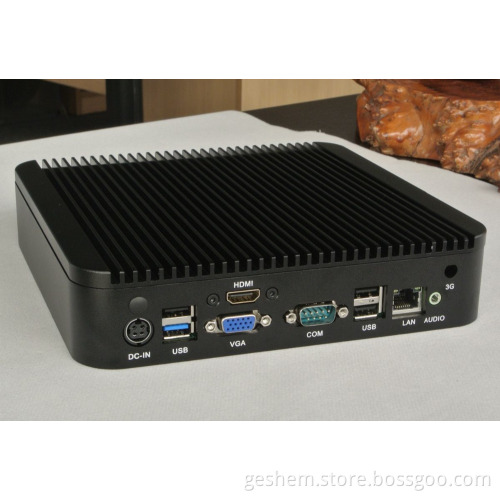

I/O Interface

USB

4 or 5 *USB 2.0 / 1*USB 3.0

Ethernet

1* RTL8111G 10/100/1000Mbps RJ45

Audio

1*Line out

Display

1*VGA +1*HDMI

Environmental

Anti-vibration

5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;

Anti-shock

10g acceleration, 11ms duration.

Reliability

MTBF≥50000h; MTTR≤0.5h

Operating Temperature

-10℃~60℃ (with airflow)

Storage Temperature

-20℃~60℃

Operating Humidity

95% @40℃, non-condensing

Mechanical

Dimensions

200mm (L) *200 mm (W) *52 mm (H)

Material

High-strength and elegant Al-alloy panel

Weight

1.7kg/2.1kg(NET./GROSS.)

Color

Slivery/Black
