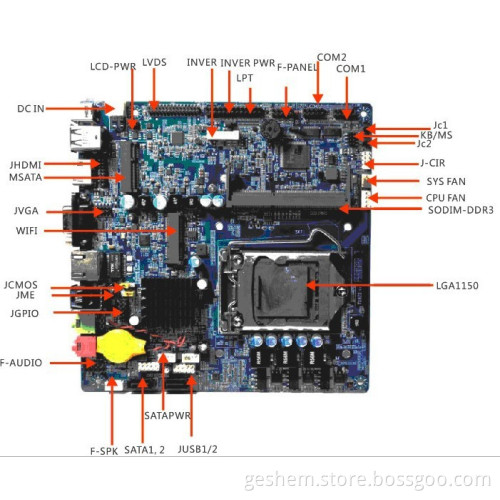

Industrial Motherboard/Embedded Motherboard 7'' Industrial Motherboard

Type

ITX-GSH0081B

Processor

Support Intel LGA1150/Haswell CPU

Chipset

Intel H81

Memory

1x DDR3 1066/1333/1600 MHz

8G MAX

Graphics

Depend on CPU

Display: VGA /HDMI

Audio

Realtek® ALC662 5.1 channel

LAN

1*RTL8111E 10/100/1000M

Storage Interface

1. 1.       2*SATA ll
2. 2.       1*M-SATA

Expansion Slots

1. 1.       1*MINI-PCIe

USB

1. 2.       6*USB 2.0(2*USB3.0 on the back panel)

BIOS

SPI AMI EFI BIOS

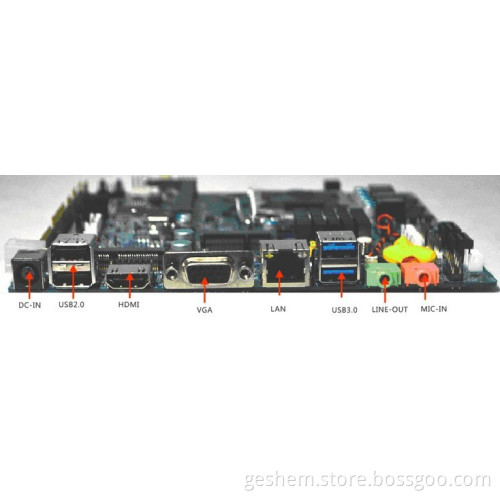

Back Panel Connectors

1. 1.       HDMI
2. 2.       1*VGA Port
3. 3.       2*RJ-45
4. 4.       2*USB 3.0
5. 5.       2*Line in/out

I/O Controller

1. 1.       2*USB PIN, Support 4 USB
2. 2.       6*COM 232 PIN
3. 3.       1*VGA PIN
4. 4.       30PIN LVDS
5. 5.       1*HDMI PIN
6. 6.       1*Audio PIN

OS

Windows XP/7/2000,Linux

Working condition

-10--50 Temperature

10%--85% Relative Humidity

Form Factor

MINI ITX 170x170mm
