15inches IP65 Industrial Panel PC

Products View          Features: l  Intel ® ATOM N2600 1.6GHz Processor l  15″TFT LED screen l  Resistive touch screen l  Fully-sealed fanless design, suitable for harsh industrial environment applications l  2G memory (DDRIII), up to 4GB memory l  2*USB/1*COM or 1*USB/2*COM/ l  1*VGA/1*RJ45 Gigabit LAN l  WIFI/3G (Optional) l  Complete IP65 l  All Aviation Connector l  Color: Slivery/Black/White     Specification

Display Feature	Display Screen	15″ TFT LED
	Resolution	1024*768
	Brightness	350 cd/m2
	Contrast ratio	400:1
	Touch Screen	Resistive touch screen
Performance	Chipset	Intel® AtomN2600+ NM10
	Memory	2G memory (DDRIII), up to 4GB
	Hardware Monitor	Monitors voltage, TEMP and CPU fan speed
	Watchdog Timer	Programmable 256 levels timer interval, from 1 to 255 sec, setup by software
	Storage	HDD:320GB 2.5'HDD CF :(Optional)
	Operating System	Windows XP/ Windows 7/ Linux
	Power Feature	Input voltage/frequency: 100~240VAC/50~60Hz (Power adapter); Input voltage: 9~36VDC Optional; (No power adapter)
		Power consumption of the PC: 25W (standby); Power consumption of the PC: 42W (Running MaxPower 100%).

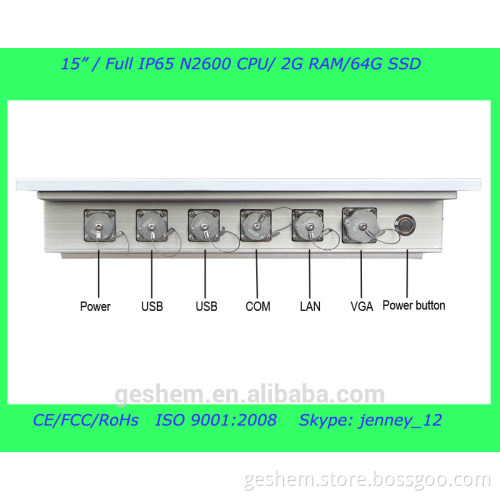

I/O Interface	USB	1 or 2*USB2.0 Ports
	Serial Port	2 or 1*RS232
	Ethernet	1* RTL8111DL 10/100/1000Mbps RJ45
	Display	1*VGA
	Wireless	WIFI/3G (Optional)
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration
	Anti-shock	10g acceleration, 11ms duration
	EMC	GB9254-2008 Class A
	IP Level	Complete IP65
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃(with airflow)
	Storage Temperature	-20℃~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	380mm(L)×300mm(W)×60 mm(H)
	Material	High-strength and elegant Al-alloy panel
	Weight	9.5kg/10.5kg (NET./GROSS.)
	Color	Slivery/Black/White

                                                                                                                                              Installation   1.) Standard Vesa Bracket for Wallmount:      Vesa 100x100mm or 75x75mm  2.) Side Pothook Aide for Cutout Frame Mount                                                        Packaging One Set/One Carton Carton Size : 520x450x200mm Net Weight :  6kg Gross Weight: 8.5kg Inner carton , outer carton and foam packaging are all customized according to products dimension which provide protection of cargo to great extend during shipment.   Accessories  Driver Disk / Lockable Adapter / Power Cord / Internal Inspection Approval   Warranty  One year limited warranty   Testing Equipment  Part of testing equipment ( temperature&humidity&vibration combined testing machine/EMC device/ network performance analyis system/oscilloscope)       Certificate  CE / FCC/ Rohs      ISO 9001:2008   Advantage Comparing with ordinary panel pc, industrial panel pc has greater stable performance and adapts to different enviroment with defferent feature, e.g.: dust-rich enviroment(ppc with fanless feature); anti-water enviroment(fanless ppc with full IP65 feature); anti-vandal feature(ppc with shielding screen); sunlight readable(ppc with sunlight readable screen); anti-shock and anti-vibration(ppc with rugged shell); wide temperature(ppc with treated motherboard), anti-salty fog( ppc with treated motherboard)...   Application Industrial Panel PC are widely used in various field(testing/food processing/logistics/manufacturing/  tunneling/vehicle terminal...)and mainly used as central control system.      Testing   Food Processing   Logistics   Manufacturing   Tunneling   Vehicle Terminal     Automation       Geshem Brief       FAQ    More products   ....
