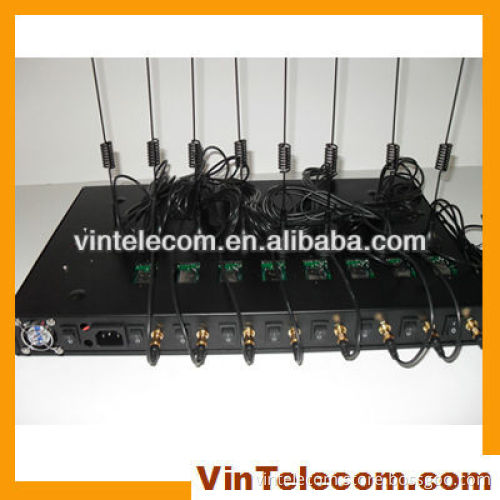

8 Ports GSM Fixed Wireless Terminal / FWT / FCT / Gateway

Name: 8SIM(Cards) GSM Fixed Wireless Terminal Model: VIN208   Features:
    1)  Providing 900MHz and 1800MHz GSM connectivity. Or 850MHz/1900MHz or 850/900/1800/1900Mhz for option.
    2)  IMEI changed (optional)
    3)  Simple to install/easy to maintain
    4)  Allow PIN code entering and reciprocal phone-card lock
    5)  Provide optimized circuit directly connecting the exchange device for extensions
    6)  Polarity reversal signal for metering
    7)  3.5dBi gain antenna
    8)  Compatible to PABX, VoIP gateway, IP PBX, Call back system, cord phone, Voice system, and etc.
    9)  Suitable for call termination of ISP
    10)  Dialing tone
    11)  DTMF Dialing
    12)  Caller ID. With DTMF/FSK(FSK is optional)
    13)  Hide calling out number.
    14)  Provide accuracy polar inverse or 12k/16k Hz signal for payphone
    15)  Working state indicator
    16)  Signal Strength indicator

Technical data:
    Air interface standard: GSM 900/1800 MHz Phase 2+
    Frequency ranges:
    GSM900:
    Transmit: 890~915MHz;
    Receive: 935~960MHz
    GSM1800:
    Transmit: 1710~1785MHz;
    Receive: 1805~1880MHz
    Channel space: 200KHz
    Sensitivity: -104dB
    Peak power consumption: 16W
    Phone interface: Supply RJ-11 Phone Interface Hanging voltage: 48V. Dialing  tone     Frequency: 450Hz
    Operating environment requirements:
    Temperature: 0C - +40C
    Relative humidity: 45% - 90%
    Connectors: SMA antenna connector
    Atmospheric pressure: 86~106Pka
    Power consumption: Static≤ 200 mA, emission≤ 4000 mA
    Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
    Power supply:
    AC220V more or less 10% 47-54Hz AC110V/60Hz( optional)
    DC12V (optional)
