GSM FWT / FCT / Gateway / Wireless Terminal

Specifications 1.Model: VIN-201 FWT

2.GSM Access with quadband

3.Easy operation with inserting G-SIM card

4.Good quality with best prices

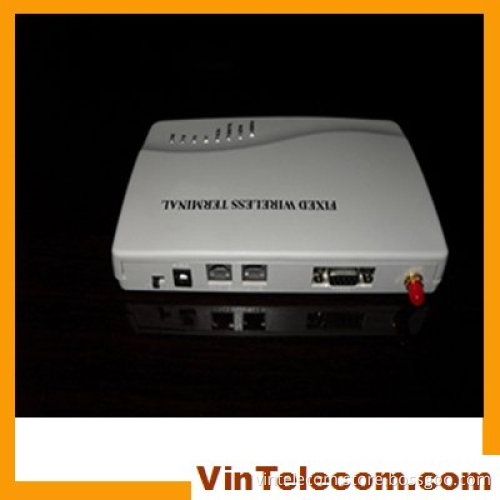

Name: GSM Fixed Wireless Terminal(gateway) Model: VIN 201   Features:
    1)  Providing 900 and 1800 GSM or 850/1900MHz(option) connectivity
    2)  Simple to install/easy to maintain
    3)  Allow PIN code entering and reciprocal phone-card lock
    4)  Provide optimized circuit directly connecting the exchange device for extensions
    5)  Polarity reversal signal or 12k/16KHz signal for metering
    6)  3.5dBi gain antenna
    7)  Compatible to PABX
    8)  Suitable for call termination of ISP
    0)  Caller ID. With DTMF/FSK

Technical data:
    Air interface standard: GSM 900/1800 MHz Phase 2+ or GSM 850/1900MHz(opation)
    Channel space: 200KHz
    Sensitivity: -104dB
    Peak power consumption: 2W
    Operating environment requirements:
    Temperature: 0C - +40C
    Relative humidity: 45% - 90%
    Connectors: SMA antenna connector (TNC optional)
    Atmospheric pressure: 86~106Pka
    Power consumption: Static≤ 25 mA, emission≤ 500 mA
    Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
    Power supply:
    AC220V more or less 10% 47-54Hz AC110V/60Hz( optional)
    DC12V (optional)
