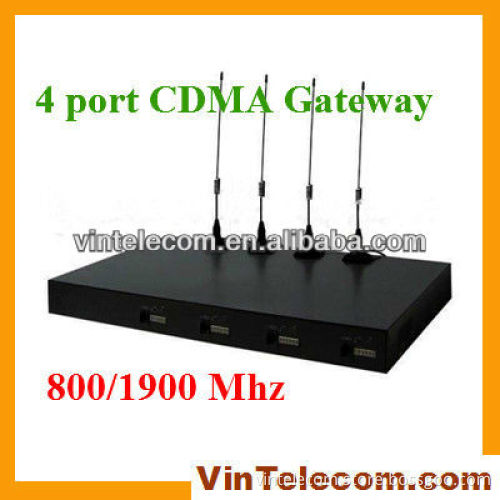

4 Ports CDMA Fixed Wireless Terminal 800/1900Mhz one year warranty china manufactural

Name: 4 channels CDMA Fixed Wireless Terminal Model: VIN-204C (4 SIM Cards)   Product Description The design of Vintelecom 4 Channel CDMA FWT is to supply a standard sound phone in the area of the CDMA Cell Network covering.

The interface board of the 4 channels CDMA 2000 1X 800MHz FWT supply a clear bond between standard phone or a VoIP GATEWAY or A PBX and CDMA Cell Network. It possesses the function of the emulation phone exchanger and supply.

Technical data:
   1)  Dialing tone with 450Hz
   2)  DTMF Dialing
   3)  Bell signal
   4)  Polarity reversal
   5)  The RJ-11 socket which connect the phone or the payment
   6)  Antenna socket (FME)
   7)  IP usage switch
   8)  Working state indicator
   9)  Signal Strength indicator
   10)  Technical Specifications
   11)  CDMA 800Mhz Module or CDMA Module 1900MHz(optional)    12)  Phone interface: Supply RJ-11 Phone Interface
   13)  Hanging voltage: 45V Picking off voltage: 30mA/41mA
   14)  Dialing tone Frequency: 450Hz
   15)  Antenna interface: Antenna amplifying 1.5dB
   16)  Sensitivity -104DBM
   17)  Transmitting power≤3W
   18)  Adapter interface: INPUT: AC 175~260V
   19)  OUTPUT: +12V/1000MA

Operation Circumstance:
    1)  Operation temperature: -10 ~ 60c
  2)  Storage temperature: -20c ~ 70c
  3)  Operation humidity: 45% _95%
  4)  Atmosphere pressure: 86 _106Kpa
  5)  Environment noise: 60dB
  6)  Transmitting Power: 2W
  7)  Sensitivity: <-104dbm
  8)  Antenna Amplifying: >1.5dB
  9)  Dialing frequency: 450Hz
  10)  Hanging voltage: 45V
  11)  Picking carrent: 30mA/41mA
