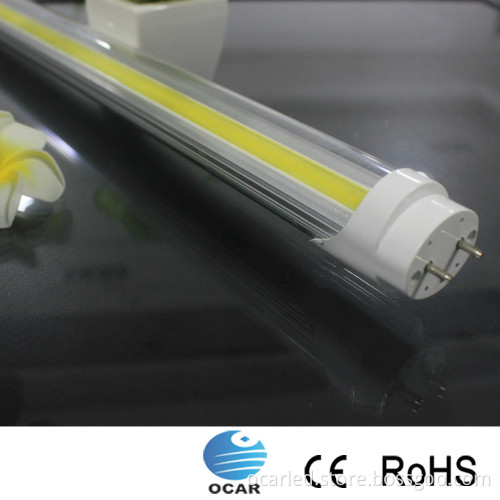

2016 new product 125-150lm/w COB T8 LED Tube

Welcome To OCAR 2016 new product LED cob tube lamp 18w 1.2m 4ft 125-140lm/w
  COB LED Tube Feature T8 COB LED Tube Feature: Producing LED light with big COB size chip to ensure high lumen. Shell Material: Aluminum alloy + PC (Clear PC lens, Milky PC lens are available) Built-in Driver, more safe and stable Rotatable end cap can be adjusted as the angle you like No RF interference,No buzzing noise No fluorescent flickering No danger of broken glass Maintance free easy installation Low power consumption,high intensity Ideal for all energy saving applications. Three years warranty
Technical Parameters T8 COB LED Tube Technical Parameters:

Item No.	CR-T8 COB 9W	CR-T8 COB 16W	CR-T8 COB 18W	CR-T8 COB 25W
Power	9W	16W	18W	25W
Size	600x26mm	1200x26mm	1200x26mm	1500x26mm
Luminious Flux	630-760lm	1200-1500lm	1400-1700lm	1750-2100lm
Shell Material	Aluminum alloy + PC (Clear PC lens, Milky PC lens are available)	Aluminum alloy + PC (Clear PC lens, Milky PC lens are available)	Aluminum alloy + PC (Clear PC lens, Milky PC lens are available)	Aluminum alloy + PC (Clear PC lens, Milky PC lens are available)
LED Source	COB(chip on board)	COB(chip on board)	COB(chip on board)	COB(chip on board)
Power Factor	0.95	0.95	0.95	0.95
Power Input	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Power Output	DC20-25V/400mA	DC20-25V/400mA	DC20-25V/400mA	DC20-25V/400mA
Color temperature	3000- 7000K(optional)	3000- 7000K(optional)	3000- 7000K(optional)	3000- 7000K(optional)
Working Temperature	-20-60 degree	-20-60 degree	-20-60degree	-20-60 degree
Warranty	3 years	3 years	3 years	3 years
Ceritificate	CE  ROHS	CE  ROHS	CE  ROHS	CE  ROHS


Application   Apply to hotels,office,shopping malls, shop windows, cafes, bars, offices, meeting rooms, exhibition halls, residential lighting etc      Picture Shows     FAQ Installation  FAQ 1. Do I need to change the lamp holders? - For T12 fluorescent replacement you do NOT need to change lamp holder. Disconnect and bypass the ballast and starter , and wire the bulb directly to building electrical wires using the existing "tombstones."   2. When replacing a T8 fluorescent bulb, the lamp holder must be replaced with the included non-shunted T8 lamp holder which allows you to connect a live and neutral wire to one end of the tube. And it comes with black and white wires attached to the holders, ready for splicing to building wiring.   3.Do the tubes need ballast or starter ? - No. LED light tubes don't need ballast or starter and won't work with one. Just plan on removing and/or bypassing the ballast and starter.   4.Does these LED tubes need a separate driver (AC to DC)? - No. They use standard AC 115 volt AC power directly from building     Packaging & Project COB LED Tube            More products ,Pls click the pictures,or http://ocarled.en.alibaba.com/   More Product      Welcome to OCAR , we will service for you sincerely ! Thanks and  Best regards! Kally Chan
=============================================
