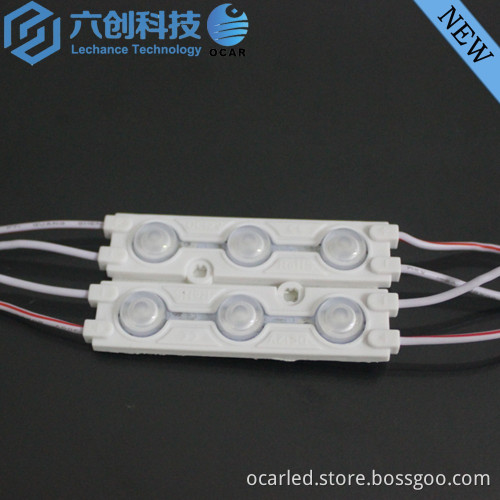

2016 Hot Selling New Design SMD5730 LED Module from China supplier OCAR

2016 Hot Selling New Design SMD5730 LED Module from China supplier OCAR     Features   SMD LED Module Features:   1. With TOP 5730 SMD LED, no dark spot. very bright and uniform color.   2. With a low power consumption and high lumen value,40-45LM/led,a long life-span, maintenance free.   3. Plastic injection technique for outer cover, this design structure offer good heat transfer.   4. Saving energy 70% than traditional neon,and more bright.   5. IP Rate: IP65   6. Reliable and safe with DC 12V low voltage input   7. Viewing angle: 160-170°   8. 3 years warranty       Technical Parameters   SMD LED Module Specification:

Product name	5730 SMD LED Module	5730 SMD LED Module
Model no	CR-MD-5730-3	CR-MD-5730-4
LED qty	3pcs SMD 5730	4pcs SMD 5730
Materials	White ABS	White ABS
Working Voltage	12VDC	12VDC
Consumption power	1.2watt	2.2watt
Color	Red,yellow,blue,green,white	Red,yellow,blue,green,white
Product dimension	66*17.5*6.5mm	37*37*7.5mm
Waterproof rate	IP65	IP65
Lumen	70-85lm	120-140lm
Working temperature	-20℃ —— +60℃	-20℃ —— +60℃
Storage temperature	-50℃ —— +60℃	-50℃ —— +60℃
Lifespan	50,000hrs	50,000hrs
Certified	CE ,ROHS,FCC	CE ,ROHS,FCC


    Application   SMD LED Module Application:   LED module is perfect for back lighting glowing character, advertisement board, light box etc         More Details         Company Information            More Products          Rotatable COB Downlight                          UL T8 LED Tube                                       LED Panel Light                                         LED NEON Flex                                                            LED Demo Case
