2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
  • 2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty
2016 Newest led injection module 12v IP65 three years warranty

2016 Newest led injection module 12v IP65 three years warranty

Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description

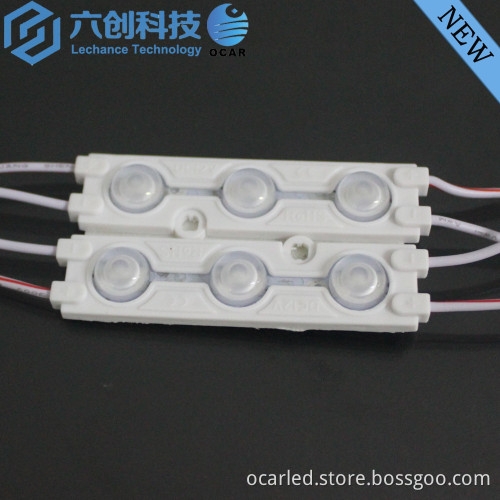

    2016 Newest led injection module 12v IP65 three years warranty     Features   What is the features of our SMD5730 LED Module?                      High Power 5730SMD LEDs With a low power consumption and high lumen value,a long life-span, maintenance free. Plastic injection technique for outer cover, this design structure offer good heat transfer. Saving energy 70% than traditional neon,and more bright. IP Rate: IP65 Reliable and safe with DC 12V low voltage input Viewing angle: 160-170° 3 years warranty     Technical Parameters    What is the specifications of our SMD5730 Module?                      Single Color LED Module  2 SMD LEDs

Part Number

Color

Dimension

LED  QTY

Voltage

Power

Waterproof

Lumen

mm

PCS

PCS

PCS





CR-MD-5730-2







Red

55*17.5*6.5

2

12

1.2W

IP65

13

Yellow

55*17.5*6.5

2

12

1.2W

IP65

13

Bule

55*17.5*6.5

2

12

1.2W

IP65

13

Green

55*17.5*6.5

2

12

1.2W

IP65

19

White

55*17.5*6.5

2

12

1.2W

IP65

50-55

Warm white

55*17.5*6.5

2

12

1.2W

IP65

45-50


      Single Color LED Module  3 SMD LEDs

Part Number

Color

Dimension

LED  QTY

Voltage

Power

Waterproof

Lumen

mm

PCS

PCS

PCS





CR-MD-5730-3







Red

66*17.5*6.5

3

12

1.2W

IP65

19

Yellow

66*17.5*6.5

3

12

1.2W

IP65

19

Bule

66*17.5*6.5

3

12

1.2W

IP65

19

Green

66*17.5*6.5

3

12

1.2W

IP65

28

White

66*17.5*6.5

3

12

1.2W

IP65

70-85

Warm white

66*17.5*6.5

3

12

1.2W

IP65

55-60


Single Color LED Module  4 SMD LEDs

Part Number

Color

Dimension

LED QTY

Voltage

Power

Waterproof

Lumen

mm

PCS

PCS

PCS

CR-MD-5730-4

Red

37*37*7.5

4

12

2.2W

IP65

25

Yellow

37*37*7.5

4

12

2.2W

IP65

25

Bule

37*37*7.5

4

12

2.2W

IP65

25

Green

37*37*7.5

4

12

2.2W

IP65

35

White

37*37*7.5

4

12

2.2W

IP65

130-140

Warm white

37*37*7.5

4

12

2.2W

IP65

100-120

      Application    What is the applications of our SMD5730 LED Module?                 These single-color LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, display case lighting, and more!            More Details                             Company Information
