Alibaba express 150cm 23w 140Lm/W Cob T8 Led Tube Lights

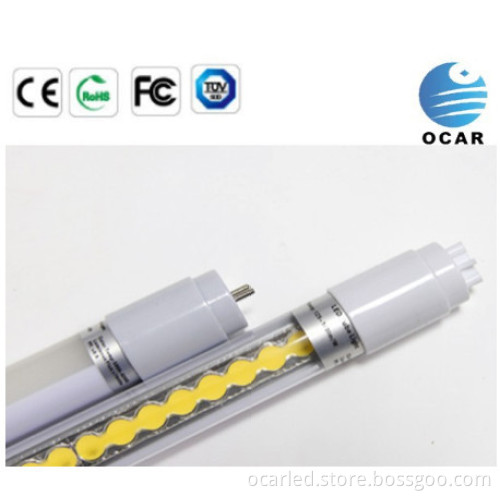

Alibaba express 150cm 23w 140Lm/W Cob T8 Led Tube Lights  COB LED Tube Feature T8 COB LED Tube Producing LED light with big COB size chip to ensure high lumen. Shell Material: Aluminum alloy + PC (Clear PC lens, Milky PC lens are available) Isolated LED driver,more safe and stable Rotatable end cap can be adjusted as the angle you like High efficiency- output (140lumen per watt): save 60% power consumption compared with the fluorescent light. No RF interference,No buzzing noise No fluorescent flickering No danger of broken glass Maintance free easy installation Low power consumption,high intensity Ideal for all energy saving applications. Three years warranty Technical Parameters T8 COB LED Tube Technical Parameters:

Item NO.	CR-T8 COB 8W	CR-T8 COB 12W	CR-T8 COB 18W	CR-T8 COB 23W
Length	600mm	1200mm	1200mm	1500mm
Wattage	8W	12W	18W	23W
Voltage	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Lumen	1000-1200Lm	1300-1530Lm	2250-2800Lm	2700-3550Lm
Efficacy	140Lm/W	140Lm/W	140Lm/W	140Lm/W
CRI	Ra>80	Ra>80	Ra>80	Ra>80
Color temperature	3000K-3500K 6000K-6500K	3000K-3500K 6000K-6500K	3000K-3500K 6000K-6500K	3000K-3500K 6000K-6500K
Certificate	CE RoHS FCC UL	CE RoHS FCC UL	CE RoHS FCC UL	CE RoHS FCC UL
Warranty	3 Years	3 Years	3 Years	3 Years

  Apply to hotels,office,shopping malls, shop windows, cafes, bars, offices, meeting rooms, exhibition halls, residential lighting etc FAQ INSTALLATION FAQ 1. Do I need to change the lamp holders? - For T12 fluorescent replacement you do NOT need to change lamp holder. Disconnect and bypass the ballast and starter , and wire the bulb directly to building electrical wires using the existing "tombstones."   2. When replacing a T8 fluorescent bulb, the lamp holder must be replaced with the included non-shunted T8 lamp holder which allows you to connect a live and neutral wire to one end of the tube. And it comes with black and white wires attached to the holders, ready for splicing to building wiring.   3.Do the tubes need ballast or starter ? - No. LED light tubes don't need ballast or starter and won't work with one. Just plan on removing and/or bypassing the ballast and starter.   4.Does these LED tubes need a separate driver (AC to DC)? - No. They use standard AC 115 volt AC power directly from building   Picture Shows Old version (T8 COB LED Tube)     New version (T8 COB LED Tube)
Installation LED Tube Installation Step 1: Remove starter and ballast before installation Step 2: To labeled end tip of LED fluorescent and turn on AC power. You can remove starter and bypass ballast in order to to have better emerge saving as below Built-in power supply wiring principle Packaging & Project UL LED Tube   Project case: Our Services   1.Reply your enquiry within 24 working hours 2.Well trained and professional sales team 3.More solution to your actual buying needs. 4.Customized design is available.OEM and ODM are welcome 5.Reliable and fast delivery   More product,
