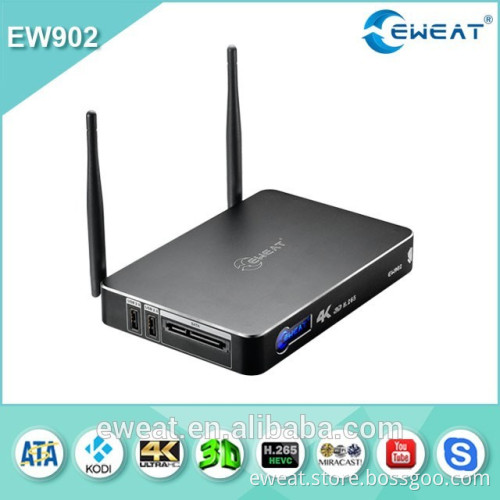

RTD1195 4K 3D media player EW902 3.5"SATA port gigabit ethernet android 4.4 kitkat tv box android

Hardware

Processor

Realtek 1195 chipset 3800 DMIPS ARM Cortex A9

Freq

1.5GHz

RAM

1GB DDR3

Storage

8GB EMMC

Interface

Video Output

HDMI v1.4

Wireless

802.11 b/g/n

LAN

10/100M/1000 Ethernet

Composite Audio /Video

AV output

Component

YPbPr output

Optical

Optical output

HDMI INPUT

HDMI input

HDMI output

HDMI output

USB 3.0

USB 3.0 host

USB2.0

USB 2.0 host x 2

SATA

SATA port

SD/MMC/MS 3-in-1 card reader

Power

12V 2A power adaptor

Android system

Android Version

Android 4.4 Kitkat

File System

Fat16 / Fat32 / exFAT/NTFS/HFS+/Samba/ext2/3

Menu Language

English/German/Spanish/France/Italia/Nederland/Poland/Russia/Korean/Japanese/Simplified Chinese/Chinese-traditional

System Upgrade

Upgrade from USB disk

Video Streaming

HTTP,RTSP

Media

Video Container

• RM/RMVB
• MPEG1/2/4 Elementary (M1V, M2V, M4V)
• MPEG1/2 PS (M2P, MPG)
• MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
• VOB
• AVI, ASF, WMV
• Matroska (MKV)
• MOV (H.264), MP4, RMP4
• IFO
• DVD-ISO,BD-ISO
• MINI BD,BD-9,BD25,RBD,D5,D9,DVD,CD
• FLV
• swf/(.swf) *
• 3GP/.3gp
• AVS/(.avs)
• 3D Bluray(DISC/ISO) or Single-File(*.ts/*.m2ts)

Video Decode

• MPEG1,VCD1.0/2.0,SVCD( up to1920*1080@30P/60I or 1280*720@60P)
• HD MPEG2 MP/HL,ISO,IFO,VOB,TS(up to1920*1080@30P/60I or 1280*720@60P)
• HD MPEG4 SP/ASP,Xvid(up to1920*1080@30P/60I or 1280*720@60P)
• H.264 BP&L3,MP&L4.1,HP &L4.1 (up to 1920*1080@30P/60I or 1280*720@60P)
• WMV9,VC-1 AP&L3( up to 1920*1080@30P/60I or 1280*720@60P)
• DivX3/4/5( up to1920*1080@30P/60I or 1280*720@60P)
• XVID SD/HD( up to 1920*1080@30P/60I or 1280*720@60P)
• RM/RMVB 8/9/10( up to 1280*720@30P)
• AVS: Jizhum profile & level 2.0/ 4.0/ 4.2/   6.0/ 6.2

Audio Container

• AAC, M4A
• MPEG audio (MP1, MP2, MP3, MPA)
• WAV
• OGG
• APE
• FLAC
• MKA
• WMA (WMA   PRO)

Audio Decode

• MPEGⅠLayer 1/2/3(2-CH) and MPEGⅡ1/2(Multi-Channel)
• LPCM,ADPCM,FLAC,AAC,WAV,OGG
• DTS digital+stereo
• Dolby Digital
• RA1/RA-cook/RA-Lossless

Picture Formats

JPEG ,BMP, PNG, GIF, TIFF, jps(3D), mpo(3D)

Subtitle Formats

• MicroDVD [.sub],
• SubRip [.srt],
• Sub Station Alpha [.ssa],
• Sami [.smi]
• idx+sub
• PGS embedded subtitle

Subtitle Language

• Standard version: simplified Chinese, traditional Chinese, Turkish, Greek, Hebrew, Czech, SE European, Central European, Cyrillic, Western, UTF8

Menu Language

• Standard version: simplified Chinese, traditional Chinese, English, Russian, Spanish, Czech, Dutch, Italian, French, German, Turkish, Hebrew

HDD format

• Support FAT32, NTFS, EXT3, HFS

Case

Material & Craft

Aluminum case

Color

Black

Unit Dimension

170x 115x24.5MM

Unit Weight

1kg

Accessories

IR remote control

×1pcs(Optional: 2.4G air mouse)

HDMI cable

×1pcs

AV cable

×1pcs

Power adaptor

×1pcs

SATA cable

×1pcs

Warranty Card

×1pcs

Quick Install Guide

×1pcs

Others

Certification

RoHS,CE,FCC

Operating Temperature

0~70°C

Storage Humidity

30%~70%

Storage Temperature
