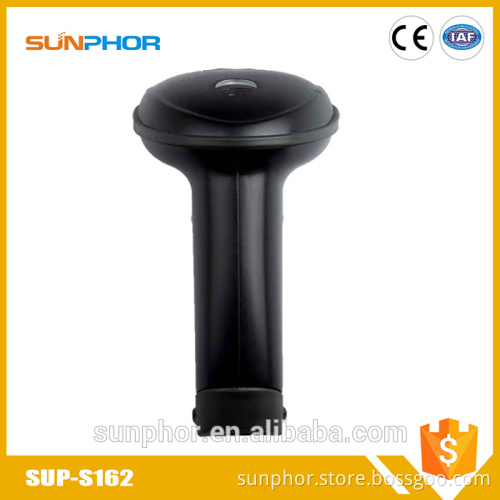

Double Single line Scanner high speed barcode scanner

Double Single line Scanner high speed barcode scanner                    Product Description

Physical Characteristics
Dimensions	16.5 cm* 6.3 cm* 8.7cm
Net weight	129g
Material	ABS+PC
Voltage	5 V +/- 10%
Current	110mA , idle 10mA
Color	white, gray, black
Performance Characteristics
Scanner type	bi-directional
Light source	650nm Visible laser diode
Optional	2D, bluetooth, stand
Scanning Rate	200 scans per second-be improve
Scanning distance	2.5mm-600mm
Scanning scope	18cm
Print contrast	25% minimum reflective difference
Roll(tilt)	+/- 30degrees
Pitch	+/- 45 degrees
Skew(yaw)	+/- 60 degrees
DecodeCapability	UPC/EAN,UPC/EANwithsupplementals
	Code128,UCC/EAN128,Code39Code39FullASCII,
	Code128,UCC/EAN128,Code39Code39FullASCII,
	Code128FullASCII,Codabar,Interleaved2of5,Code93,
	MSI,Code11,ISBN,ISSN,china post code, etc
Bit error rate	1/20million-be improve
Resolution	3.3mil(32 bit)
Tip	buzzer and led
Scanning mode	Press button, Automatic continuous scan Auto-induction
Working times of button	one million times
Working hours of laser	10000hours
Interfaces supported	RS232,keyboard wedge, USB
Cable length	2M
User Environment
Working temperature	0°C-45°C/32°F-104°F
Storage temperature	-400°C-60°C/-40°F-140°F
Relative humidity	5%-95%(Non-condensing)
Anti-shock design	withstand 1.5M drops
Ambient light immunity	immune to direct exposure of normal office and factory lighting conditions,  As well as direct exposure to sunlight.
Regulatory
Electrostatic discharge	certified to ±15KV air discharge and ±8KV of contact discharge
EMI/RFI	FCC Part 15 Class B,European Union EMC Directive,Taiwan EMC,CE
Laser safety	CDRH Class II,IEC Class 2
Environmental protection	certified toRoHS directive 2002/95/EEC
Standard Configuration:Manual,Product Certification,Stand(optional),USB Cable
