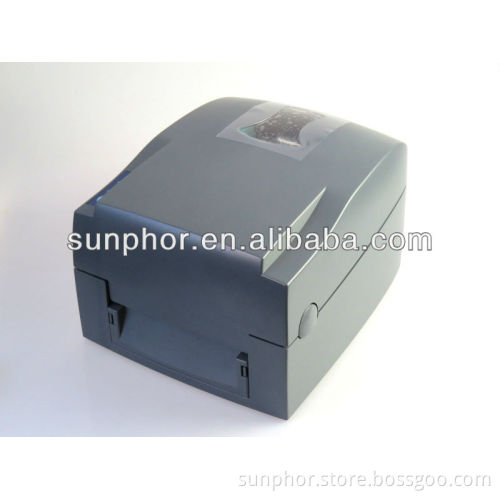

barcode thermal printer mechanism SUP-LP110A supports Direct thermal and Thermal transfer

Specifications 1. 110mm barcode thermal printer mechanism

2.Direct thermal &Thermal transfer

3.supports 1D &2D barcodes

Parameter Details:

Name	barcode thermal printer mechanism
Model	SUP-LP110A
Processor	32 bit RISC CPU
Meomry	SDRAM: 16M,FLASH: 8MB Flash (4 MB for user storage)
Sensor Type	Adjustable reflective sensor 2 fixed transmissive sensors,central aligned
Code pages	Codepage 437,850,851,852,855,857,860,861,862,863,865,866,869,737 Windows 1250,1251,1252,1253,1254,1255,1257 Unicode(UTF8,UTF16)
Control Panel	Two bi-color status-LEDs:Ready,status Control key:FEED
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Power	Auto Switching 100-240VAC,50-60Hz
Printer Language	EZPL,GEPL,GZPL auto switch
Agency Approvals	CE(EMS),FCC Class A ,CB,CCC
Interfaces choice	USB2.0 or Parallel or Serial or Ethernet
Printing	Printing Method	Thermal Transfer/Direct Thermal
	Printing Speed	5 IPS (127mm/s)
	Printing Resolution	203dpi(8dots/mm)
	Label paper width	4.25'' (108mm)
	Label roll diameter	110mm
Ribbon	Types	Wax,Wax/resin,resin
	Length	981'(300m)
	Width	Min.1.18''(30mm)-Max.4.33''(110mm)
	Core Diameter	1'' (25.4mm)
	Ribbon Roll Diameter	2.67''(68mm)
Media	Types	Continuous form,gap labels,black mark sening,and punched hole; label length set by auto sensing or programming.
	Thickness	Min. 0.003''(0.06mm) -Max. 0.01'' (0.25mm)
	Width	1'' (25.4mm) Min.-4.64''(118mm)Max.
	Label Roll Diameter	Max.5'' (127mm)
	Core Diameter	1''(25.4mm),1.5''(38.1mm),3''(76.2mm)
Barcodes	1-D Bar Codes	Code 39,Code 93,EAN 8/13(add on 2&5),UPC A/E(add on 2&5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars,Codabar,Code 128(subset A,B,C),EAN128,RPS128,CUU128,CUU/EAN-128K-Mart,Random Weight, Post NET,ITF14,Chian Postal Code, HIBC,MSI,Plessey,Telepen,FIM and GSI Databar
	2-D Bar Codes	PDF417,Datamatrix code,MaxiCode,QR code,Micro PDF417,Micro QR code and Aztec code
Software	Label Design Software	Golabel (for EZPL only)
	DLL	Windows2000,XP and Vista
	Driver	Windows2000,XP,Vista,7 and Windows Server 2003 & 2008
Resident Fonts	Bitmap Fonts	6,8,10,12,14,18,24,30,16x26 and OCR A&B Bitmap fonts 90°,180°,270°,rotatable ,single characters90°,180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions
	Scalable Fonts	90°,180°,270° rotatable
Download Fonts	Asian Fonts	90°,180°,270° rotatable and 8 times expandable in horizontal and vertical directions
	Bitmap Fonts	90°,180°,270° rotatable,single characters 90°,180°,270° rotatable
	Scalable Fonts	90°,180°,270° rotatable
Enviroment	Operating Conditions	Temperature:5°C to 40°C Humidity: 30%-85% RH (without condensation)
	Storage Conditions	Temperature:-20°C to 50°C Humidity: 10%-90% RH (without condensation)
Size	Dimensions	285*226*171mm
	Weight	2.72KG

                                       Quality Control and market-----------------------------------------------------------------------------------------------------   1.  Certifications:
ISO9001,ISO1004, CE, FCC, ROHS,CB,CCC   2.  QC Staff:
12 QC employees with more 5 years experience will guard our products quality before goods are sending out. Meanwhile our 10 engineers is ready to provide momentarily the most professional technology and customization for you. That is why we always stay ahead of the competitors.   3.  Material:
Main parts imported from Japan,with high reliability and long life.     4.  Market
USA, Canada, Bolivia,Ecudor, Colombia, Argentina, Brazil, Chile, Russia, Australia,China,Romania,France,Germany,Ghana,Morocco,South Africa,Argeria,Vietnam,Philippines,Thailand   5.   Customers Parts of Examples Russia:800-1000pcs SUP80230C pos printers every month,200 pcs SUP-LP110A  barcode printers every month.
Mongolia:120pcs SUP80230C pos printer every month,20pcs Spos502 pos machine every month
USA:1200pcs SUP58M1 mini thermal printer every month
U.K:200pcs SUP58M1 bluetooth printer every month.
Romania:200-280 pcs thermal printers and 50pcs POS machine and 100pcs label printer every month. Vietnam:100pcs printers and 20 pcs POS machine every month. Iran:200pcs printers and 50pcs POS machine every month.      Payment:  ----------------------------------------------------------------------------------------------------------------------------    Payment for sample: 100% T.T IN ADVANCE / Paypal / Western Union / Money Gram                             Payment for large quantity: T/T or L/C at sight (30% deposits, balance before delivery)       Shipping:  ----------------------------------------------------------------------------------------------------------------------------   By DHL/ FEDEX/ UPS/ TNT/ AIR/ SEA ,etc.any way according to your convenience       Warranty and Services:  ---------------------------------------------------------------------------------------------------------   Provide ODM or OEM services, if purchased from sunphor, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a period of 2 years (24 months) from the date of original purchase. 1) During the warranty period, should your SUNPHOR product prove to be defective, free to call or email us for warranty repair instructions.   2) We have service technician provide telephone or email diagnostic service to you. Customer's satifactory is our permanent principle.   3) Regarding to the defective product, we will exchange the spare parts without charge for parts or labor. And the broken product or spare parts don’t need to be sent back to us, we will send new ones with your next order.
