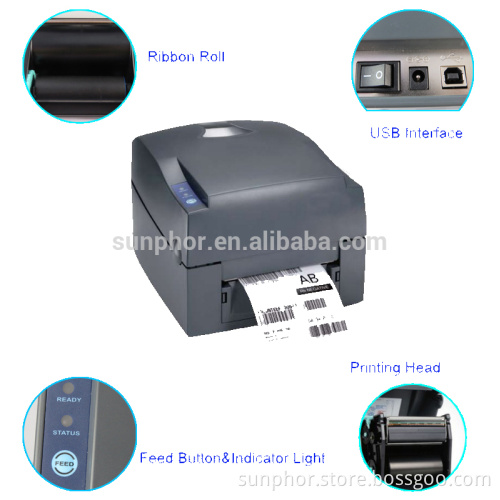

Transfer Thermal Barcode Label Printer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Transfer Thermal Barcode Label Printer Product Description

Processor	32 bit RISC CPU
Memory	FLASH: 8MB Flash (4 MB for user storage) SDRAM: 16M
Sensor Type	Adjustable reflective sensor 2 fixed transmissive sensors,central aligned
Control Panel	Two bi-color status-LEDs:Ready,status Control key:FEED
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Power	Auto Switching 100-240VAC,50-60Hz
Printer Language	EZPL,GEPL,GZPL auto switch
Interfaces choice	USB2.0
Printing	Printing Method	Thermal Transfer/Direct Thermal
	Printing Speed	5 IPS (127mm/s)
	Printing Resolution	203dpi(8dots/mm)
	Label paper width	4.25'' (108mm)
	Print Length	Mini.0.16''(4mm), Max.68''(1727mm)
Media	Types	Continuous form,gap labels,black mark sening,and punched hole; label length set by auto sensing or programming.
	Width	1'' (25.4mm) Min.-4.64''(118mm)Max.
	Thickness	Min. 0.003''(0.06mm) -Max. 0.01'' (0.25mm)
	Label Roll Diameter	Max.5'' (127mm)
	Core Diameter	1''(25.4mm),1.5''(38.1mm),3''(76.2mm)
Ribbon	Types	Wax,Wax/resin,resin
	Length	981'(300m)
	Width	Min.1.18''(30mm)-Max.4.33''(110mm)
	Core Diameter	1'' (25.4mm)
	Ribbon Roll Diameter	2.67''(68mm)
Barcodes	1-D Bar Codes	Code 39,Code 93,EAN 8/13(add on 2&5),UPC A/E(add on 2&5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars,Codabar,Code 128(subset A,B,C),EAN128,RPS128,CUU128,CUU/EAN-128K-Mart,Random Weight, Post NET,ITF14,Chian Postal Code, HIBC,MSI,Plessey,Telepen,FIM and GSI Databar
Barcodes	2-D Bar Codes	PDF417,Datamatrix code,MaxiCode,QR code,Micro PDF417,Micro QR code and Aztec code
Code pages	Codepage 437,850,851,852,855,857,860,861,862,863,865,866,869,737 Windows 1250,1251,1252,1253,1254,1255,1257 Unicode(UTF8,UTF16)
Software	Label Design Software	Golabel (for EZPL only)
	DLL	Windows2000,XP and Vista
	Driver	Windows2000,XP,Vista,7 and Windows Server 2003 & 2008
Resident Fonts	Bitmap Fonts	6,8,10,12,14,18,24,30,16x26 and OCR A&B Bitmap fonts 90°,180°,270°,rotatable ,single characters90°,180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions
Resident Fonts	Scalable Fonts	90°,180°,270° rotatable
Download Fonts	Asian Fonts	90°,180°,270° rotatable and 8 times expandable in horizontal and vertical directions
	Bitmap Fonts	90°,180°,270° rotatable,single characters 90°,180°,270° rotatable
	Scalable Fonts	90°,180°,270° rotatable
Enviroment	Operating Conditions	Temperature:5°C to 40°C Humidity: 30%-85% RH (without condensation)
Enviroment	Storage Conditions	Temperature:-20°C to 50°C Humidity: 10%-90% RH (without condensation)
Agency Approvals	CE(EMS),FCC Class A ,CB,CCC
Size	Dimensions	285226171mm
Size	Weight	2.72KG
