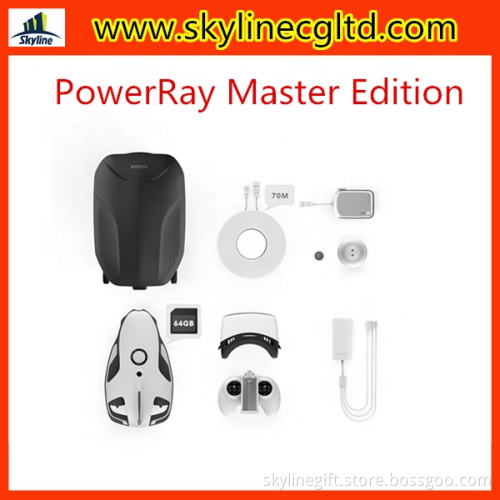

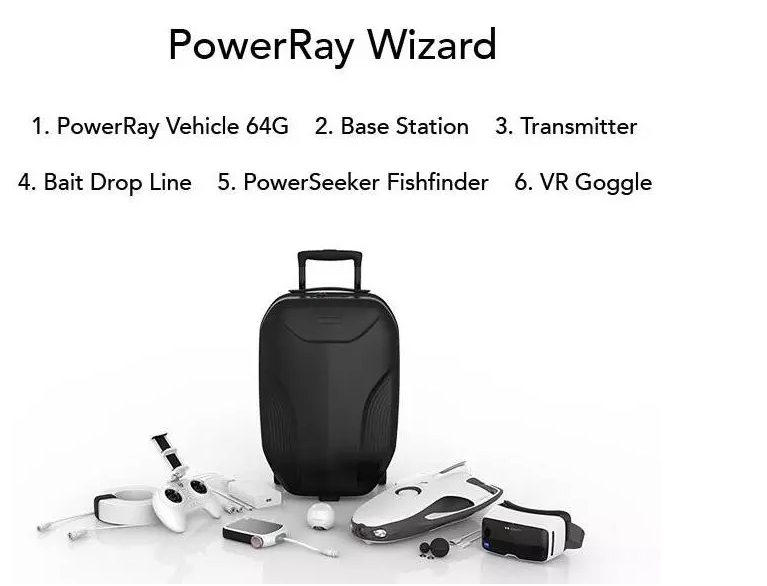

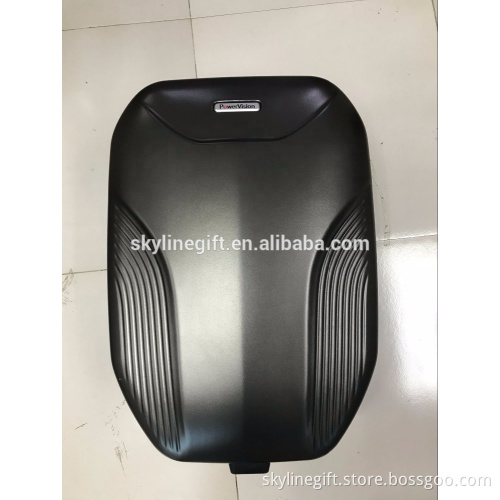

PowerRay Wizard Underwater Robot Underwater Drone Master Edition under sea find fish

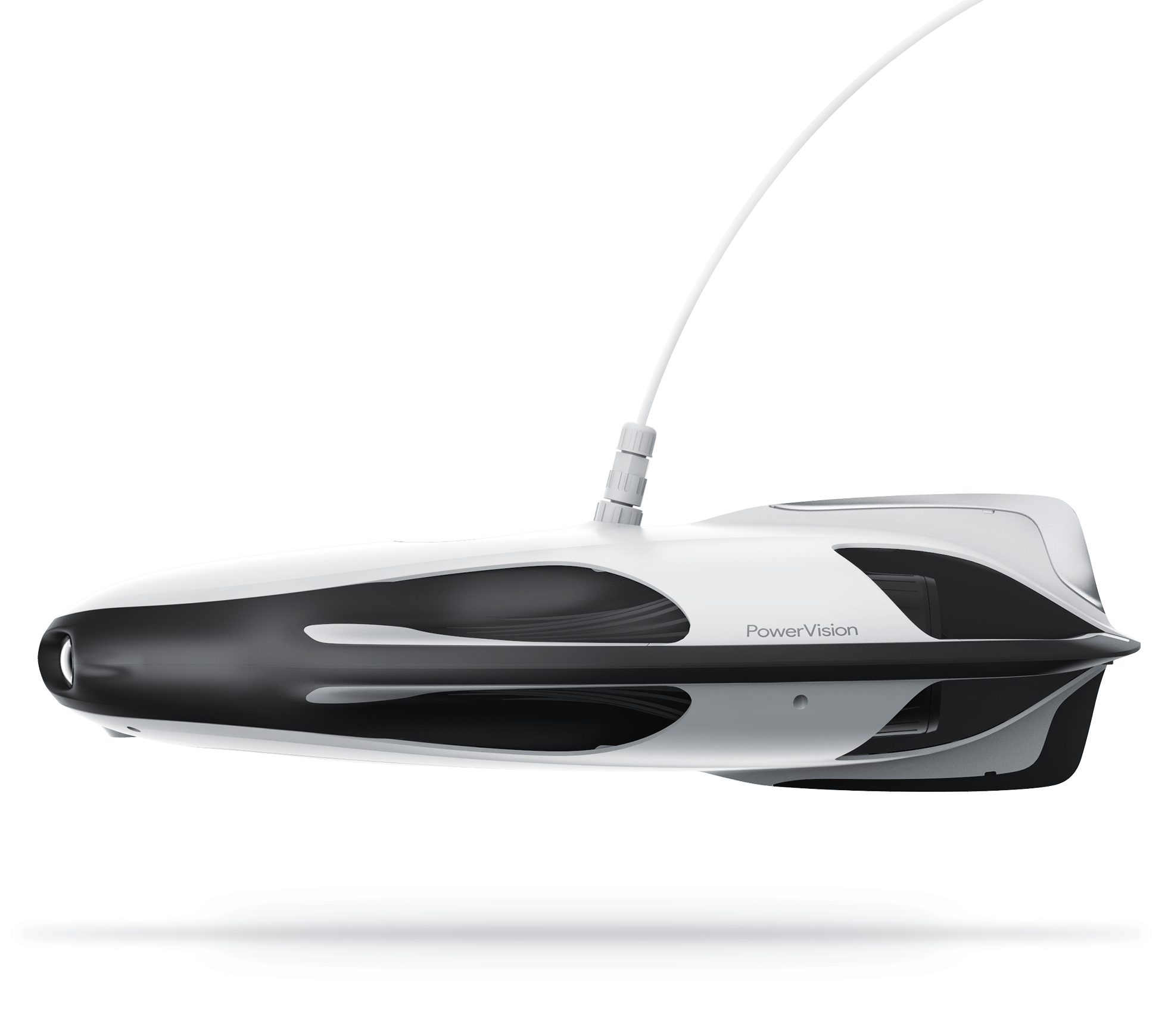

PowerRay

Dimensions465x270x126mm

Weight~3.8kg (In air)

Operating Temperature32° ~104° F (0~40℃)

Depth Capacity30m

Depth Accuracy±10cm

Max Cruise Speed3Kn(1.5m/s)(Still water)

Max Sailing Time4h (Still water,light use)
1.5h(Still water,L speed mode cruise)
0.5h(Still water,H speed mode racing)

Charging Time≤2.5h

Thruster Configuration3 thrusters (2 horizontal ,1 vertical)

Battery94.72Wh(14.8V 6400mAh) LiPo

Battery Cycle Time≥100

Camera

LensFOV 95°(In air) F2.8

Sensor1/2.3 inch CMOS,Effective pixels:12M

Image Size12M: 4000x3000 4:3 (default)
8M: 3840x2160 16:9
5M: 2560x1920 4:3

Video Resolution4K: 3840x2160 25fps (default)
1440P:2560x1440 50fps
FHD:1920x1080 30/60fps

ISOAuto / 100 / 200 / 400 / 800 / 1600

Burst Shooting1/3/5 frames

Storage32G/64G

Lights

Power3Wx2

Brightness450 lumens(with dimming control)

Color Temperature6500K

Live View

Live View Quality720P 25fps/1080P 30fps

Max Transmission Distance≥10m

Operating Frequency2.4~2.483GHz

EIRP≤20dbm

Latency≤300ms

Fishfinder

Operating Frequency125KHz

Track Angle30°

Track Depth0.6-40m

Operating Temperature0~40℃

WirelessWIFI 2.4~2.483GHz

EIRP≤20dbm

Wi-Fi range90m

Resolution0.1m

Operating Time≥2h

Charging Time≤3h

Contact:

Remote Controller

Operating Frequency2.4~2.483GHz

EIRP≤20dbm

Max Transmission Distance10m

Battery3000mAh LiPo 1S

Operating Time≥20h

Charging Time≤3.5h

Operating Temperature0~40℃

Supported Mobile Device Sizelength: 41~175mm

Base Sation

Operating Frequency2.4~2.483GHz

EIRP≤20dbm

Battery3000mAh LiPo 1S

Operating Time≥3h

Charging Time≤2.5h

Communication Cable

Diameter4.2mm

Length50m/70m

Working Strength30kg

Charger

InputAC100-240V 50/60Hz 1.6A

Output116.8V/4.5A(M16 waterproof connector)

Output25.0V/2.0A(M12 waterproof connector)

Output35.0V/2.0A(Micro USB)

Output45.0V/0.2A(USB)

Bait Drop

Weight8g

Supported Weight≤120g(in the water)

VR Goggle

FOV100°

IPD53~77mm

Supported Mobile Device Size4.7'~5.5'

Wear Glasssupport

APP

iOSiOS 8.0 or later

AndroidAndroid 4.2 or later

Supported Mobile Device
