High-resolution Dual Camera

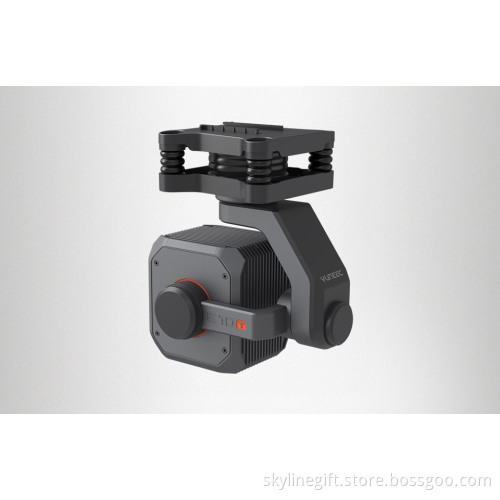

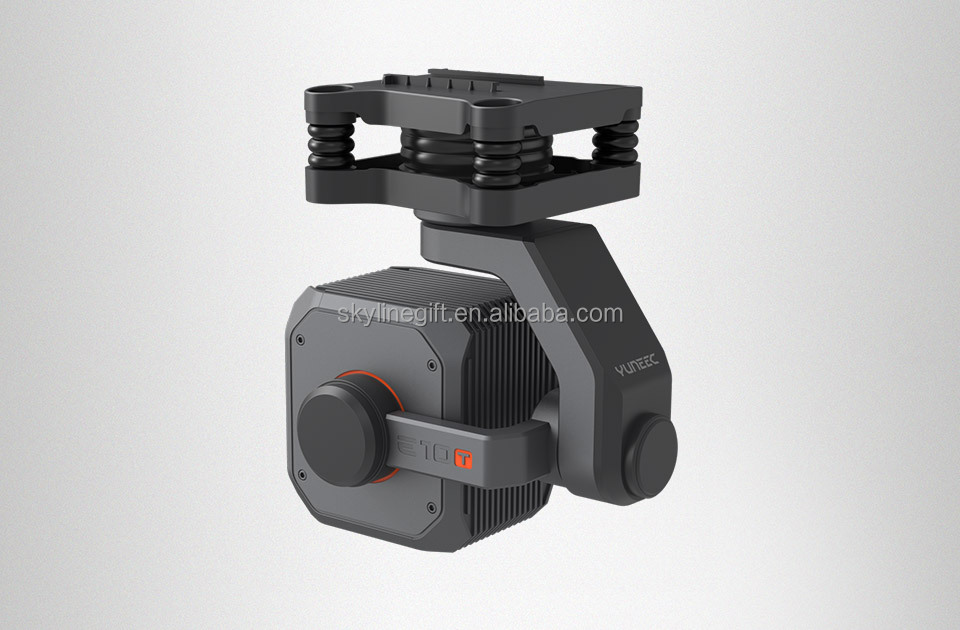

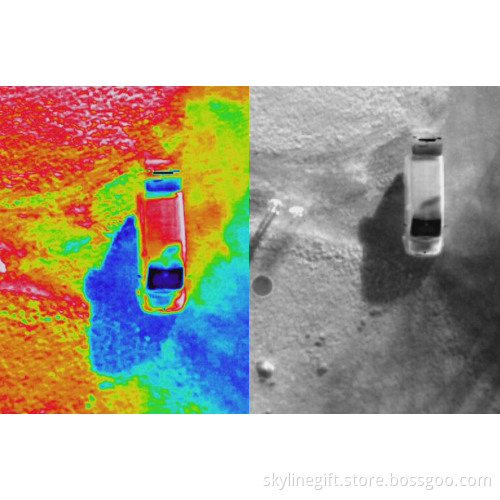

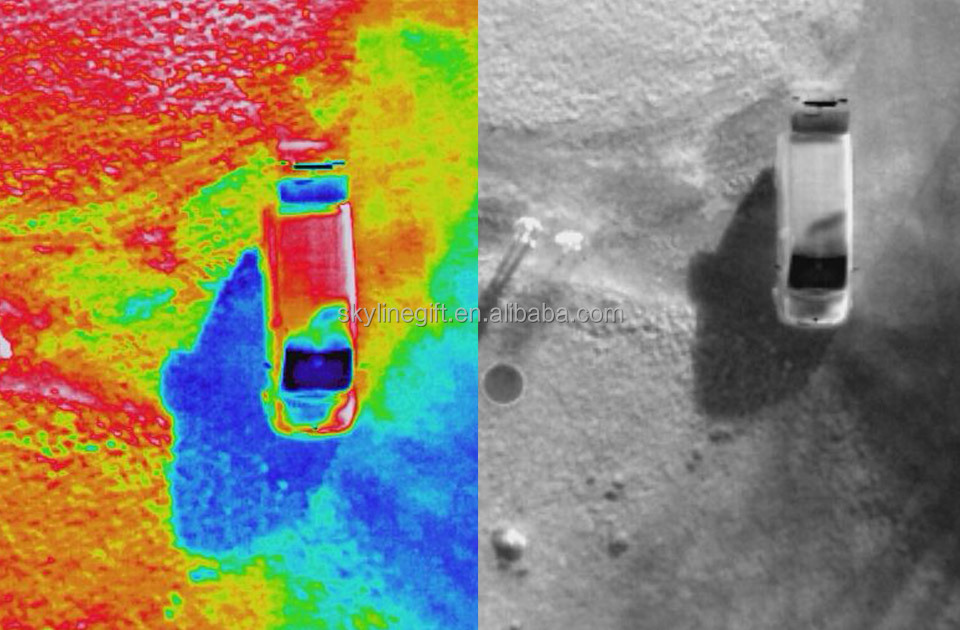

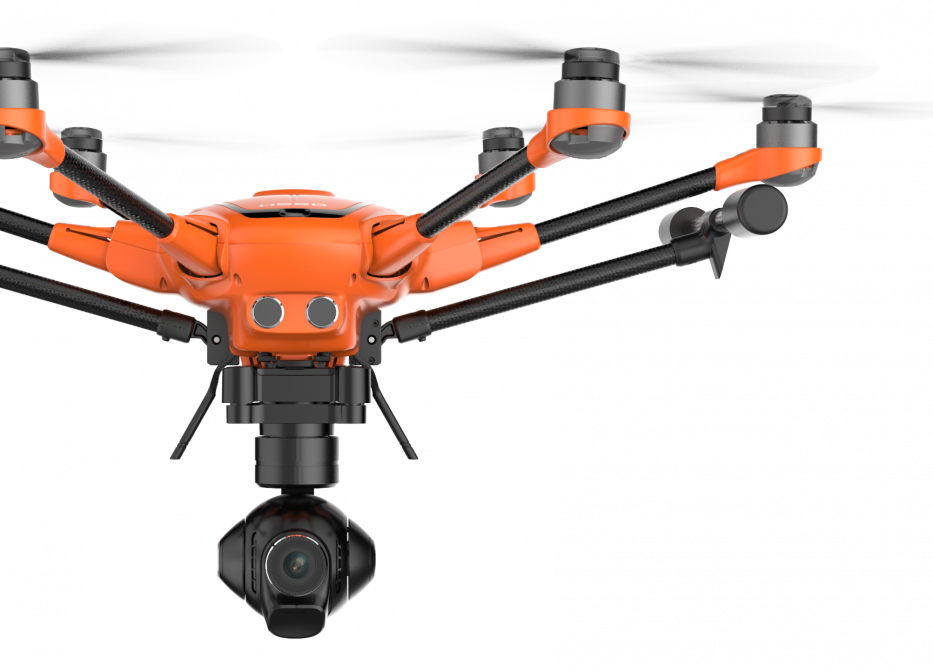

The E10T/X with FLIR® boson sensor for the H520 Hexacopter is a stabilised 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E10T/X is available with a 320*256-pixel or as E10Tv/X with a 640*512 thermal imaging resolution. The E10T/X takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream, you can stream the thermal and residual light image simultaneously to the remote control and then look at the image as an overlay or picture-in-picture. Furthermore, the E10T supports commercial applications such as mission planning.
E10T and E10Tv are for use with the H520, the E10TX and E10TvX are for use with the H520E or H520E-RTK.

Your benefits at a glance

Designed for professional, commercial and governmental requirements

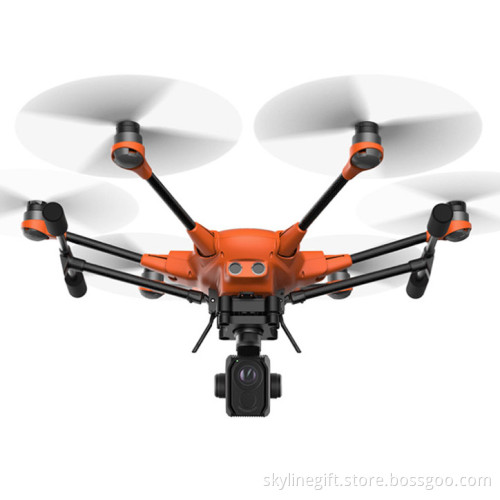

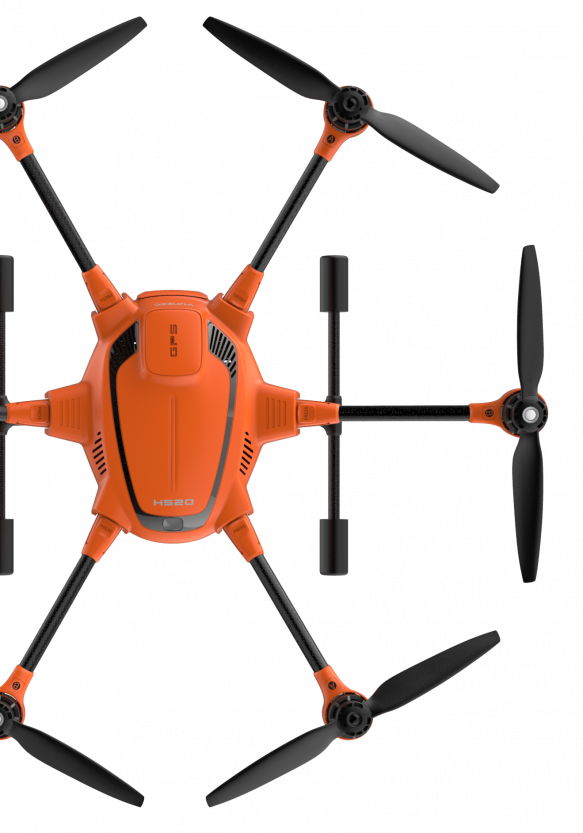

6 rotors for high safety and redundancy as well as high stability and precision even while experiencing wind and turbulence

Take-off weight with all available camera systems below 2 kg

Team Mode allows you to independently control copter and camera via two remote control systems

Reliable position determination by evaluating GPS, Glonass and Galileo satellites

High-precision, low-interference compass

Return Home / Return to Controller

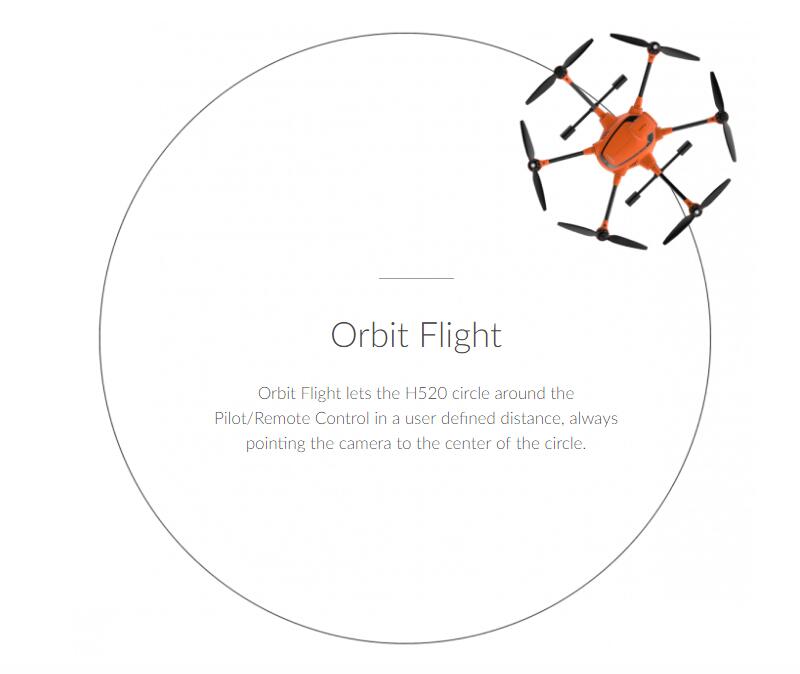

Orbit Flight

With terrain follow, the H520 adjusts its flying height in correspondence to the map’s height data

Good visibility due to bright orange paint

Video downlink encryption according to the WPA2 standard with a dynamic password

No data transfer to an external server

Software is based on solid PX4 code

Intelligent sonar collision avoidance for safe and stress-free flying

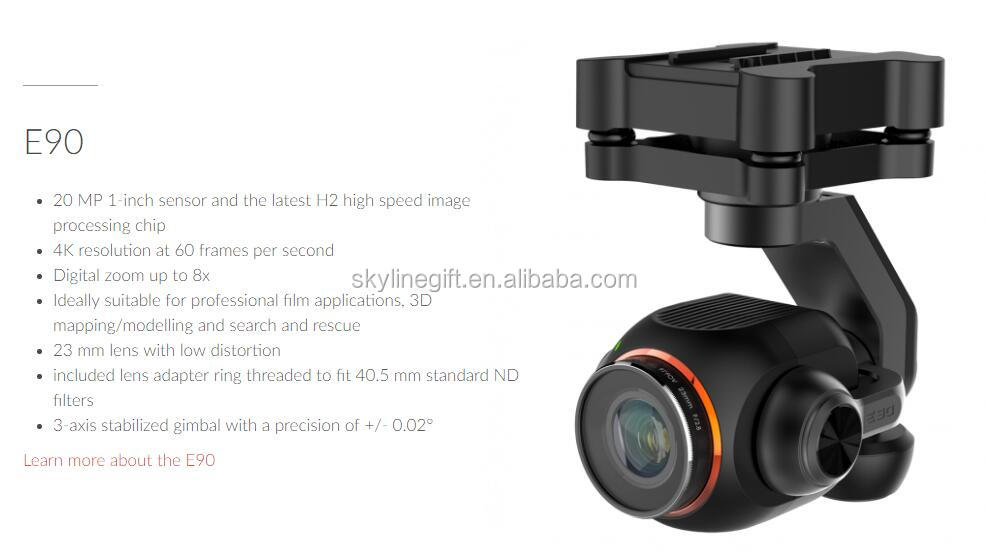

Energy efficient and quiet with a flight time of up to 28 minutes / 25 minutes with CGOET/E90

ST16S with an integrated 7” touch display, voice output and multilingual comprehensive DataPilot™ software

HDMI signal directly from the ST16S to output the drone’s live image onto larger monitors

Mission planning on the computer or on the ST16S, offline maps available, creation of own maps possible

Waypoint and survey missions, including cross-wise flights, suitable for construction surveying, perimeter security, accident reconstruction, 3D scans, orthomaps, area inspections and S&R tasks

2D/3D mapping

DataPilot™ automatically generates the flight route when an area to be scanned is specified, including a possible battery change.

Definition of resolution over inches per pixel or altitude

Missions can be saved for any repetition of the same flight route (e.g., for tracking shots)

SDK available: third-party software and adaptation to your own application are possible.

Lower space requirement and short set-up time

Retractable landing gear and 360 degree endlessly rotatable camera gimbal for precise alignment or a permanent all-round view, even during tethering

Hot-swappable camera/gimbal systems

Commercial aerial solution

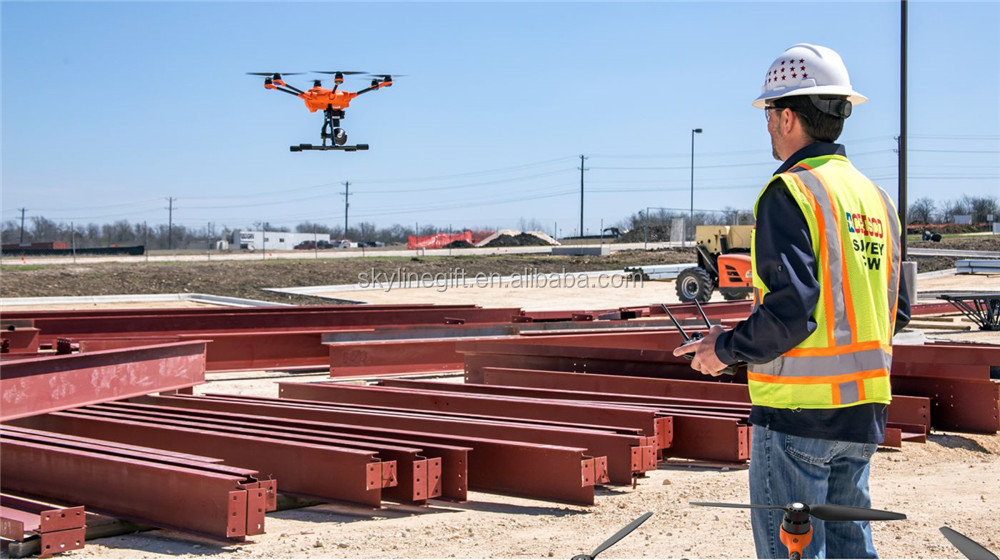

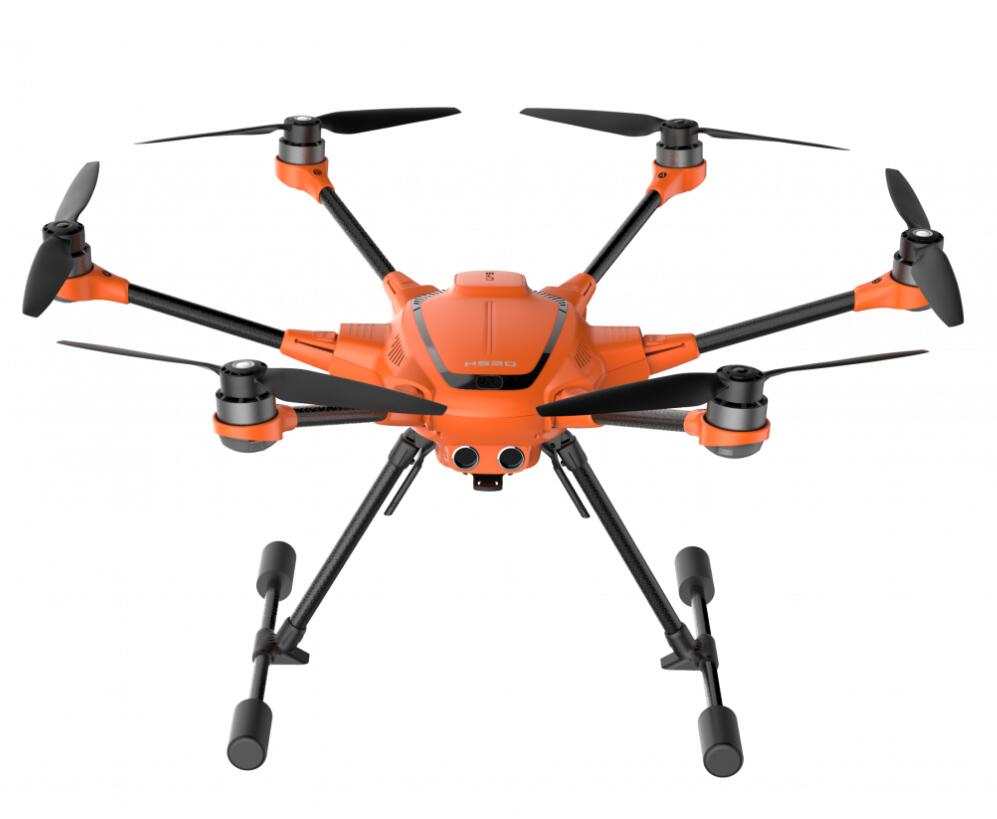

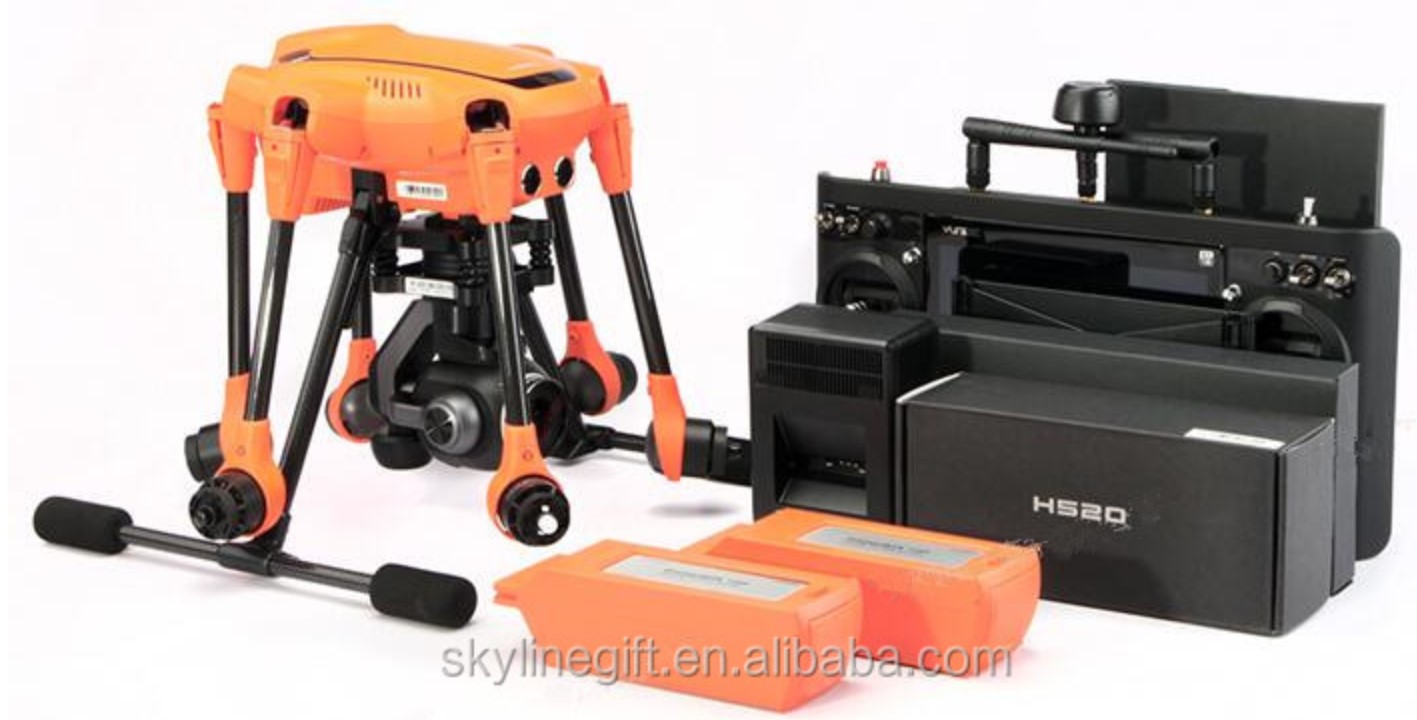

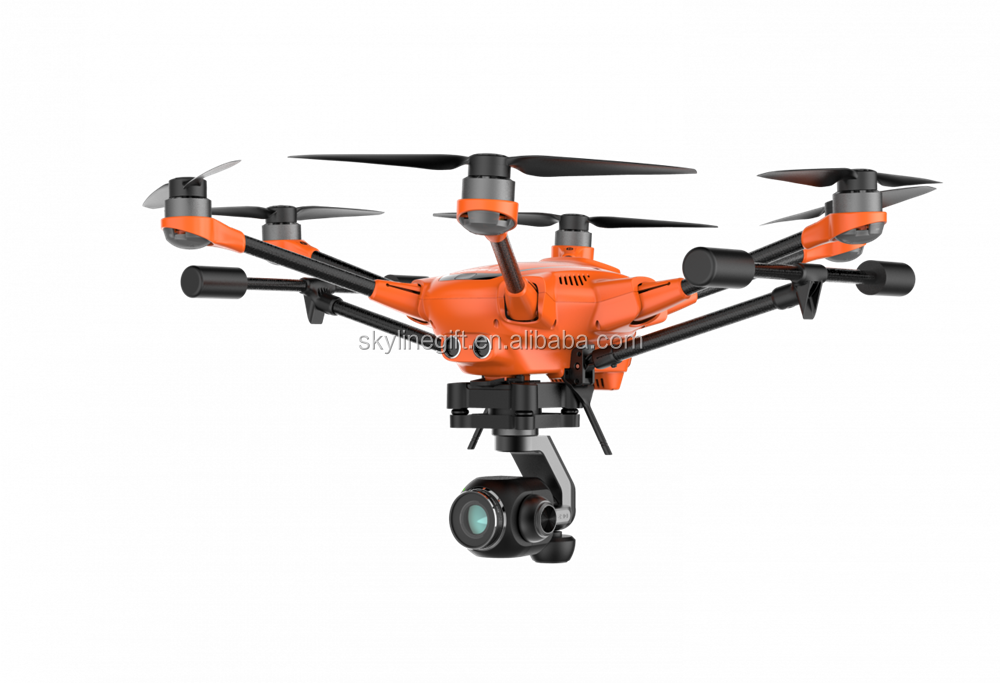

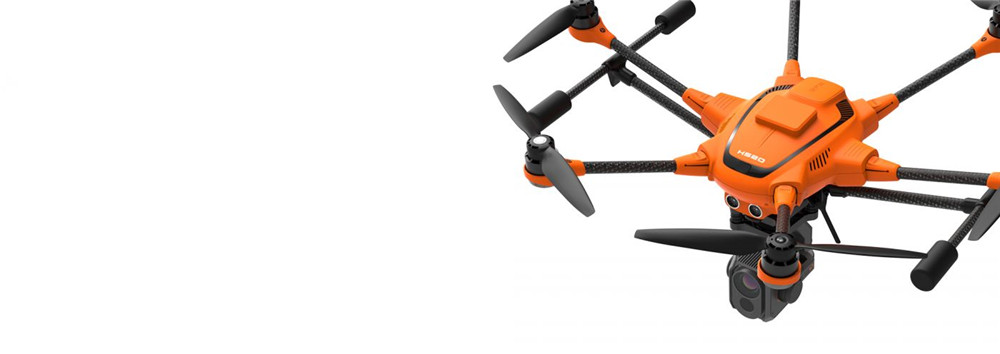

The H520 system utilizes Yuneec’s proven six-rotor platform and incorporates enterprise-grade cameras and mission planning software for high-end commercial use. The sUAS is the perfect solution for long flight times and a proven and robust technology in an all-in-one package. The H520 is built for inspection, law enforcement, security, construction, surveying, and mapping applications in addition to offering cinematic imaging payload systems.

Built for industrial use and ambitious professionals

The H520 is designed with the inspection industry in mind with six-rotor systems that allow for stable, precise flight, long focal-length lenses that allow the sUAS to fly at greater distance from an object and data storage that may be shared instantly from the ST16S Ground Station or delivered directly in 4K/2K/HD video or 20Mp still images.

Reliable, stable and precise

Even in high-wind environments, the Yuneec H520 sUAS system is able to hold position, allowing the solution to fly even when a manned inspection would be deemed unsafe. Exclusive flight speed control offers slowest speed above stall flight for maximum precision in challenging environments. H520’s landing gear retracts out of the way to give you a full, 360° view of the world to capture important data in the field. Also Commercial, comprehensive service packages are available separately.

No transfer to remote servers

Your data belongs to you. The H520 Hexacopter and the ST16S remote control communicate directly, so there is no involuntary data transfer to servers in China, Germany or anywhere else in the world. Neither flight data nor images, videos or logfiles are forwarded to external servers and remain in your possession. Thus, your data is optimally protected.

Hot-swap payload options

All of our H520 cameras are hot swap-capable on our sUAS platforms, allowing for significant time-savings through not requiring a power-down/restart of the UAS system. This also allows for consistency of data-storage, rather than using multiple storage devices and locations.  Whether it’s thermal imaging, long focal length, or wide focal-length data capture, memory cards may be swapped from device to device.
