DJI Mavic mini drone 4 km HD Video 3 Axis Gimbal 2.7K Camera 30 min Max Flight Time

SPECS

MAVIC MINI

Aircraft

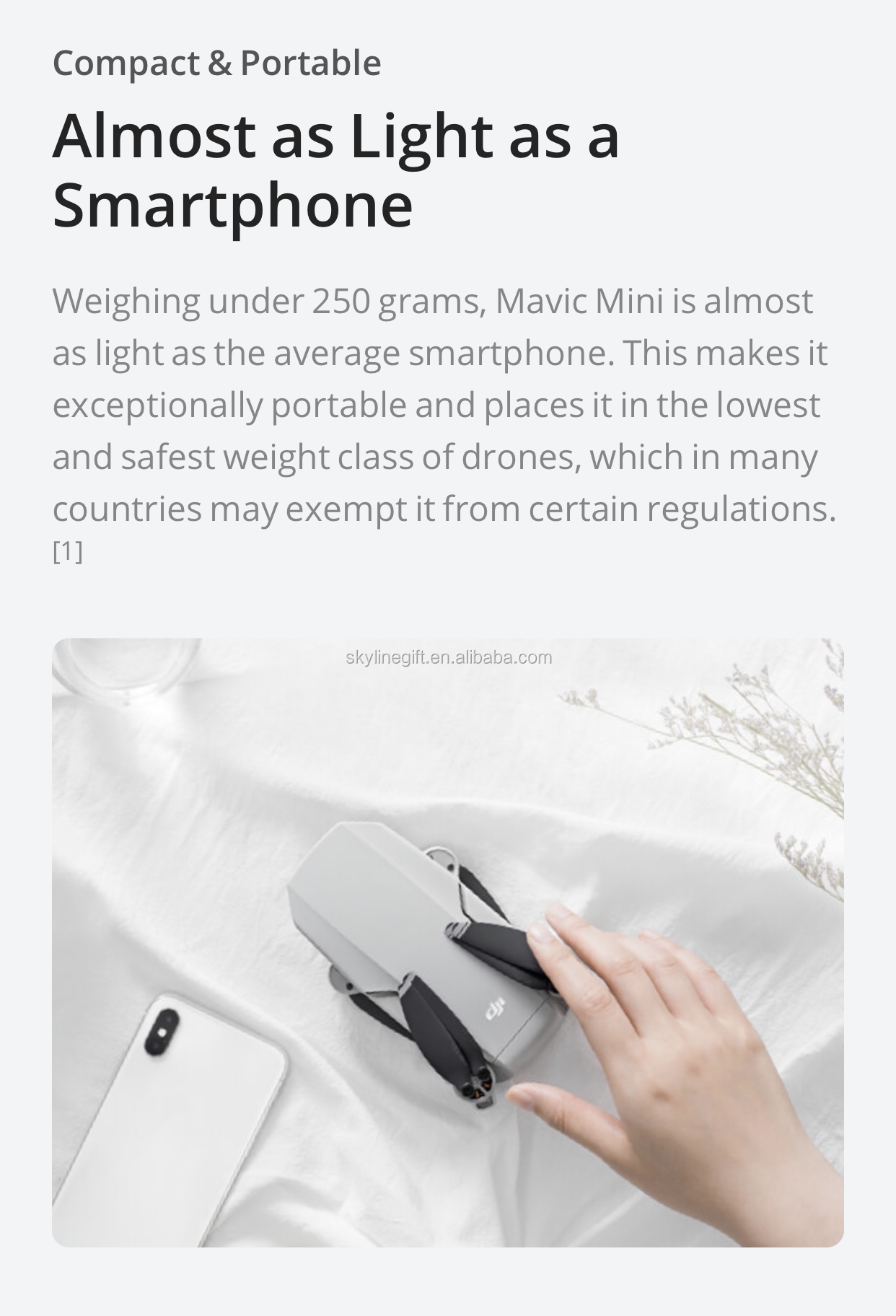

Takeoff Weight: 249 g
Dimensions:
Folded: 140×82×57 mm (L×W×H)
Unfolded: 160×202×55 mm (L×W×H)
Unfolded (with propellers): 245×290×55 mm (L×W×H)
Diagonal Distance: 213 mm
Max Ascent Speed:
4 m/s (S Mode)
2 m/s (P Mode)
1.5 m/s (C Mode)

Max Descent Speed:
3 m/s (S Mode)
1.8 m/s (P Mode)
1 m/s (C Mode)

Max Speed (near sea level, no wind):
13 m/s (S Mode)
8 m/s (P Mode)
4 m/s (C Mode)

Max Service Ceiling Above Sea Level: 3000 m

Max Flight Time:
30 minutes (measured while flying at 14 kph in windless conditions)

Max Wind Speed Resistance:
8 m/s (Scale 4)
Max Tilt Angle
30° (S Mode)
20° (P Mode)
20° (C Mode)

Max Angular Velocity:
150°/s (S Mode)
130°/s (P Mode)
30°/s (C Mode)

Operating Temperature Range: 0° to 40°C (32° to 104°F)

Operating Frequency:
Model MT1SS5: 5.725-5.850 GHz
Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmission Power (EIRP):
Model MT1SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MT1SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)

GNSS
GPS+GLONASS
Hovering Accuracy Range
Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
Horizontal: ±0.1 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal
Mechanical Range:
Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°

Controllable Range:
Tilt: -90° to 0° (default setting) -90° to +20° (extended)

Stabilization: 3-axis (tilt, roll, pan)
Max Control Speed (tilt): 120°/s
Angular Vibration Range: ±0.01°

Sensing System
Downward: Operating Range: 0.5-10 m
Operating Environment:
Non-reflective, discernable surfaces
Diffuse reflectivity (>20%)
Adequate lighting (lux>15)

Camera
Sensor:
1/2.3” CMOS
Effective Pixels: 12 MP

Lens:
FOV: 83°
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 1 m to ∞

ISO Range:
Video: 100-3200 (Auto)
Photo: 100-1600 (Auto)
100-3200 (Manual)

Shutter Speed:
Electronic Shutter: 4-1/8000s

Still Image Size:
4:3: 4000×3000
16:9: 4000×2250

Still Photography Modes:
Single shot
Interval: 2/3/5/7/10/15/20/30/60 s

Video Resolution:
2.7 K: 2720×1530 25/30 p
FHD: 1920×1080 25/30/50/60 p

Max Video Bitrate: 40 Mbps

Supported File System:
FAT32(≤32 GB)
exFAT(>32 GB)

Photo Format:JPEG
Video Format: MP4 (H.264/MPEG-4 AVC)

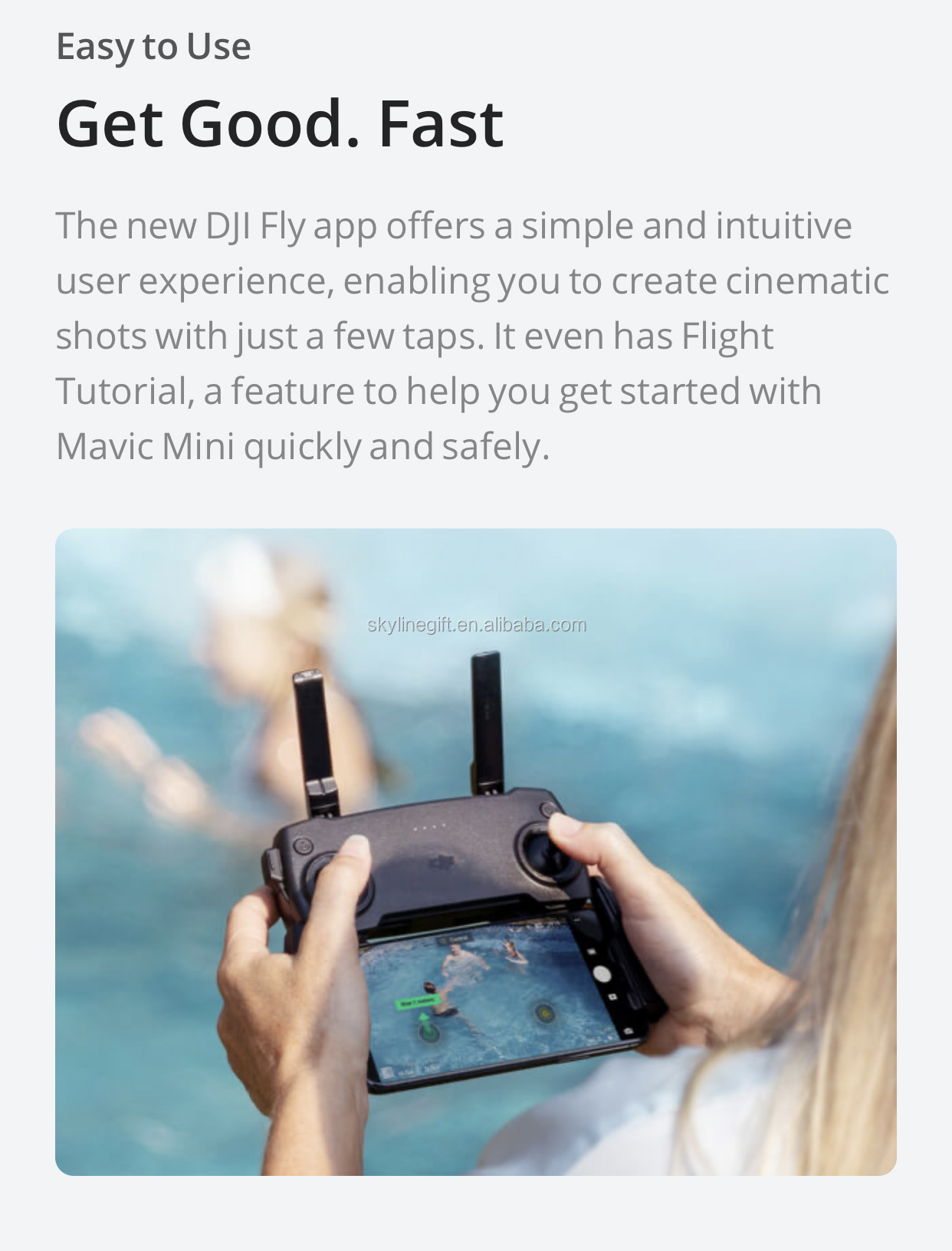

Remote Controller & Video Transmission

Operating Frequency:
Model MR1SS5: 5.725-5.850 GHz
Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference):
Model MR1SS5
5.8 GHz: 4000 m (FCC); 2500 m (SRRC)

Model MR1SD25
2.4 GHz: 2000 m (MIC/CE)
5.8 GHz: 500 m (CE)

Operating Temperature Range:
0° to 40°C (32° to 104°F)

Transmission Power (EIRP):
Model MR1SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MR1SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)

Battery Capacity: 2600 mAh
Operating Current/Voltage:
1200 mA 3.6 V (Android)
700 mA 3.6 V (iOS)

Supported Mobile Device Size:
Max length: 160 mm
Max thickness: 6.5-8.5 mm

Supported USB Port Types:
Lightning, Micro USB (Type-B), USB Type-C

Video Transmission System: Enhanced Wi-Fi
Live View Quality:720p/30fps
Max. Bitrate: 4 Mbps

Latency (depending on environmental conditions and mobile device):
170-240 ms

Charger
Input:100-240 V, 50/60 Hz, 0.5A
Output:12V 1.5 A / 9V 2A / 5V 3A
Rated Power:18 W

Intelligent Flight Battery
Capacity:2400 mAh
Voltage: 7.2 V
Max Charging Voltage: 8.4 V
Battery Type: Li-ion 2S
Energy: 17.28 Wh
Net Weight:100 g
Charging Temperature Range:
5° to 40°C (41° to 104°F)
Max Charging Power:24 W

Intelligent Flight Battery (1100 mAh)
Capacity: 1100 mAh
Voltage:7.6 V
Max Charging Voltage: 8.7 V
Battery Type: LiPo 2S
Energy:8.36 Wh
Net Weight: 50 g
Charging Temperature Range:
5° to 40°C (41° to 104°F)
Max Charging Power:18 W

APP
Name: DJI Fly
Required Operating System:
iOS v10.0 or later Android v6.0 or later

Supported SD Cards
UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below.

Recommended microSD Cards:
16 GB: SanDisk Extreme, Lexar 633x
32 GB: SamSung Pro Endurance, SamSung Evo Plus, SanDisk Industrial, SanDisk Extreme V30 A1, SanDisk Extreme Pro V30 A1, Lexar 633x, Lexar 667x
64 GB: SamSung Pro Endurance, SamSung Evo Plus, SanDisk Extreme V30 A1, Lexar 633x, Lexar 667x, Lexar 1000x, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
128 GB: SamSung Pro Plus, SamSung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme Plus V30 A1, Lexar 633x, Lexar 667x, Lexar 1000x, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
256 GB: SanDisk Extreme V30 A1

Footnotes
1. Aircraft takeoff weight (includes battery and propellers). Registration not required in some countries and regions. Check local rules and regulations before use.These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
