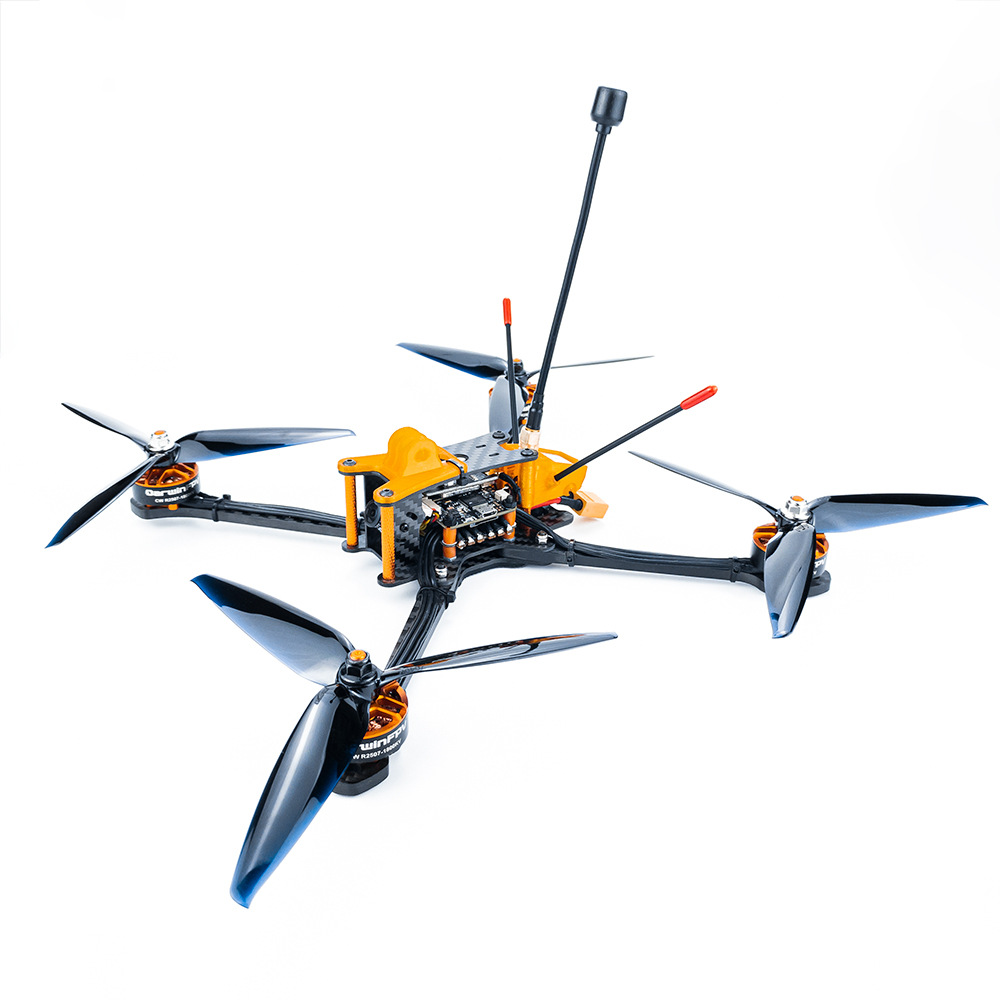

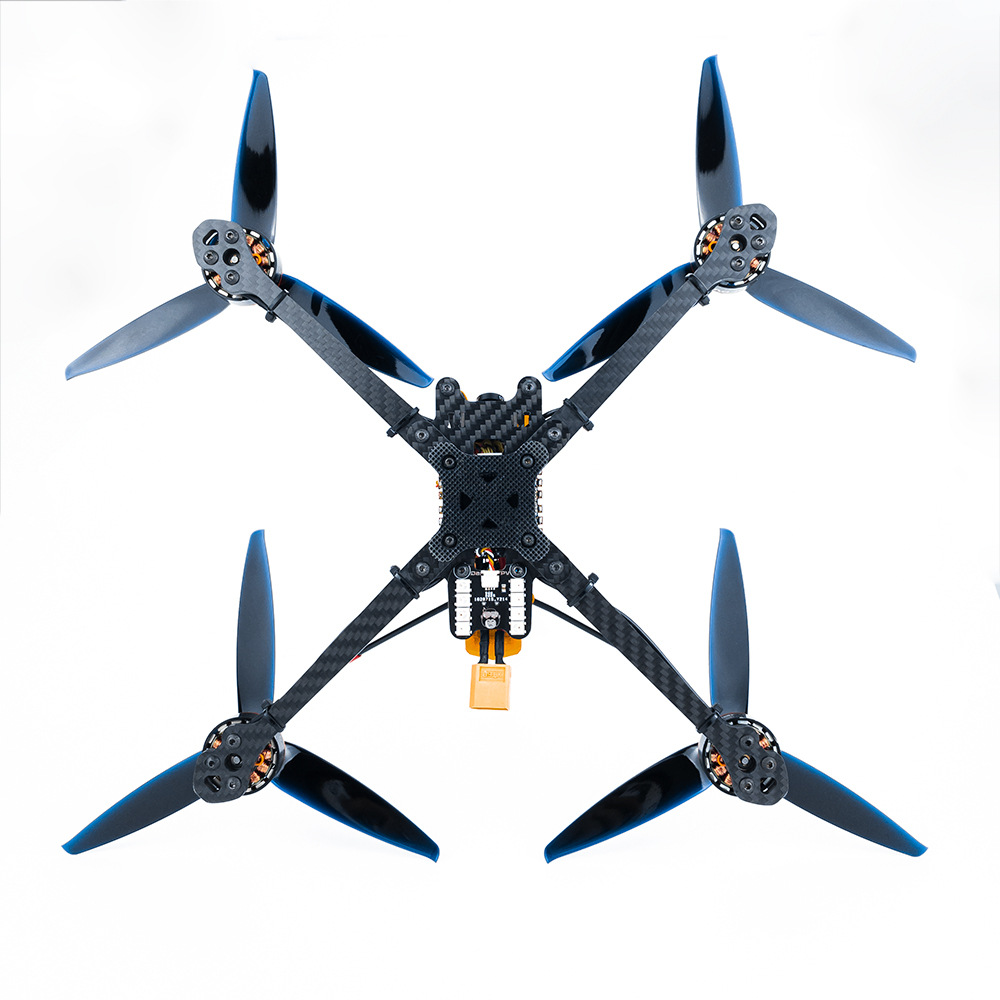

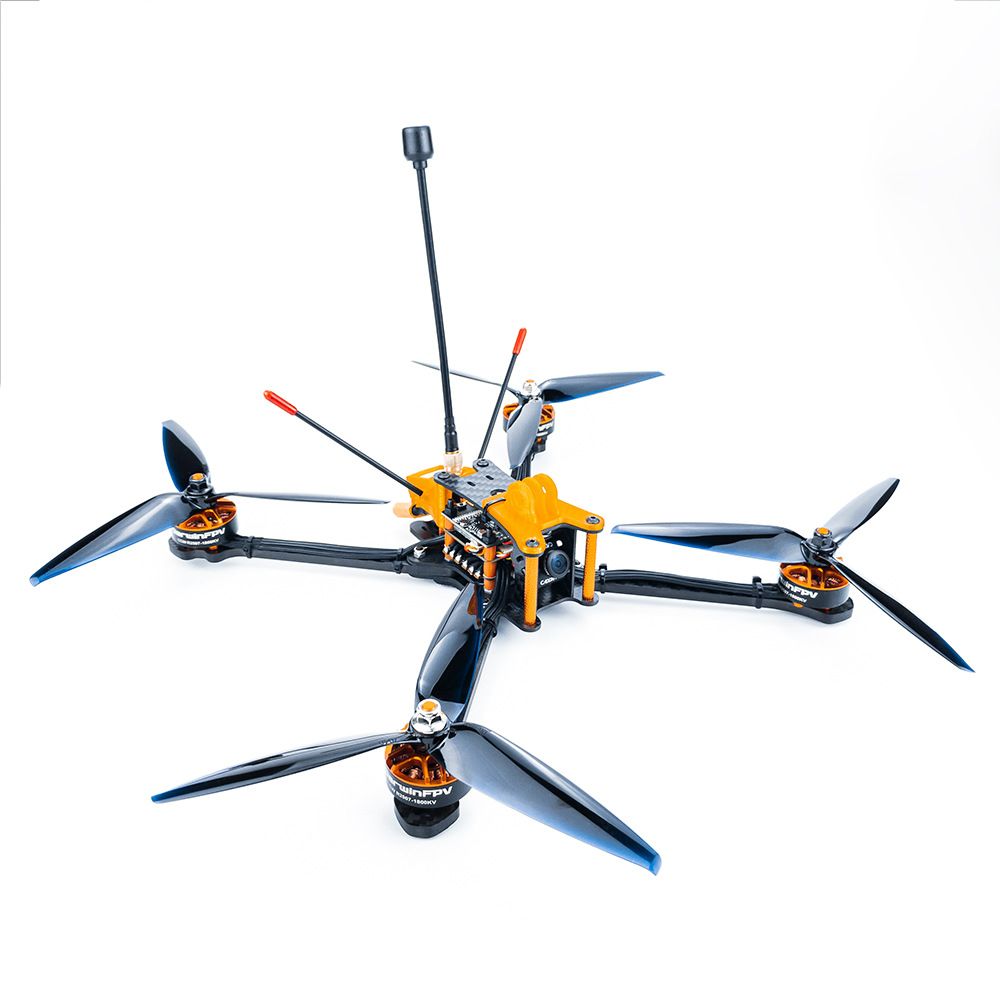

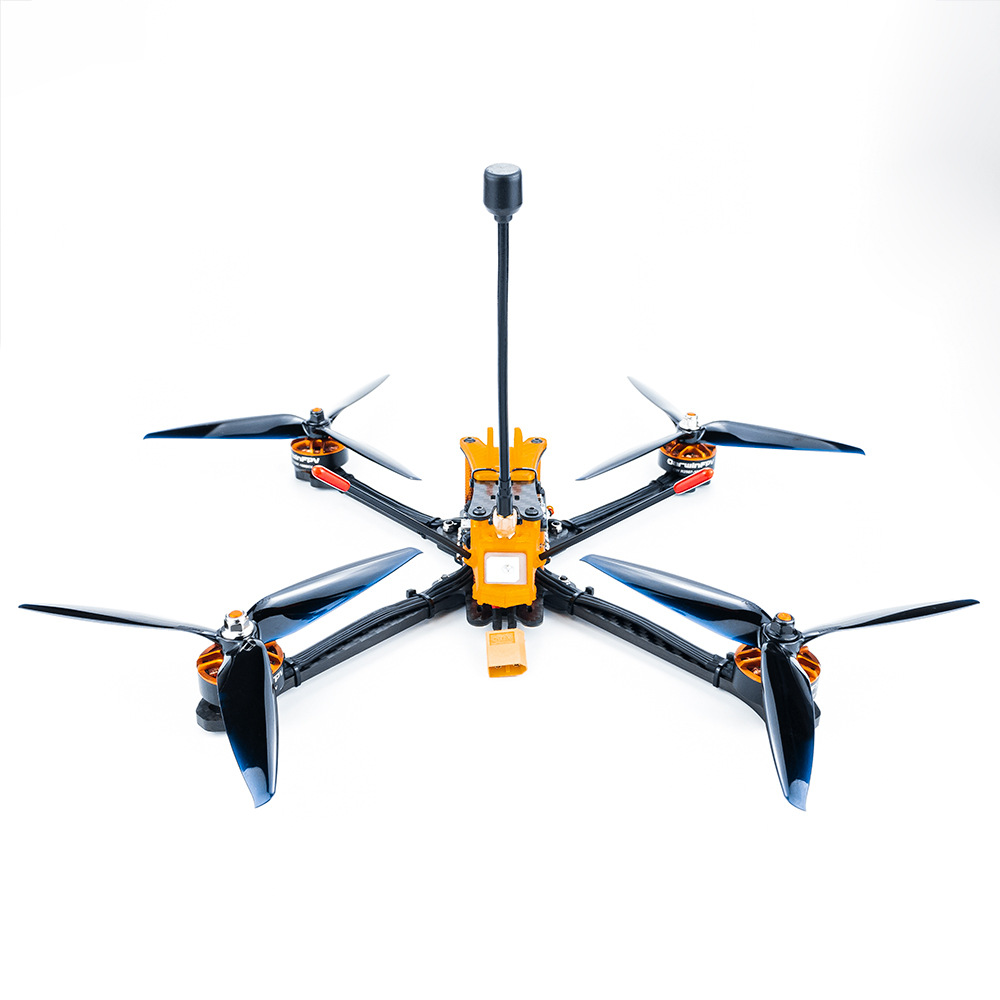

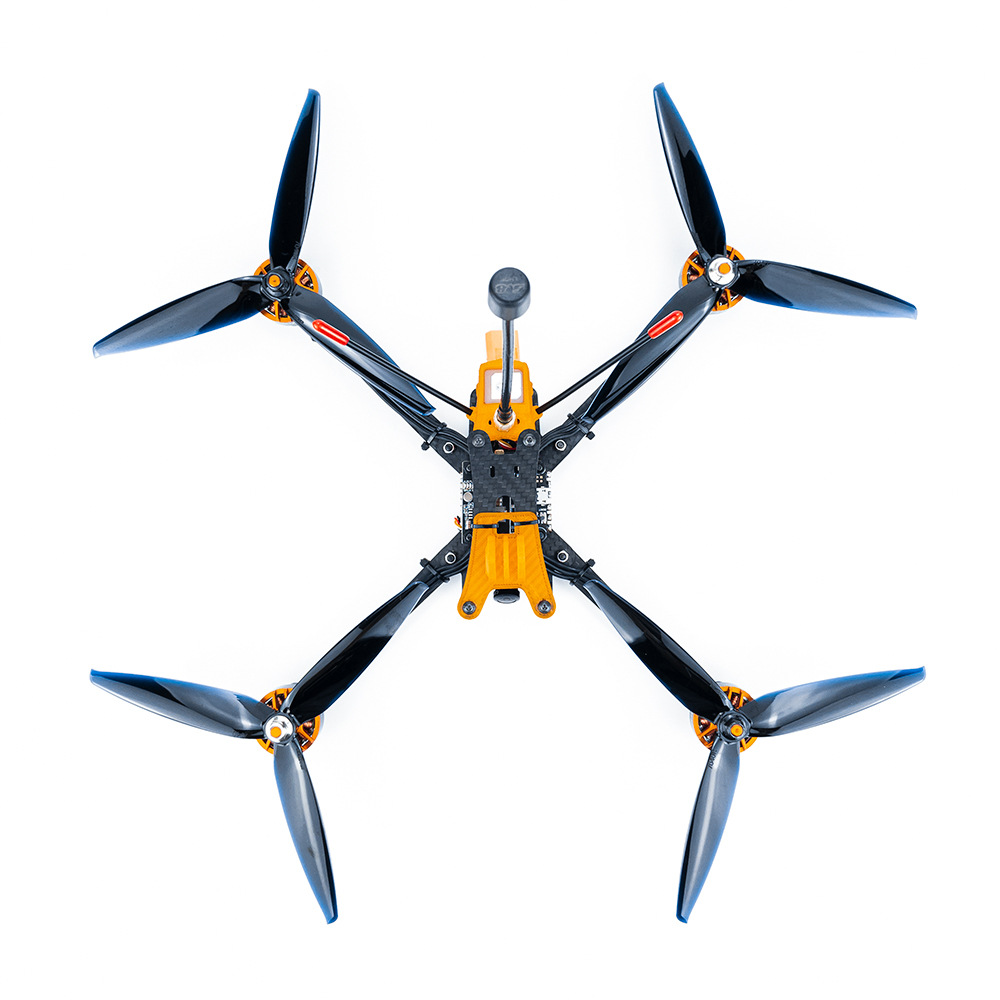

Darwin 129 Kit 7 inch FPV Traveller Darwin 129 Aero Drone Flying Machine F4 AIO Flight Control 15A Quadcopter

Darwin 129 Kit 7 inch FPV Traveller Darwin 129 Aero Drone Flying Machine F4 AIO Flight Control 15A Quadcopter

Contact way>>>>

Mobile phone: +86 17304494252
WeChat/What'sapp: +86 17304494252
Skype: +86 17304494252

frame

Wheelbase: 280mm

Arm thickness: 5mm

Material: 3K carbon fiber

Brushless Motor

Motor: 2507 1800KV 3-5S

No-load current (Io/10V): 0.89A

Weight: 39g

Maximum continuous current: 42A

Maximum continuous power: 840W

Maximum thrust: 1488g (4S/7)

Configuration: 12N/14P

Motor resistance (RM): 0.0586 Ω

Screw hole spacing: 16mm

Screw hole: M3

4 in 1 ESC

F4-50A

Continuous current: 50A

Peak current: 60A (10S)

Lithium battery: 3-5S

BEC: 5V 2A

Weight: 10.8g

Firmware: BL_S

Maximum supported throttle signal: DSHOT600

Mounting hole: M3 30.5*30.5mm

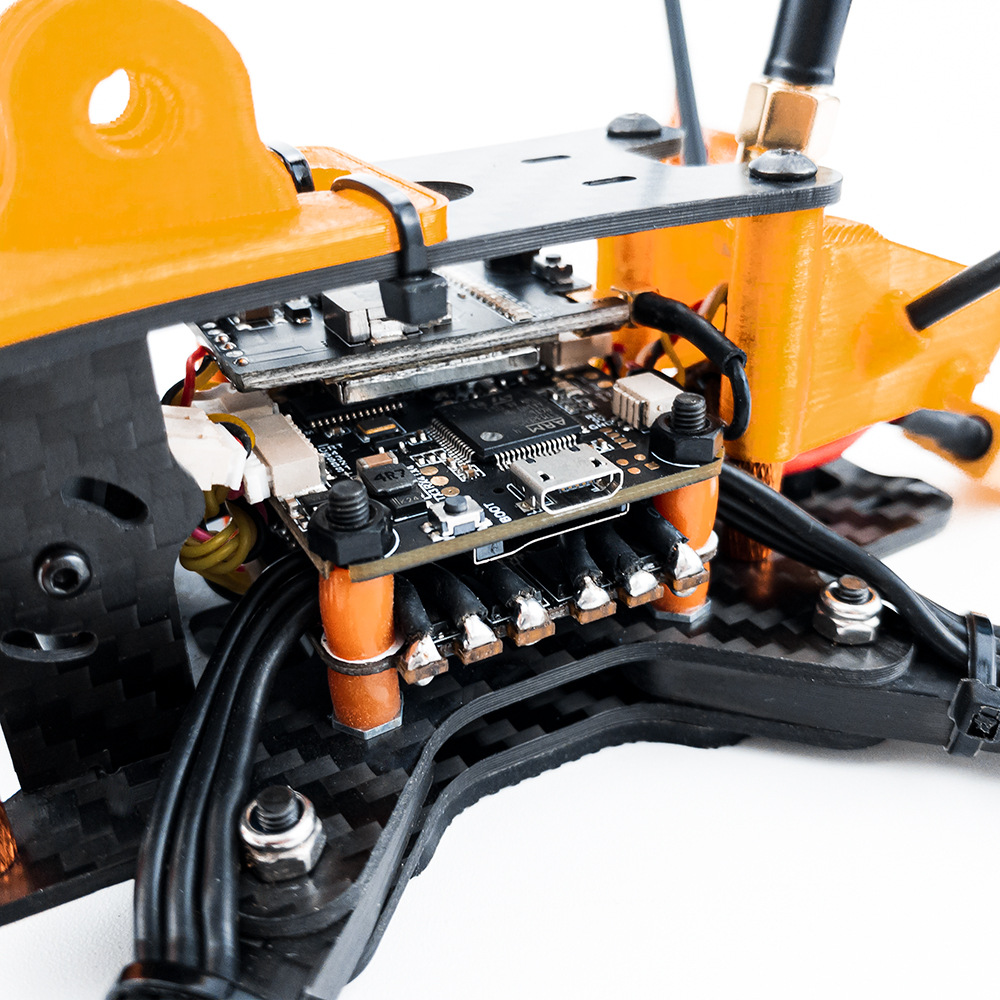

F4 flight control

BEC: 10V 1A/4.5V/3.3V

MCU: STM32F405

Gyroscope: MPU6500

OSD: AT7456E

Firmware: MATEKF405

Weight: 7.2g

Mounting hole: M3 30.5*30.5mm

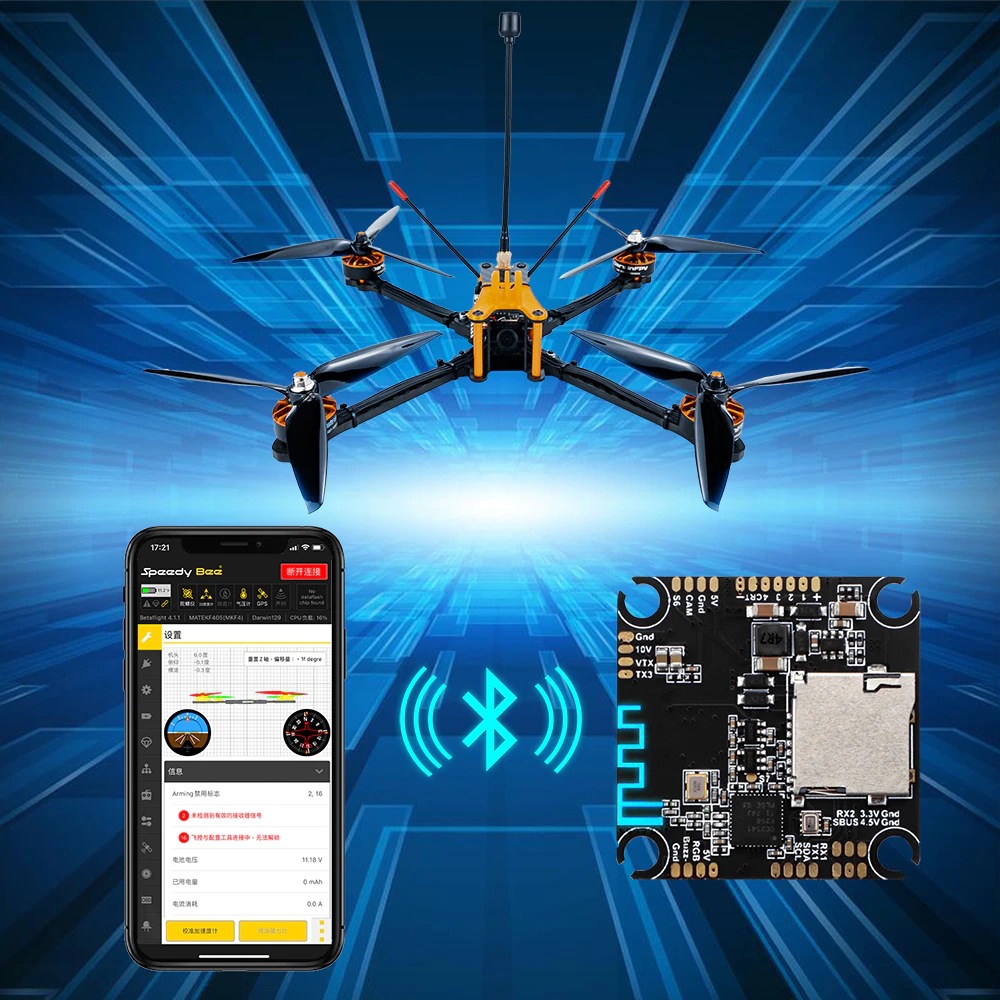

Support barometer, black box, bluetooth

5.8G image transmission

Frequency: 5.8G

Channel: 40CH

Input voltage: 7V~24V

5V camera: 120mA (MAX)----25mW@12V 5V

200mA (MAX)----200mW@12V 5V

300mA (MAX)----600mW@12V 5V

350mA (MAX) ----800mW@12V

Protocol: Smart Audio

Power supply: camera 5V output

Output power: 25mW/200mW/600mW/800mW

Switchable Antenna Connector: MMCX

Connection method: pad connection

Dimensions: 36mm*22mm*5mm, 30.5 stackable holes

Weight: 8g (not including antenna)

Camera

Name: B19

Resolution: 1500TVL

Lens: 2.1mm

Video format: NTSC & PAL (switchable)

DNR: 3DNR

Minimum lighting: 0.001LUX

Shutter speed: PAL: 1/50~100,000;

NTSC: 1/60~100,000

Wide power input: 5-30V

Working temperature: -20°C ~ +60°C

Weight: 6.0g

Size: 19*19*19mm

Darwin M80 GPS

Name: GPS+GLONASS

Power supply: 5V

Support rate: 115200dps

Receive Sensitivity: Tracking -167dBm Capture -160dBm

propeller

Qianfeng GEMFAN 7040 7 inch three blade propeller

Material: PC

Mounting hole: 5mm

Center Thickness: 8mm

Quantity: 1 set (2L2R)

Weight: 7.9g

Colour: Black

Battery

Batteries not included, 4S batteries are recommended
