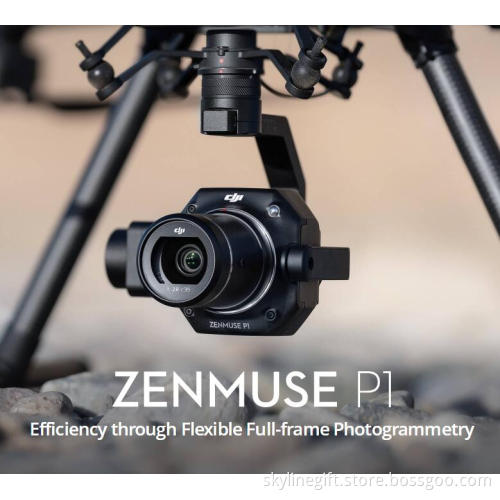

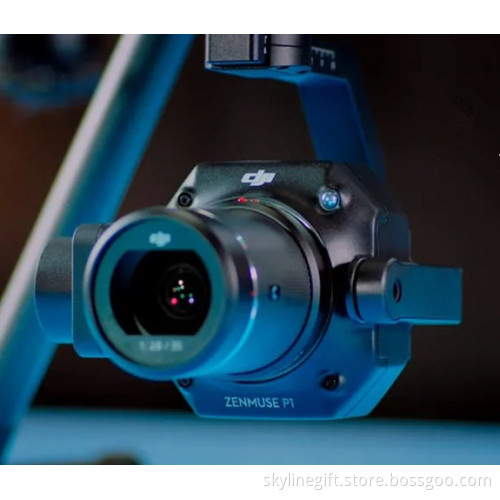

Aerial Surveying DJI ZENMUSE P1 Gimbal camera Full-frame Go-to Tool for Aerial Photogrammetry for matrice 300rtk drone

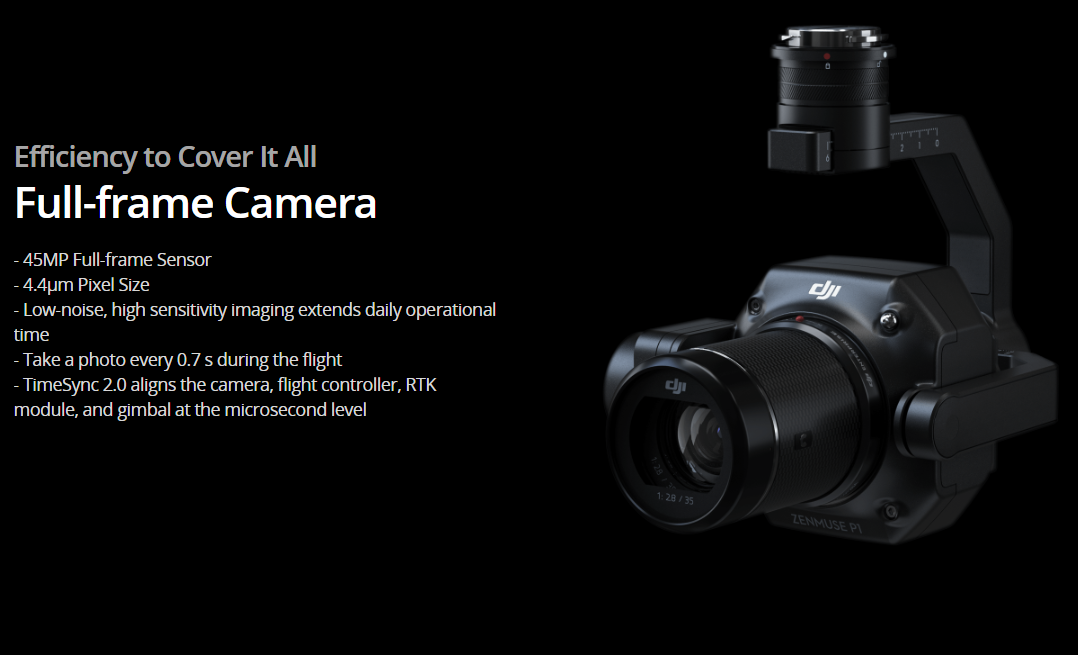

*What's the resolution of the photos taken by the P1?
The P1 takes photos with a resolution of 8192 * 5460, or approximately 45 megapixels.

*Which image/video formats are supported?
The P1 supports the following image/video formats:
 Images: JPEG, JPEG+DNG;
 Videos: MP4.

*What's the shortest continuous shooting interval of the camera?
The shortest continuous shooting interval of the P1 is 0.7 seconds.

*What's the mechanical shutter speed range of the P1?
1/2000s — 1/8s.

*What's the single pixel size of the P1?
The single pixel size of the P1 is 4.4μm.

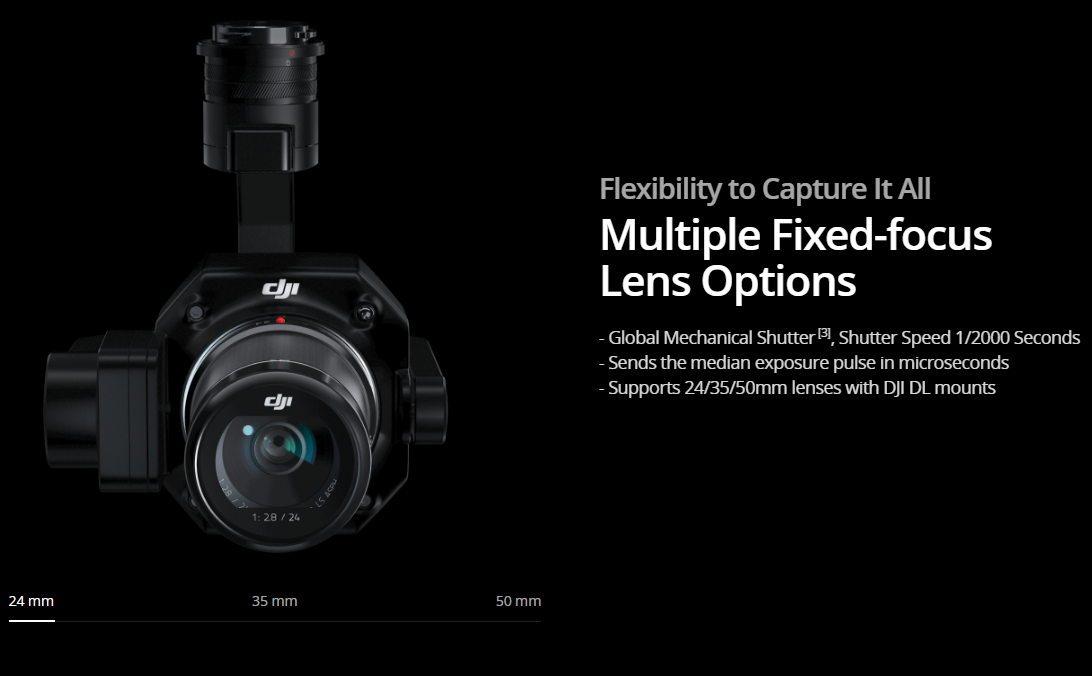

*Which lenses does the P1 support?
The P1 supports 24mm, 35mm and 50mm lenses with DL mounts.

*Are there other lenses available for the P1?
No, currently the P1 supports only three industry-specific lenses. The lenses of the P1 are optimized for surveying and mapping scenarios, including optical parameter writing, lens performance recording, and reminders. Lenses with other DL mounts can take photos and videos manually when installed on the the Zenmuse P1 camera but cannot support surveying and mapping.

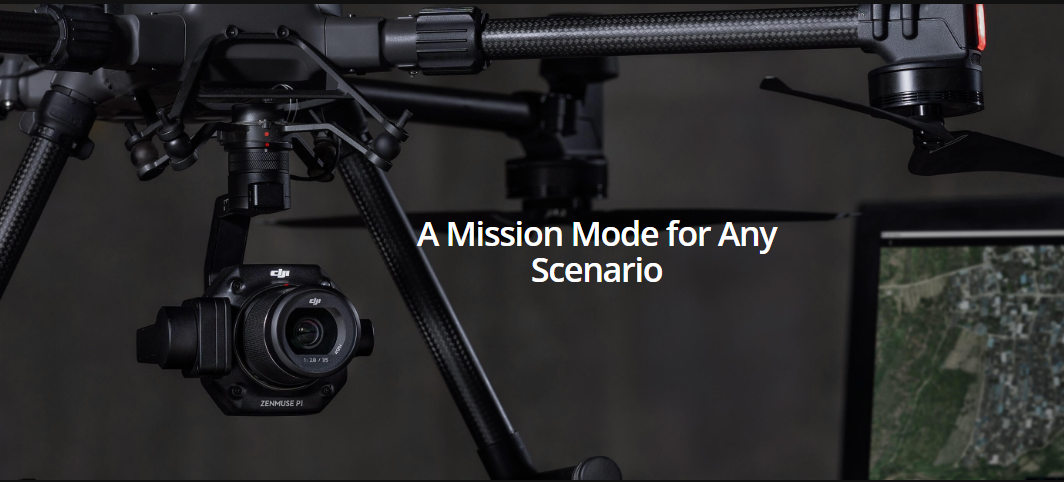

*Which drones support the the P1? On which gimbal port can it be installed?
Currently, only the The M300 RTK supports the P1. The P1 can be installed only on the No. 1 gimbal port while the The M300 RTK is in Single Gimble mode.

*Which position is recorded by the photos taken by the P1?
In photos taken by the P1, the exit pupil position at the center of the camera lens is recorded.
