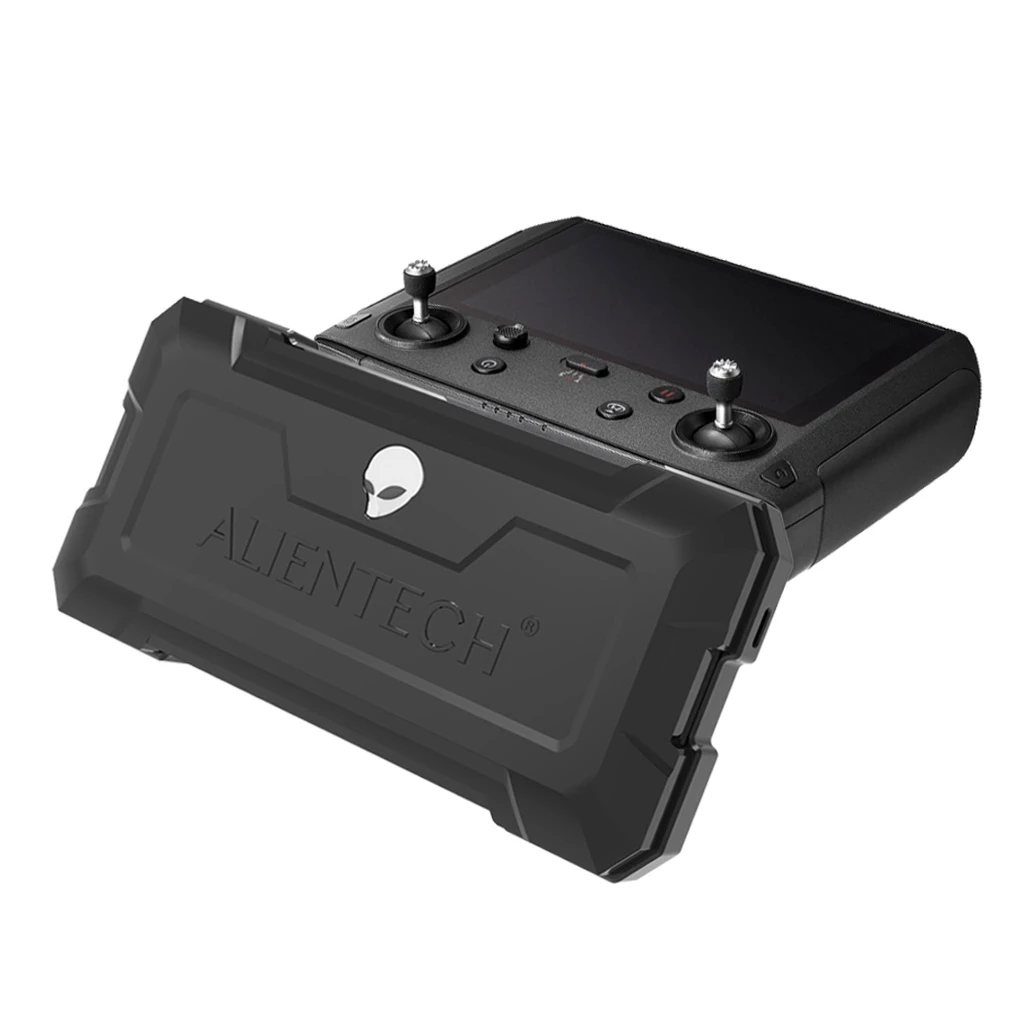

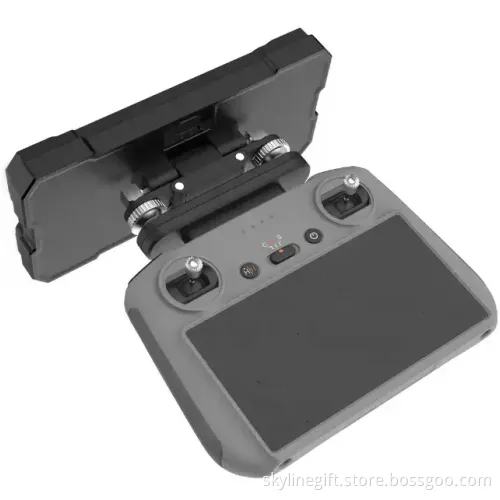

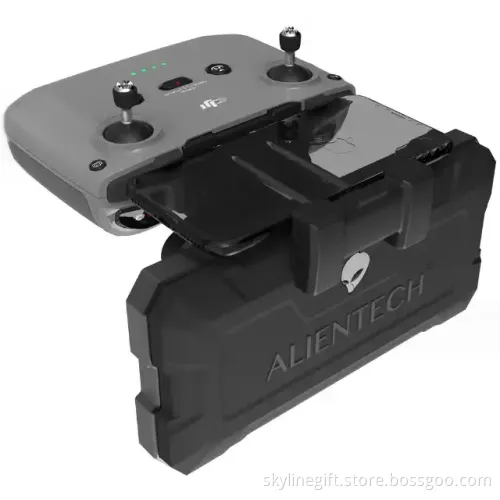

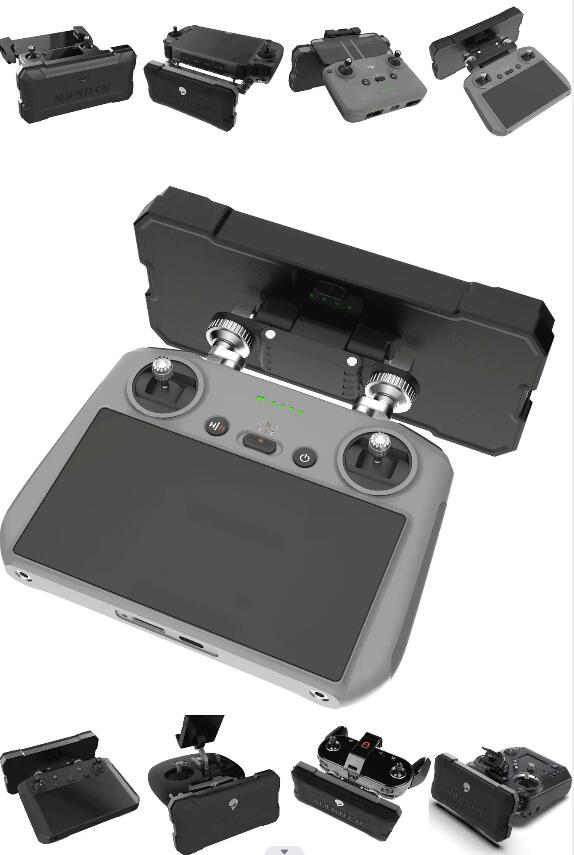

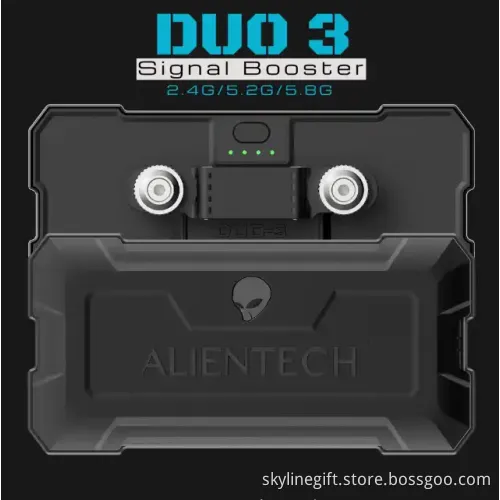

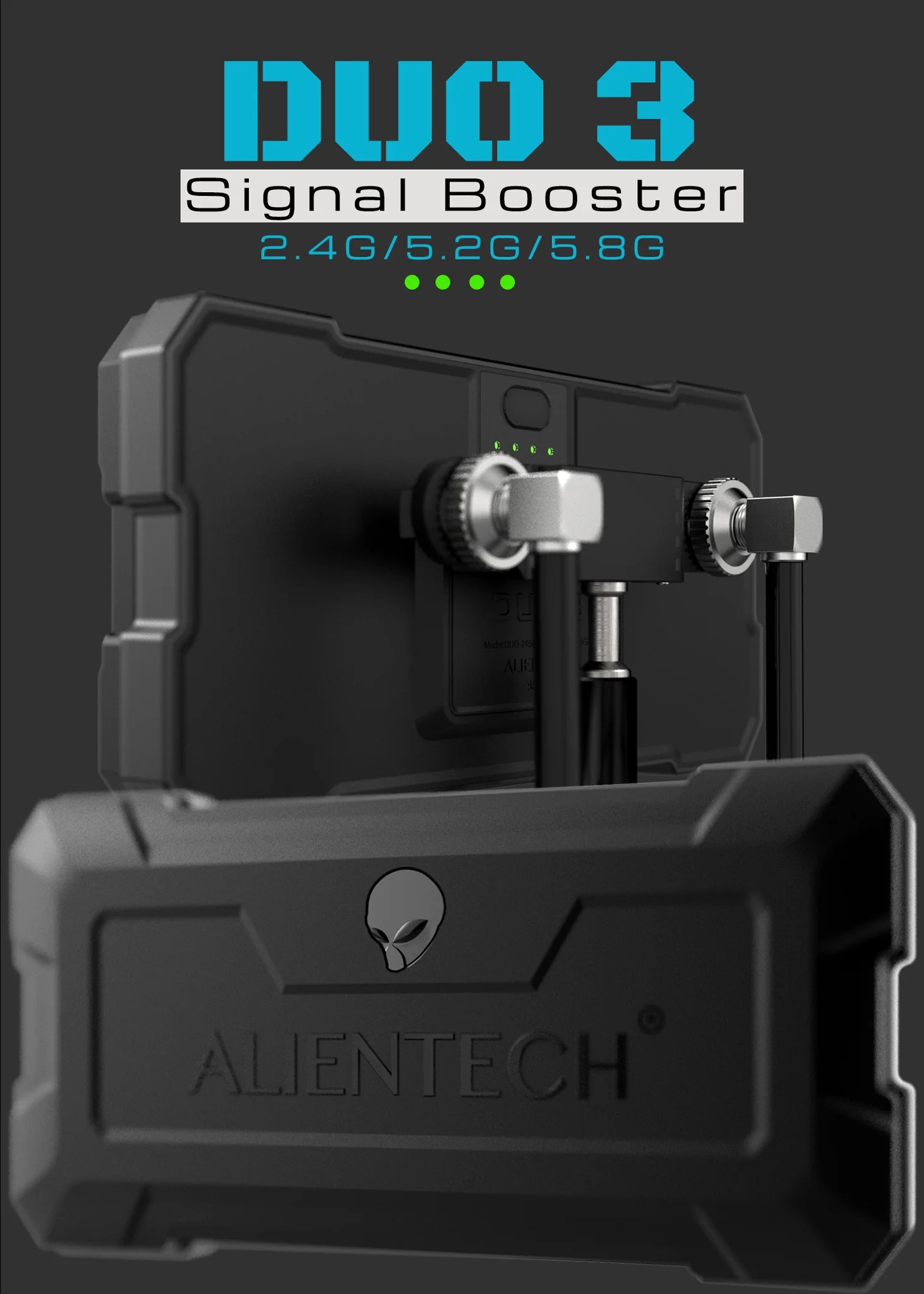

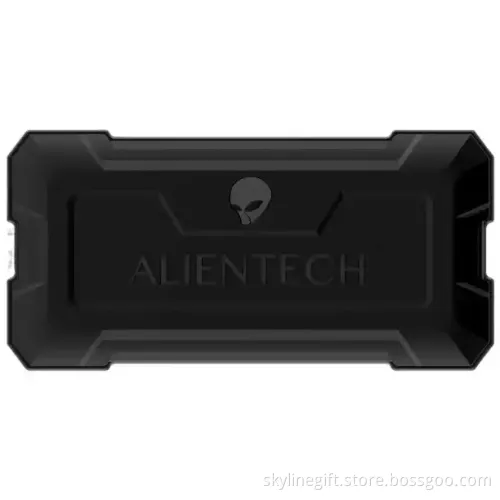

ALIENTECH DUO 3 antenna signal booster range extender for DJI/Autel/Parrot/FPV drones

First up, we've cranked up the power on this baby by optimizing the space design and doubling the power amplifier. That means your signal range gets a boost of over two times than DUO II, and is equivalent to a 5-10 with the stock antenna times. giving you the power to reach new heights and explore uncharted territories.

But that's not all! We've also thrown in a brand-new chip that works like a charm to enhance data transmission speed. In fact, it's a whopping four times faster than its predecessor, the DUO II.

And let's not forget about the Mu-Mimo technology that's packed into this beast. With dual transmission and reception capabilities, you'll experience improved signal strength and better overall performance, even in weak signal areas. crucial role.

But wait, there's more! The DUO 3 is not just limited to a specific frequency range. It's a versatile powerhouse that supports almost all 5G frequency bands, expanding from the previous 5.8G range to a wide 5.15Ghz–5.85Ghz range. That means compatibility with a wider range of wireless devices, so you can take your drone game to new heights.

We've also given the DUO 3 a makeover in the durability department. With a sleek all-aluminum alloy frame, this bad boy is built to withstand the toughest of adventures. Plus, the aluminum alloy structure optimizes heat dissipation, ensuring top-notch performance from the modules and chips.

Technical Specifications

• Model: DUO-2458DSB
• Tri-Band, works with 2.4G, 5.2G, and 5.8G (2400MHz~2483.5MHz, and 5100MHz~5850MHz)
• Working Frequency Band: 2400–2485 MHz, 5.150–5.850 MHz
• Working Voltage: 6-9V
• Antenna Gain: 2.4G>13 dBi±1 / 5G>15 dBi±1
• Antenna horizontal half-radiation angle: 65-84°
• Antenna vertical half-radiation angle: 63–75°
• 2.4G Receive Gain: 12dB±1
• Receive Gain of 5.2G and 5.8G: 15dB±1
• Transmit Gain: 15 dB±1
• Input power range: 10–25 dBm
• EVM: 3%@28 dBM 802.11 ac 6.93Gbps MIMO OFDM 64QAM BW 80 MHz
• Electric current: 435 mA at POUT 28 dBm 9V
• Noise coefficient: ≤ 2.5 dB
• Transmission delay: ≤ 1 μs
• Temperature: -20°C~80°C
• Battery voltage and capacity: 3.7V, 3000 mAh

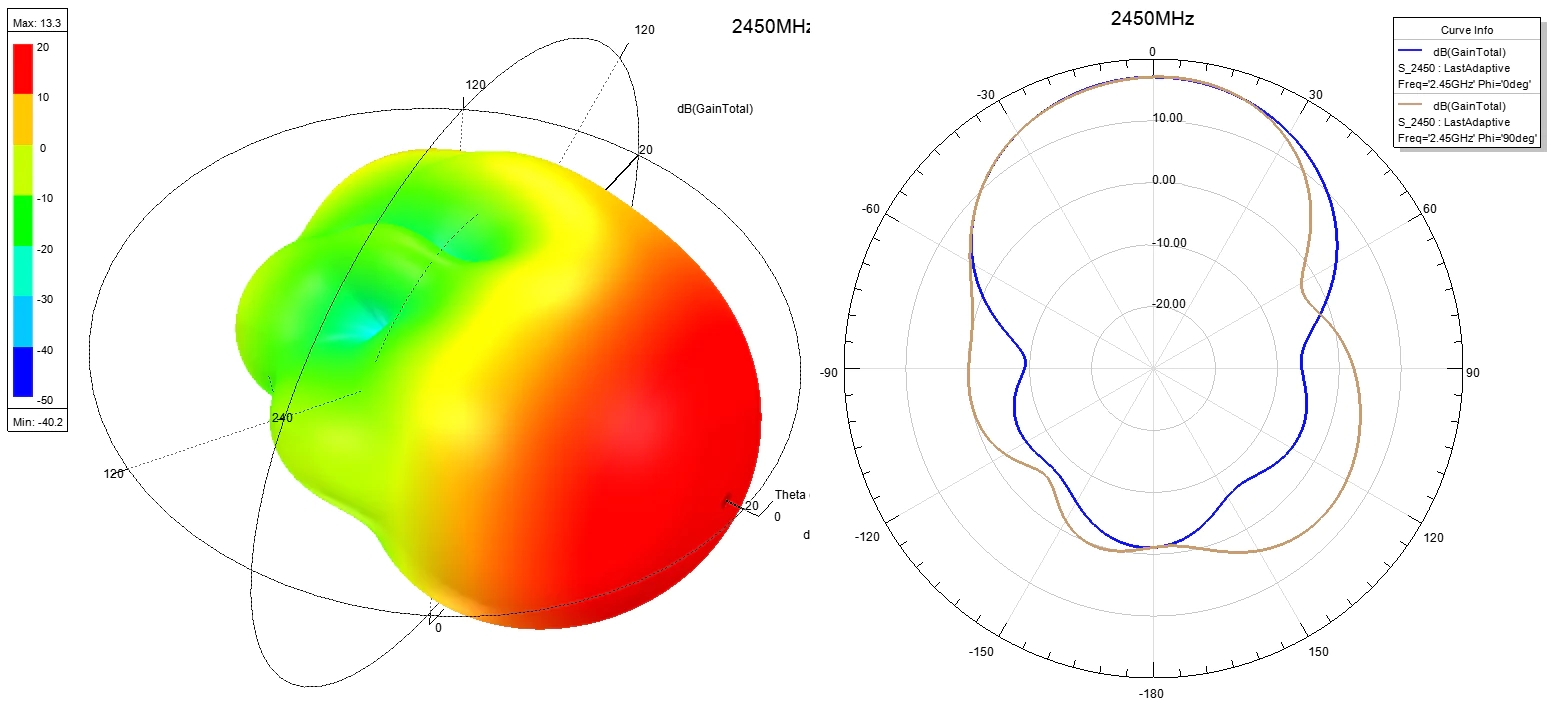

Antenna Gain and Angle

External expansion coaxial cable

DUO 3 can also be used with coaxial cables. Through calculation, we have prepared coaxial cables of different lengths for you to achieve your purpose. The length of these cables is selected based on the specific performance and physical characteristics of the cable. In 5.8G mode, the length can be up to 35m.

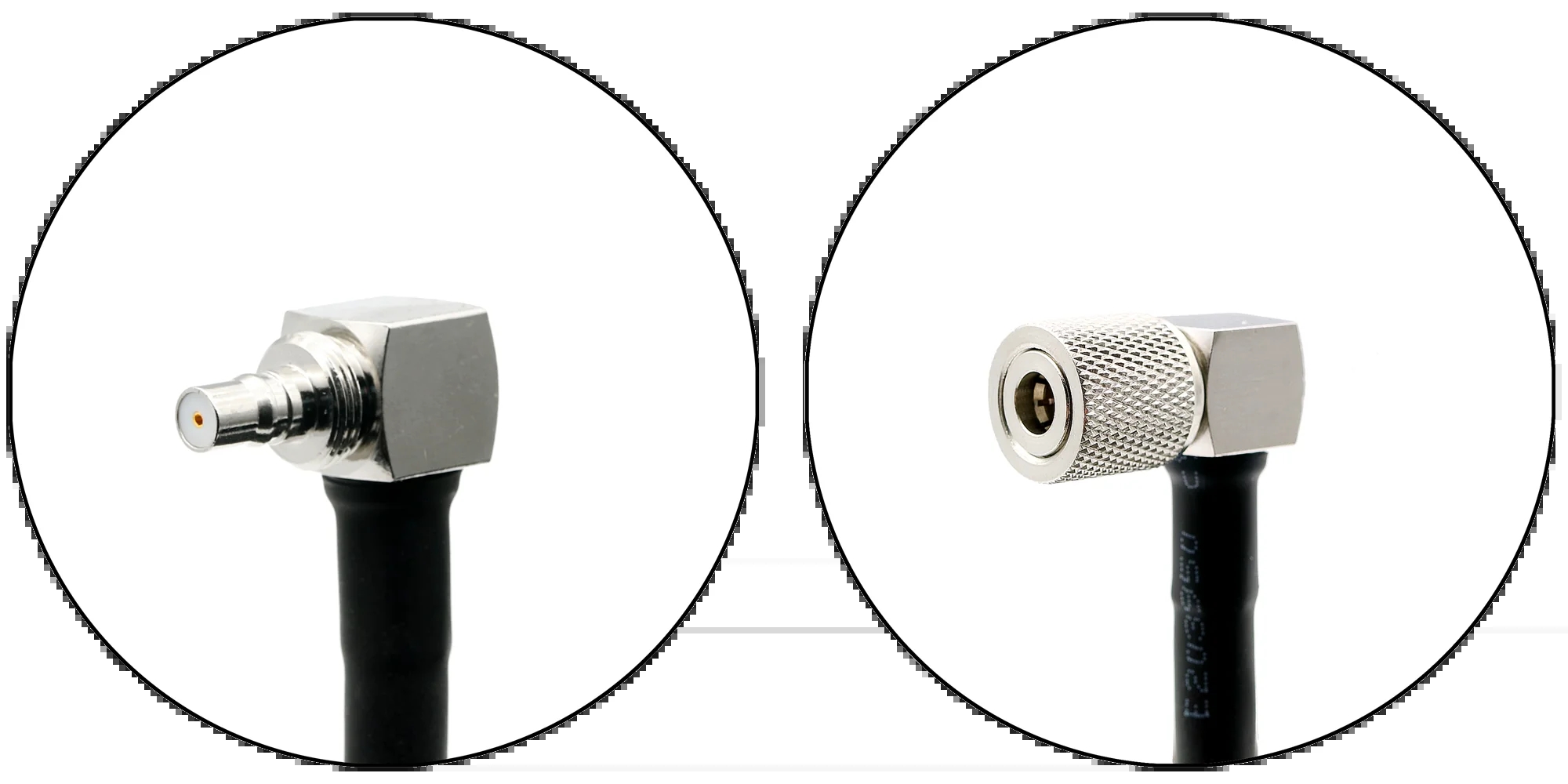

CONNECTORS: QMA FEMALE / MALE AND CAN LOCKABLE

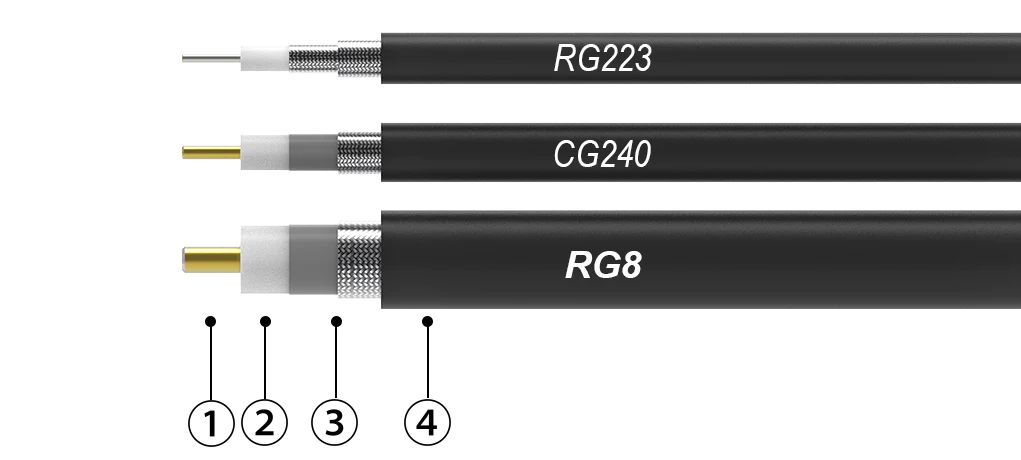

Cable Type : RG223/CG240/RG8

Flexible coaxial cable, 50ohm RG223/CG240/RG8 type

Applied standard: MIL-C-17
