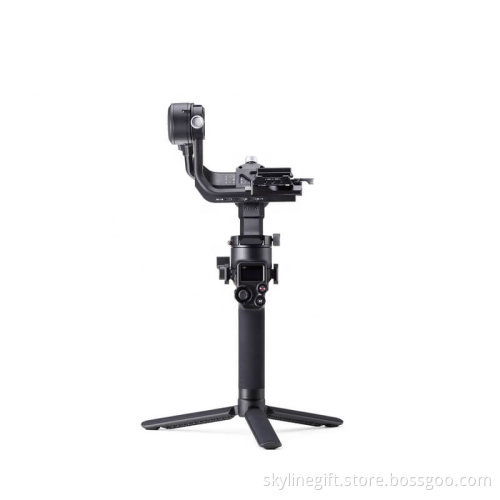

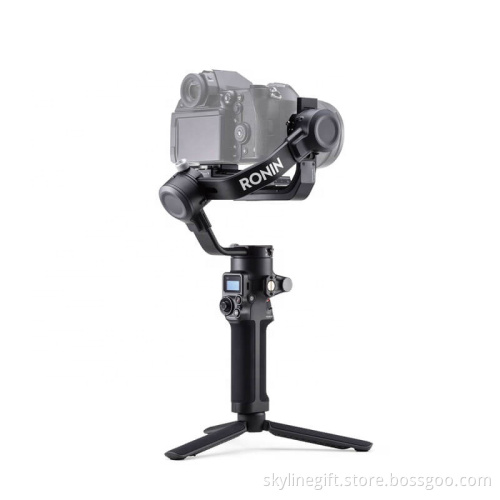

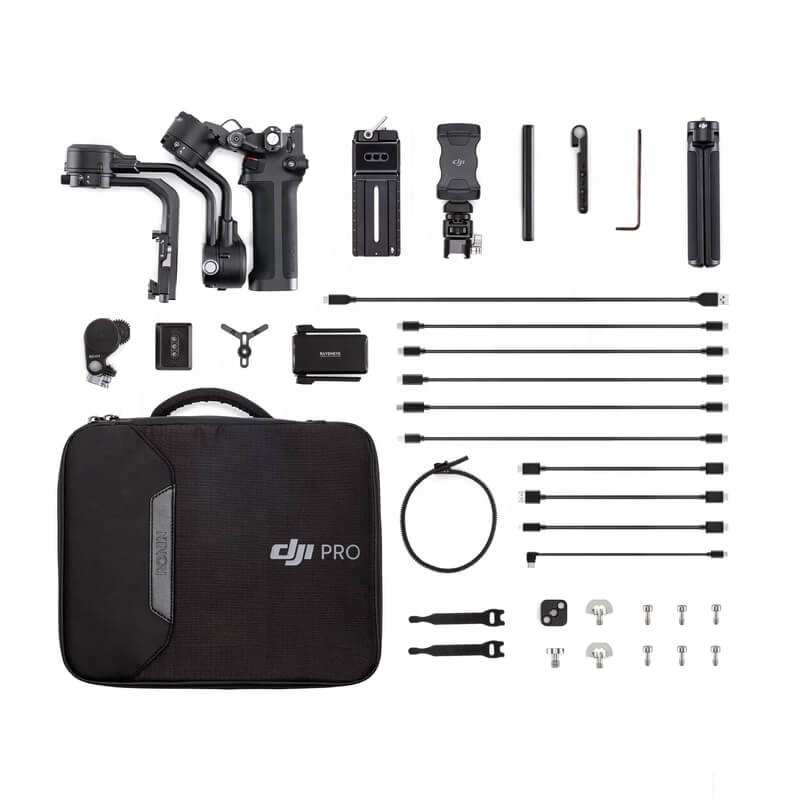

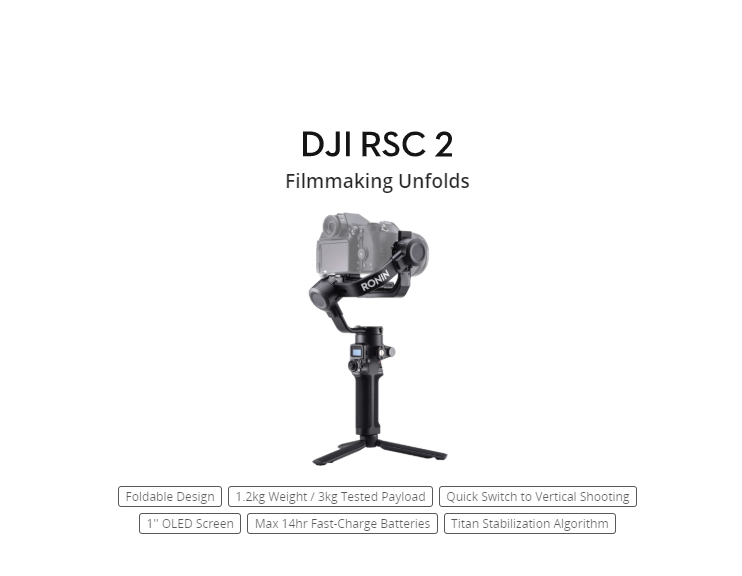

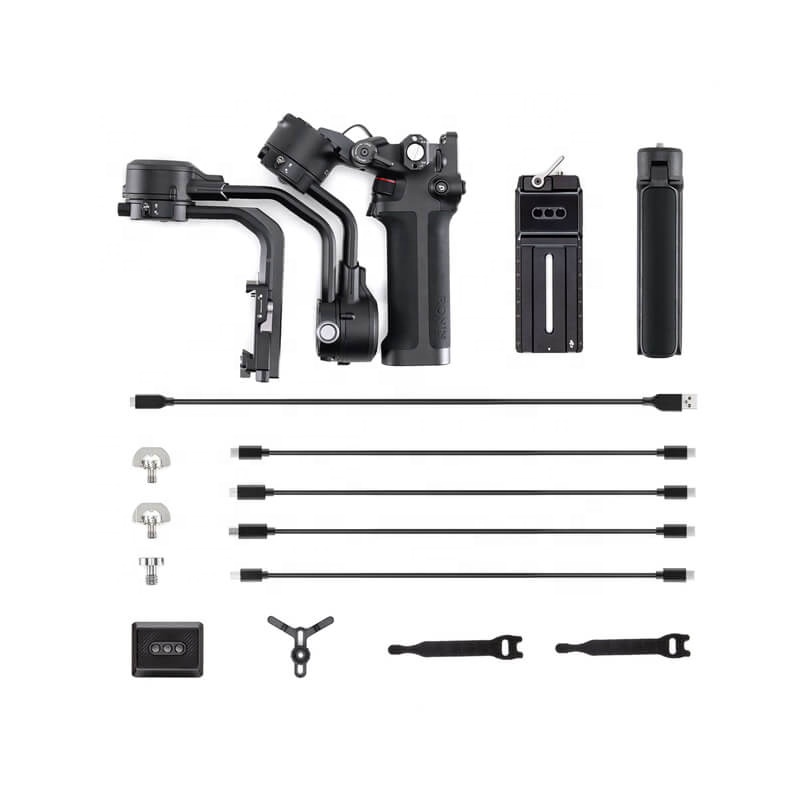

2020 hot new DJI RSC 2 /RSC 2 Pro Combo Gimbal 1 inch OLED screen 3kg payload Multi-scene solution 14hrs fast charge battery

2020 hot new DJI RSC 2 /RSC 2 Pro Combo Gimbal 1 inch OLED screen 3kg payload Multi-scene solution 14hrs fast charge battery

Tips:
1. If the buyer does not require specific courier/logistics company before our shipment, we will ship the goods accoring to the default shipping channel.

2. We can send the goods to buyer address but not including destination country’s customs clearance and taxes/duty service.

3.We don't accept goods return or refund if it's not product itself problem.

Overview

Accessory Connections

NATO port
M4 Mounting Hole
1/4”-20 Mounting Hole
Cold Shoe Mount
Video Transmission/ Follow Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Follow Focus Motor Port (USB-C)

Battery

Model: RB2-3400mAh -7.2 V
Type: 18650 2S
Capacity: 3400mAh
Energy: 24.48 Wh
Max Battery Life: 14 hours
Charging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)
Charging temperature: 5° to 40° C (41° to 104° F)

Connections     Bluetooth 5.0; USB-C

Ronin App Requirements

iOS 11 or above;
Android 7.0 or above

Working Performance

Load Weight (Reference Value)

 3.0 kg (Handheld)

Maximum Controlled Rotation Speed

Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s

Mechanical Range

Pan axis: 360° continuous rotation
Roll axis: -240° to +95°
Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency      2.4000-2.4835 GHz

Transmission Power      < 8 dBm

Operating Temperature   -20° to 45° C (-4° to 113° F)

Weight

Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)
Quick-Release Plate (Upper/Lower) Approx. 102 g
Extended Grip/Tripod (Metal): Approx. 226 g
Extended Grip/Tripod (Plastic): Approx. 160 g

Gimbal Dimension

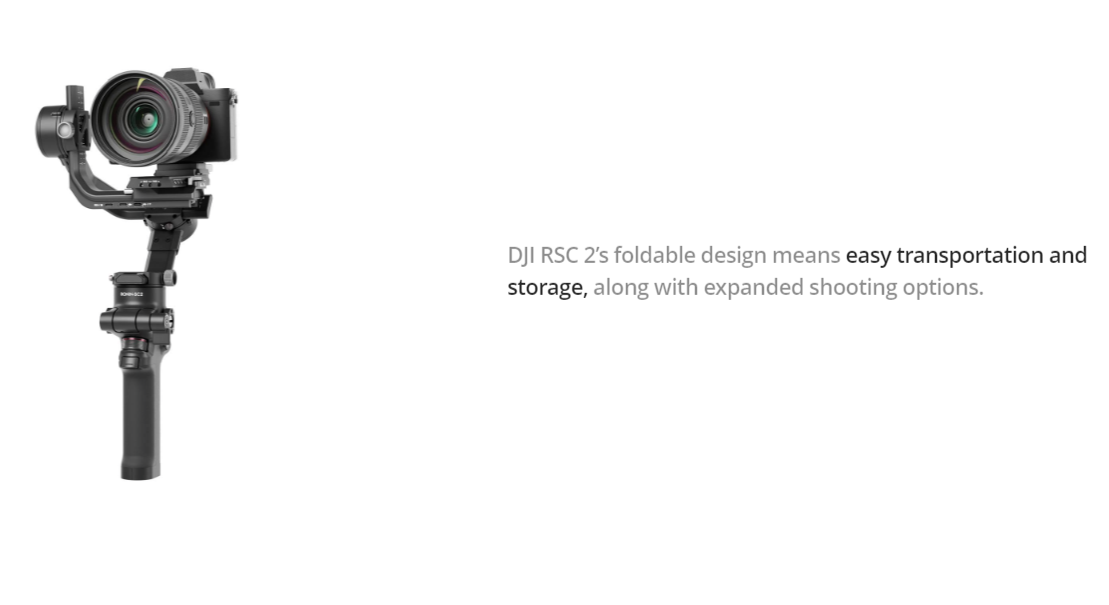

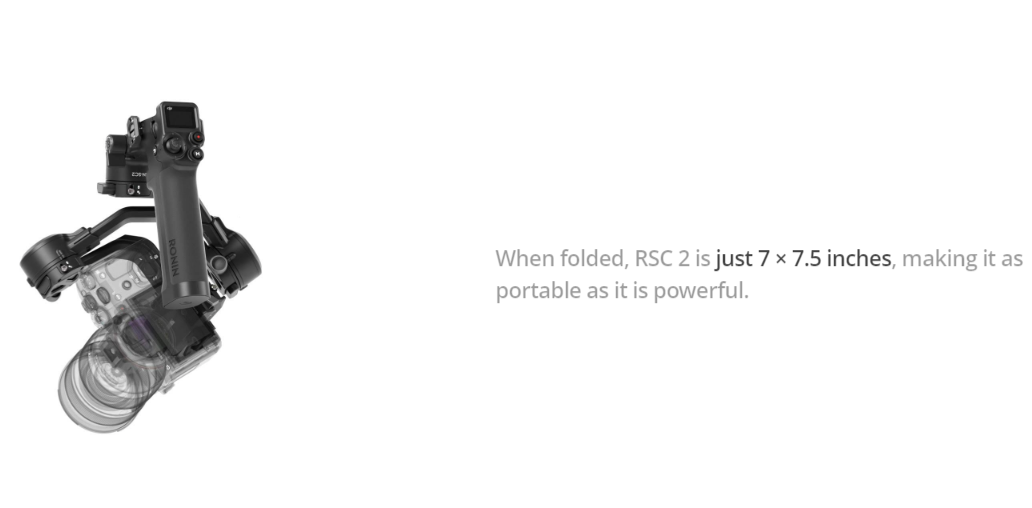

Folded: 260×210×75 mm (including the handle)
Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)

Folded: 260×210×75 mm (including the handle)
Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)
