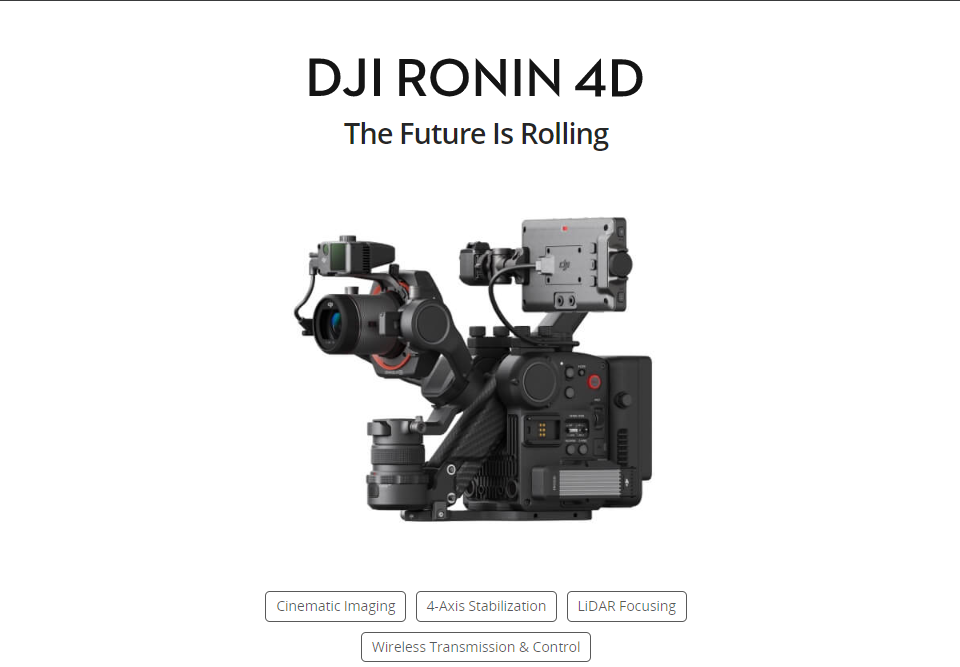

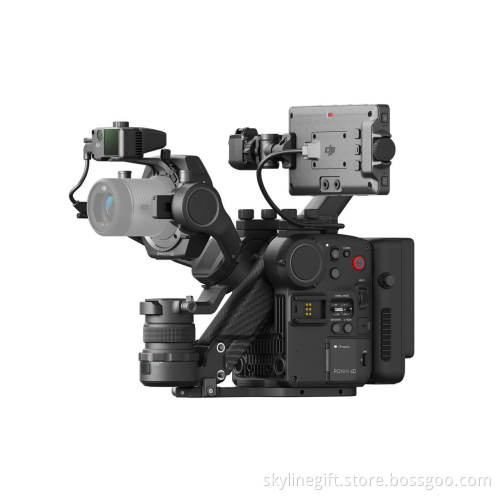

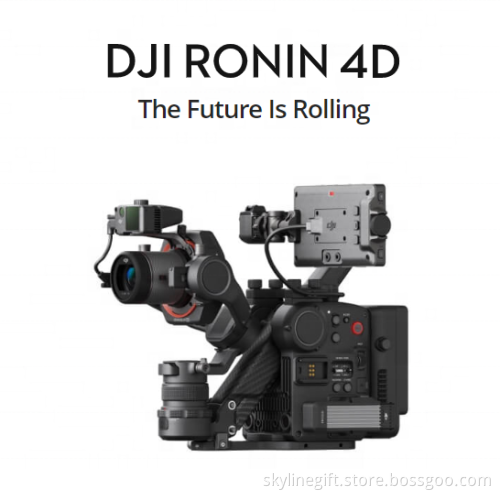

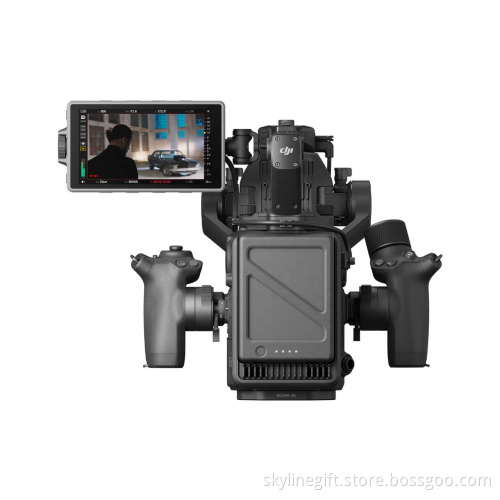

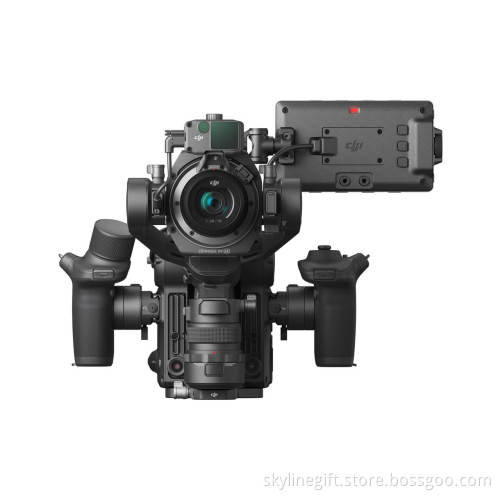

DJI Ronin 4D-6K  DJI Ronin 4D-8K Wireless Transmission 4-Axis Stabilization LiDAR Focusing Full-Frame Gimbal Camera

 Tips:
1. If the buyer does not require specific courier/logistics company before our shipment, we will ship the goods according to the default shipping channel.

2. We can send the goods to buyer address but not including destination country’s customs clearance and taxes/duty service.

3.We don't accept goods return or refund if it's not product itself problem.

Specs
General
Main Body Dimensions (length×width×height)
235×115×160 mm

Overall Dimensions (length×width×height)
309×290×277 mm

Gimbal Weight
Approx. 1.04 kg

Main Body Weight
Approx. 1.45 kg

Overall Weight
Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)

Max Operating Time
Approx. 150 minutes

Intelligent Features
ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)

Storage Temperature
-20° to 60° C (-4° to 140° F)
Operating Temperature
-10° to 40° C (14° to 104° F)

Camera
Sensor Size:
35mm full-frame CMOS image sensor

Base Lens Mount:
DX Mount, and support for other mount units

Supported Lens Mounts:
DL Mount (standard), M Mount, and E Mount

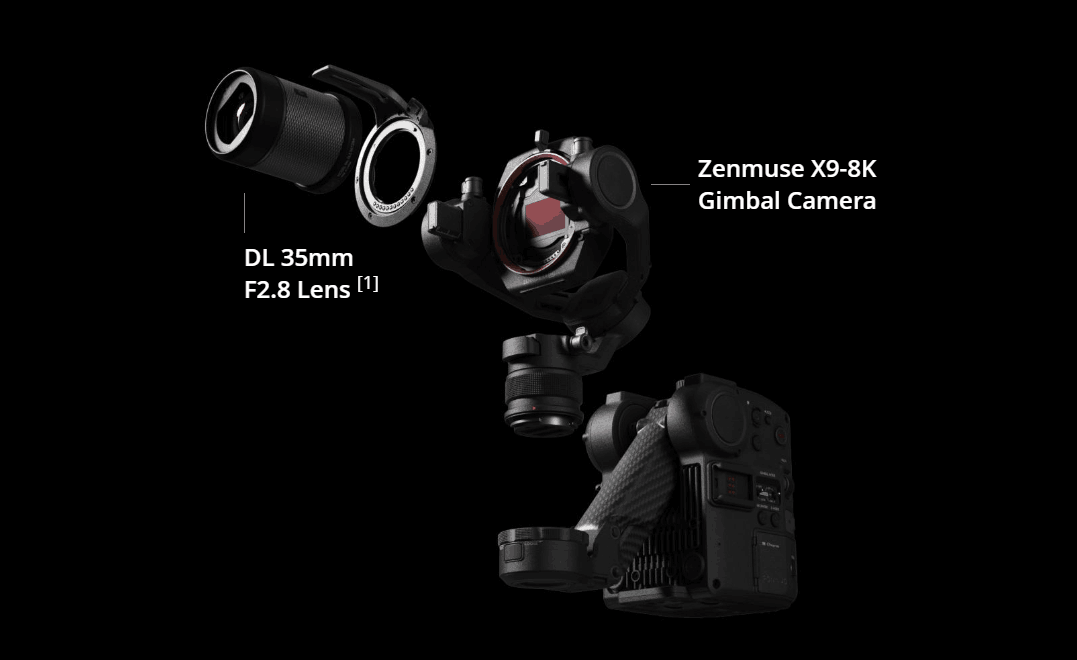

DL Lens:
DJI DL 24mm F2.8 LS ASPH
DJI DL 35mm F2.8 LS ASPH
DJI DL 50mm F2.8 LS ASPH

Dynamic Range:
14+ stops

White Balance:
Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB

Gamma:
D-Log, Rec.709, HLG

EI Range:
X9-8K: EI 200-12800, Dual Native ISO 800/4000
X9-6K: EI 200-12800, Dual Native ISO 800/5000

Shutter Speed:
Electronic Rolling Shutter 1/24s-1/8000s
ND

Built-in 9-stop ND filters:
Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)

Focus Control:
Autofocus, Manual Focus, Automated Manual Focus

X9-6K Max Bit Rate:
6008×3168, 48fps
RAW 3.4Gbps

X9-8K Max Bit Rate:
8192×4320, 60fps
RAW 3.95Gbps
Supported File System:
exFAT

Recording Format:
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)

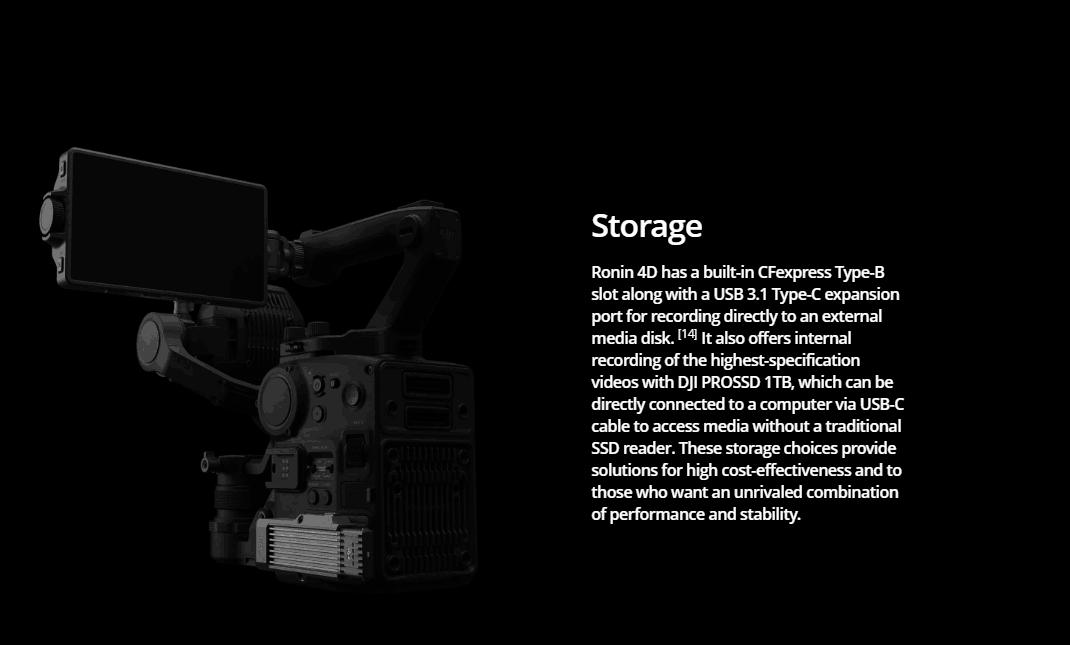

Storage Media:
DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD

DJI PROSSD 1TB Recording Format:
No restriction on recording format

CFexpress 2.0 Type B Recording Format :
ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
USB-C SSD Recording Format [6]
ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

Built-in Mic:
Built-in 2-ch stereo

Audio Format:
LPCM 2-ch, 24-bit 48kHz

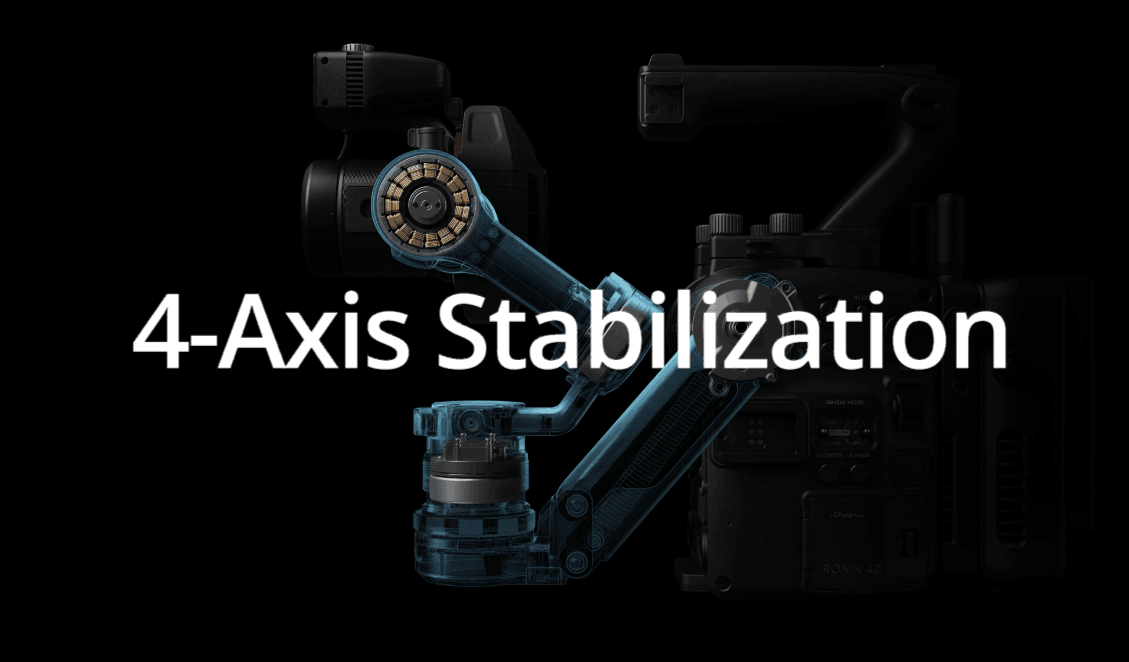

Gimbal

Mechanical Range
Pan: ±330°
Tilt: -75° to 175°
Roll: -90° to 230°
Z-Axis Range: approx 130mm

Controllable Range
Pan: ±285°
Tilt: -55° to +155°
Roll: ±35°

Max Control Speed (°/s)
DJI Master Wheels or DJI Force Pro:
Tilt: 360°/s
Roll: 360°/s
Pan: 360°/s
Ronin 4D Hand Grips:
Tilt: 120°/s
Roll: 120°/s
Pan: 120°/s

Maximum Z-Axis Payload
2000 g (including 1040 g gimbal)

Angular Vibration Range
±0.01°

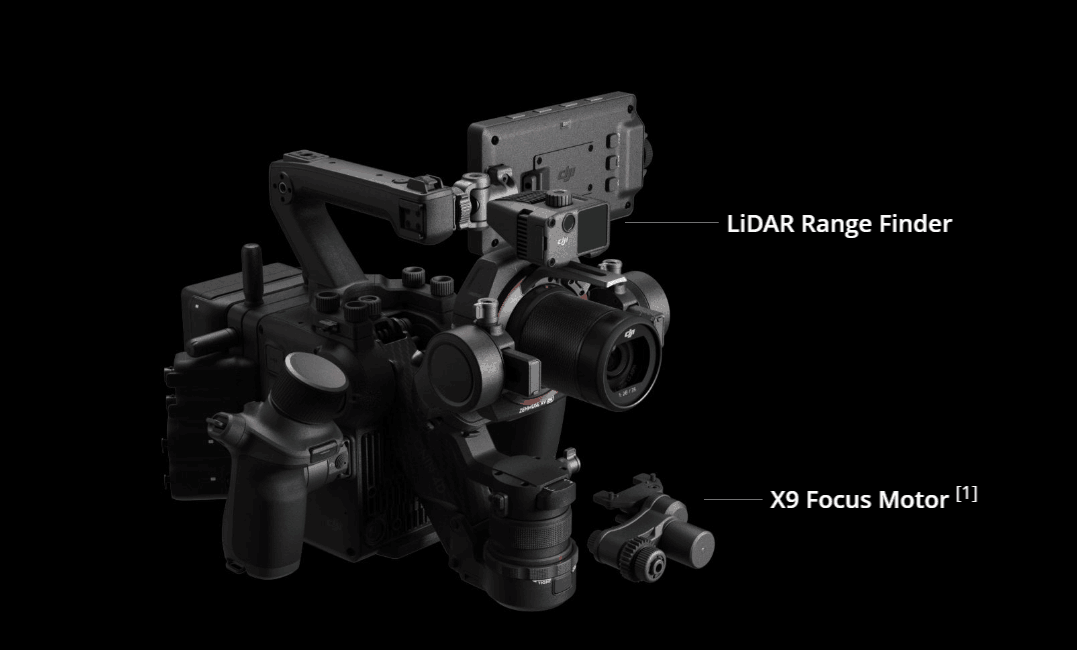

LiDAR Range Finder

Weight:88 g

Dimensions (length×width×height):71×47×34 mm

Operating Temperature: -10° to 40° C (14° to 104° F)

LiDAR Range Measurement Precision:
0.3-1m (±1%)
1-10m (±1.5%)

FOV:
30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)
30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)

Safety Rating:
Class 1 (IEC 60825-1:2014) (safe for human eyes)

Operating Environment:
Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
Laser Wavelength:940 nm

Single Pulse Width:
Two kinds of pulses emit in circulation: 5ns and 33.4ns.
Max Laser Power: 6 W

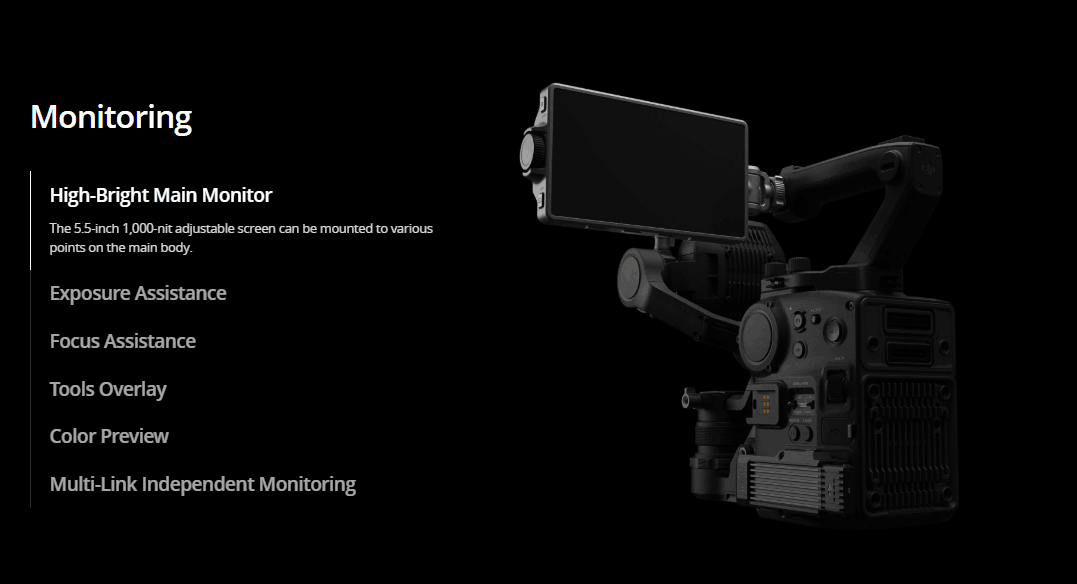

Main Monitor
Screen Size:
5.5 inches (diagonal)

Resolution:
1920×1080

Refresh Rate:
60 Hz
Max Brightness:
1000 cd/m²

Screen:
Rotational LCD touchscreen

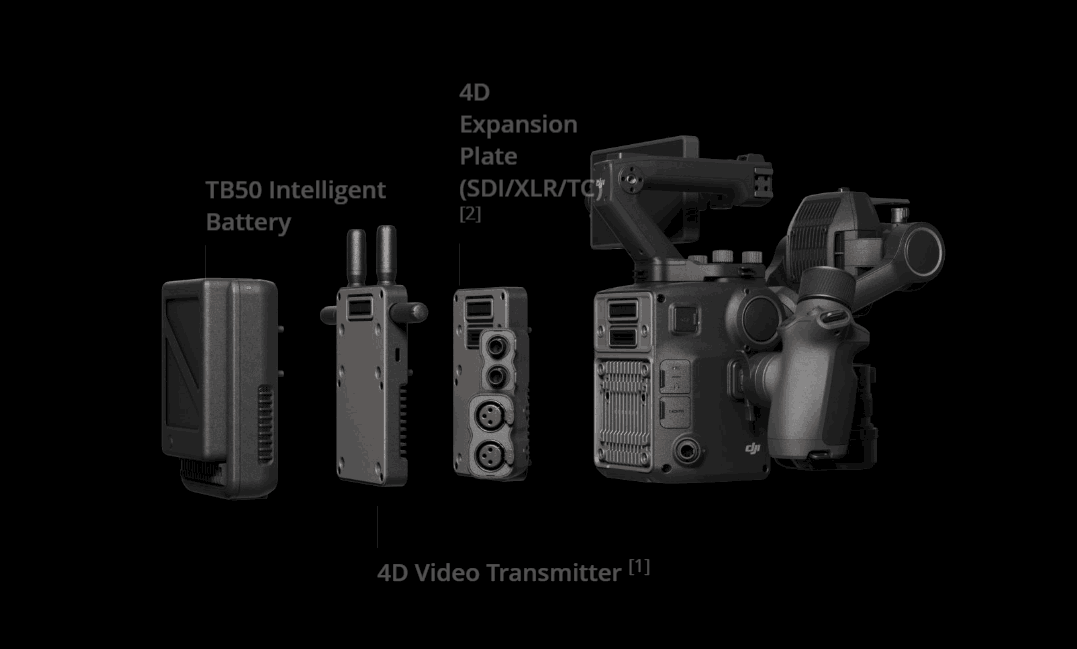

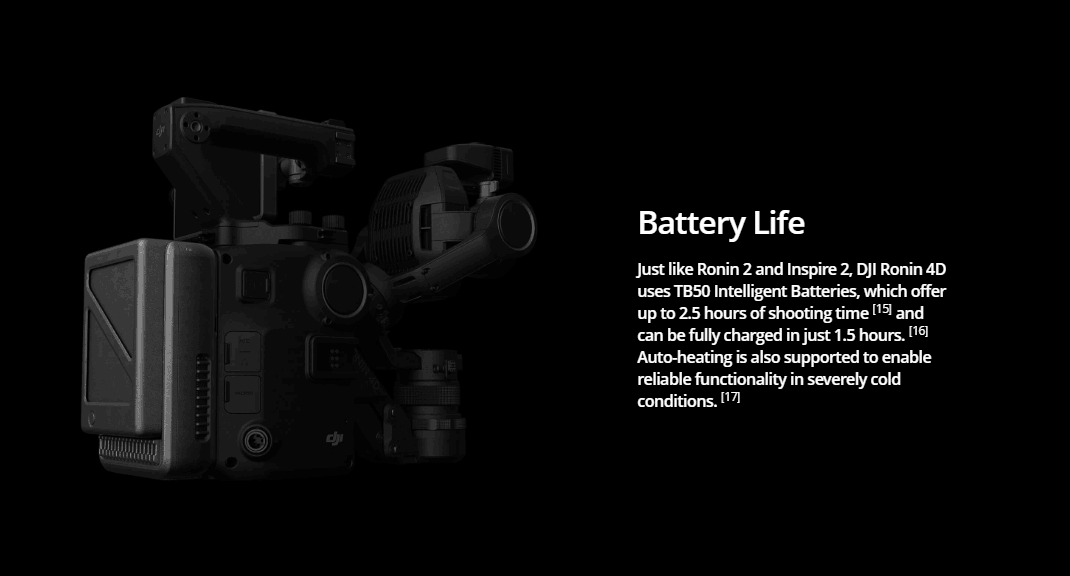

Battery
Battery Type:TB50 Intelligent Battery
Capacity:4280 mAh

Energy:97.58 Wh

Voltage:22.8 V

Max Charging Voltage:26.1 V

Max Charging Power:180 W

Charging Temperature Range:
5° to 40° C (41° to 104° F)

Charging Time:
Approx. 1.5 hours (with standard 86W power adapter)

DJI Ronin 4D-6K Sample Footage

DJI Ronin 4D-8K Sample Footage

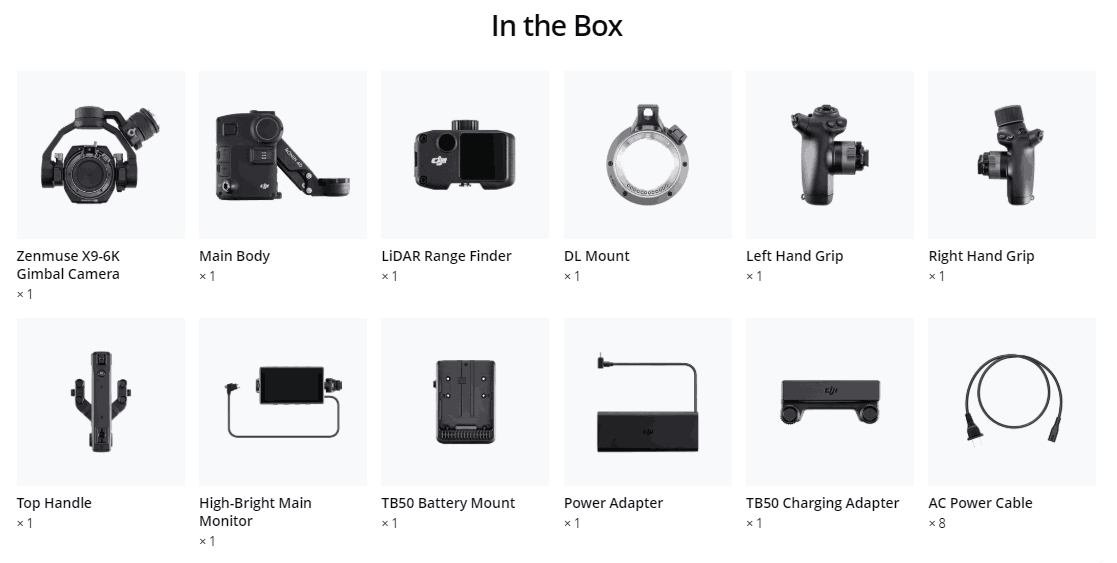

DJI Ronin 4D-6K

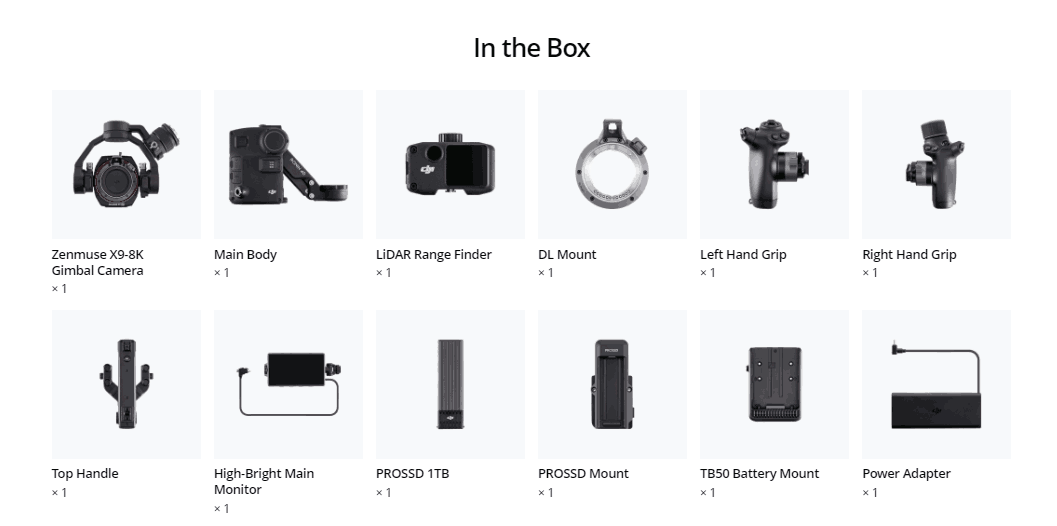

DJI Ronin 4D-8K
