T8 C-TICK tubes8 LED light tube led tube xxx indonesia

Specifications T8 C-TICK G13 LED Tube Light Australia market

2feet 4feet 5 feet tube8

15W,18W,22W,23W for 1200mm

super bright

C-tick

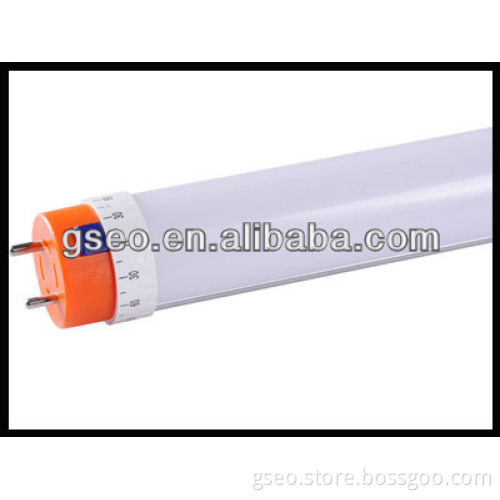

T8 C-TICK tubes8 LED light tube led tube xxx indonesia   T8 C-TICK LED Tube Lights 2ft 3ft 4ft 5ft lighting made in china     SAA 19W T8 LED Tube Light 4ft LED Light  made in china     General Introduction This high Lumen T8 C-TICK LED Tube Lights uses SMD LED light source and there are 600mm(2 feet), 900mm(3 feet), 1200mm(4 feet), 1500mm(5 feet) and 2400mm(8 feet) available.With longer lifespan(>50,000hours), higher brightness and less toxic substance, it can be widely used to replace the traditional fluorescent tube lights. This type of T8 C-TICK LED Tube Lights adopts the standard G13 socket and work with AC85-265V. It is also SAA, C-tick approved.   Feature

Ø More than 70% energy saving Ø No mercury, no UV, or IR light radiation Ø SMD LED light source Ø CRI>80Ra Ø Long lifespan for more than 50,000 hours Ø G13 socket compatible Ø Power consumption up to 19 Watt Ø High power driver efficiency>85%

Ø Indoor lighting Ø Architecture lighting Ø Flood lighting Ø Ambiscene Ø Biological Ø Traditional T8/T10 tube replacement

Application VDE T8 Tube can be applied in residential lighting, commercial lighting, office lighting, hotel lighting, factory lighting, etc.

Optical Parameters	Light Source	SMD 3528 LED
	Luminous Flux(lm)	1800
	CCT(K)	2800-7200
	CRI(Ra)	70/80
	Beam Angle	120°-160°
	Light Attenuation ratio (%)	Less than 10% in 3 years
	LED Quantity	288
Electrical Parameters	Input Voltage(V)	AC85-265V
	Frequency(Hz)	50/60HZ
	Output Voltage(V)	36-42V
	Total Power(W)	18
	Power Factor	0.9-0.95
	Lifespan (Hrs)	>50,000
	Dielectric Voltage Withstand Test	3750Vac/min
Structure Parameters	Material	Aluminum housing &PC cover
	Size(mm)	Φ26×1200
	Length(mm)	1200
	Net Weight(g)	320
Integrated Parameters	Operating Temperature	-10°-40°
	Storage Humidity	-40°-85°
	Safety Requirement	C-Tick
	Environmental Directives	RoHS
