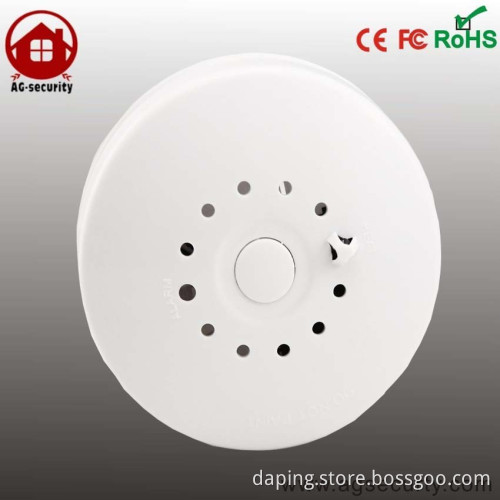

9v battery stand alone smoke and heat detector
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description
12v output double detect function with heat smoke detectors Specifications Smoke and Heat detector
Photoelectric sensor
Red LED indicate alarm Smoke and Heat detector Power supplied can use two style of DC9V battery & DC12V together; But if connected power DC12V, then power 9V battery will stop working, and if DC12V off power, then 9V battery as back battery keep to work continuously. Photoelectric sensor Alarm temperature for heat sensor :adjustable( MAX. 58) Red LED indicate alarm Unique battery missing lockout Low battery alarm High sensitivity Built in sounder to give a minimum sound output of 85dB at 3m Senses smoke using the light scatter principle-quick response to visible Smouldering smoke, test button simulates smoke use to check performance at least monthly, option current ≤10uA, alarm current ≤30mA. 1 -2year guarantee (limited)


Why to choose US? * Professional experience and ability to accept and fulfill ODM/OEM orders. * Answer your enquiries, questions and emails in 24 hours. * Direct control on material, testing, quality, lead time ect. * Flexible Payment terms ranged at different quantity * One year warranty life for all detectors sold out from US
Photoelectric sensor
Red LED indicate alarm Smoke and Heat detector Power supplied can use two style of DC9V battery & DC12V together; But if connected power DC12V, then power 9V battery will stop working, and if DC12V off power, then 9V battery as back battery keep to work continuously. Photoelectric sensor Alarm temperature for heat sensor :adjustable( MAX. 58) Red LED indicate alarm Unique battery missing lockout Low battery alarm High sensitivity Built in sounder to give a minimum sound output of 85dB at 3m Senses smoke using the light scatter principle-quick response to visible Smouldering smoke, test button simulates smoke use to check performance at least monthly, option current ≤10uA, alarm current ≤30mA. 1 -2year guarantee (limited)
Specifications | |
Name | Wired Photoelectric Smoke & Heat Detector |
Model | dp-2688 |
Ways | Photoelectroic sensor |
Power Supply | DC9-16V / Battery |
Battery Type | 6F22 Battery DC9V |
Alarm Indicator | Red LED / Di Di Soud(85dB) |
Detecting Area | 60 square meter(installation height less than 6m) |
Test | Have Hush & Test button |
Reset | Auto-reset after trigger |
Sensitivity | 2.06 ± 1.3%ft |
Alarm Temperature | 57°C |
Static current | ≤10μA |
Alarm current | ≤35mA |
Operation Temp. | –10°C to +50°C |
Humidity | 5%--95% non-condensing |
Installation | Ceiling mounted |
Dimension | 128mm dia. 38mm deep |
Weight | 250g |
PST-SH101 Package List | |
Smoke | x1 |
Screws | x2 |
Battery | x1 |
Plastic screw plug | x2 |
User Manual | x1 |
