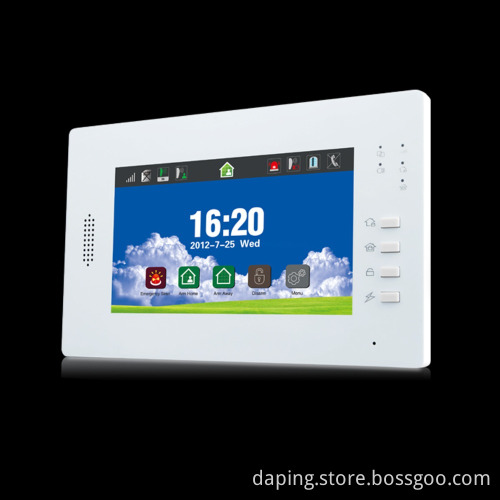

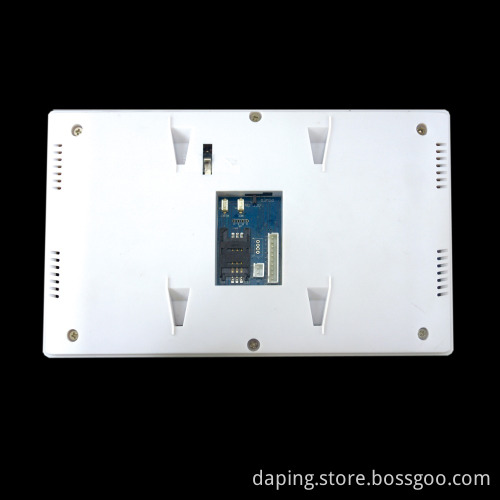

Wireless 7" Full Touch Home Security Wireless GSM Smart Alarm System Kits with APP for Android and IOS Smart Phones

Product Description Main Features:
1.Full touch screen alarm system, friendly interface 7 inch color screen displays icons and words;
2.Preloaded multi-optional system languages: traditional\simplified Chinese, English, German, French, Russian, Hebrew etc., which can meet different market requirements;
3.Alarm info transferring by GSM network (3 Bands or 4 Bands),or PSTN network, or dual-network in the form of phone call, SMS;
4.System has 31 wireless zones(each zone supports max 4 wireless sensors), compatible with optional wireless siren and 8 wired zones;
5.In system can preset max 5 groups phone numbers, alarm call will be in first priority if a normal call is going; GSM module will send alarm info once the landline cable is cut; Every group telephone number can be individually set to transfer alarm info by SMS or phone call;
6.Zone detection notification in disarm status, system can monitor the kids track;
7.In system menu you can set Pass By ON/OFF, zone type, Entry Delay ON/OFF for each zone;
8.Smart-logical analysis technology, zone name, installation position and sensor name will be displayed when system alarms;
9.Learn sensors into alarm host by friendly interface;
10.System has non-volatile chip, information will be stored automatically if power is off;
11.Optional smart functions, including check door\window status or voltage status automatically, low voltage of host or sensor alarm, uploads low voltage status to CMS;
12.Support optional wireless "ding-dong" doorbell;
13.Dual network and GSM network alarm host can send alarm info by SMS or phone call; PSTN network alarm host can only send alarm info by phone call;
14.Dual network and GSM alarm host can arm/disarm system by phone call, or SMS, or wireless remote controller, or host keypad, or wireless operation keypad; PSTN alarm host can arm/disarm system by phone call, or wireless remote controller, or host keypad, or wireless operation keypad;
15.System works with AC\DC power supply and built-in high energy lithium battery, system will give notification when low voltage, landline is cut and low power supply happen;
16."Black Box" functions, system can store max 99 alarm records and 100 operation records
17.Host is compatible with Contact ID protocol, suitable to build CMS (Central Monitoring Station);

Technical Parameters:
1.Power supply: 100VAC~240VAC
2.Static current: less than or equal to 140Ma, alarm current:less than or equal to 500Ma
3.Working condition: temperature -10Celsius~50Celsius, Humidly less-than 80%
4.Support max 8 wireless remote controllers, and max 116pcs wireless sensors, like door/window sensor, PIR sensor, and wireless gas detector;
5.System wireless frequency 433.92MHz or 868.35MHz;
6.Backup battery: rechargeable lithium battery 7.4V1200mAH;
7.3 Bands 900/1800/1900MHz or 4 Bands 850/900/1800/1900MHz is optional for GSM host and dual-network host;
8.Product dimension:220mm*190mm*28mm
Related Products Wireless Pir Motion Sensor •Wireless PIR sensor powered by Lithium battery
•Nice outlooks design, universal bracket included
•Built-in USB jack and power ON/OFF switch
•Dual element PIR sensor for movement detection
•Low power indication and send out signal design
•Built-in Fresnel lens technology
•Special temperature compensation circuit design, no fault alarm, non fause alarm and no miss alarm

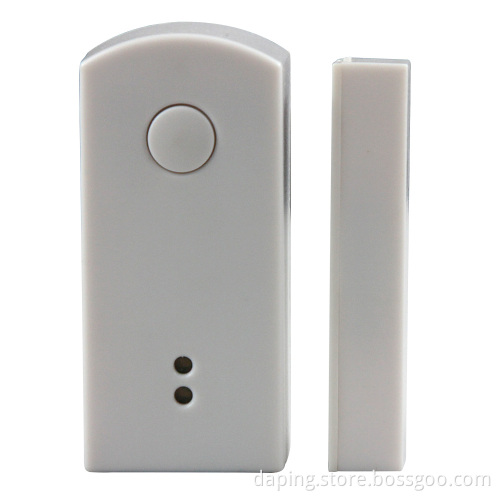

Wireless Door Contact Sensor 1.Power supply: 3.7V/200mAh rechargeable Li-ion battery
2.Emission distance: greater than or equal to 150 meters (in open air)
3.Charging time: 12 h
4.Full loaded battery work time: less than or equal to 3 years
5.Alarm distance: less than 4cm
6.Dimension: 65 * 30 * 17 mm
Wireless Indoor Siren Works with alarm host, wireless receiving alarm signals, spot alarm with sound and flash.
With power plug, usually for indoor use.
Operating Power: 100~240VAC
Receiving Distance: 100 M In open area
Remote Control Generally, press the "Away" key to arm the alarm system before leaving detected space; press "Disarm" key to disarm the alarm system when system is alarming; press "Home" to disarm the alarm system partly to set all sensors in motion zone free when you stay in detected space
Wireless Keypad 1. Use together with XSJ alarm host.
2. Arm away\disarm alarm host by user's code
3. LED indicator to show alarm host's real status (arm\disarm)
4. Low-voltage indicator
5. Battery operated
6. Current: standby<20MA, Transfer signals<30MA
7. Signal transferring parameters:
Chip: EV1527; Frenquency:433Mhz; Vibration resistance: 330K
8. Battery lifetime: More than 30 days, 1.5V AAA *5PCS (One-time battery)
9. Transfer Signals Distance: Outdoors<100m, Indoors<50m
Our Company AG-security manufactures and provides the best security solutions throughout the whole world. We are always looking to fulfill all of our clients requests, trying to find the best solution while giving full comprehensive advising and consultancy.

Our goal is to supply each customer with the alarm system that best suits their needs by combining quality, price and warranty.

We have a proven experience in the commercial equipment field, always at the forefront of technology and trends, developing ourselves within projects and more varied environments. Leadership, integrity and professionalism is what characterizes AG-security.
Certifications Delivery FAQ 1. What's your best price for this alarm?
A: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.

2. What's your MOQ?
A: For alarm system, MOQ is 10 PCs per model; for accessories, MOQ is 100pcs.

3. What's the delivery time?
A: For products that are in stock, we can ship it within 3 days after receiving your payment. For custom order,
quantity within 1000PCs, production time is 30-45 days after all details confirmed.

4.What's your packing?
A: Individual alarm system with color box, 10pcs/CTN.

5. Can we print our own logo?
A: Yes, we can print logo for you.

6.What about the warranty?
A: 1 year warranty,technical support.


More questions please contact me. Skype: daping_amy
