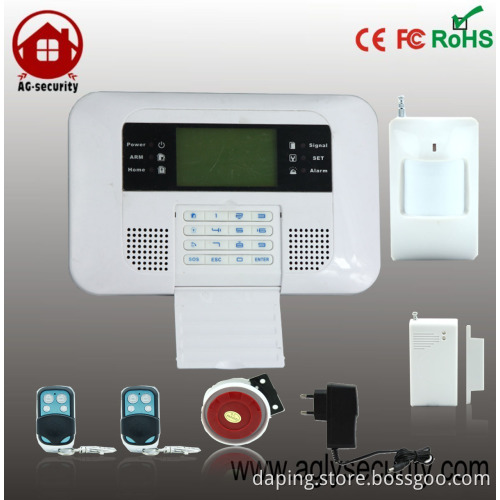

LCD Display GSM PSTN Dual Network Alarm System



    LCD Display GSM PSTN Dual Network Alarm System       1, GSM network, and with telephone landline 2, 4 wired and 10 wireless zones, each can support 10 detectors (the maximum is 100). 3, Code pairing for up to 8 wireless remote controls. 4, Built-in intercom speakers with high acoustic quality and large volume. 5, Preset 6 alarm phone numbers to dial up. 6, Preset 3 SMS numbers to send the message when alarm 7, Built-in digital voice announcer to report alarm conditions automatically. 8, Telephone function, allowing two-way communication through telephone 9, Programming for alarm place: help-seeking, fire, gas, door lock, living room, window, balcony or surrounding alarm. 10, Can record all the information of 40 alarm events automatically. 11, Multi-arming modes: real-time arming via remote control, delayed system arming when outgoing, arming at home, arming at appointed time, remote arming via phone. 12, Various programming functions for zones, such as real time, delayed, 24 hours and bypass.  13, Built-in lithium battery with high capacity to enable alarm while power-off.

Wireless Gap Detector (Door / Window Contact)
Power Supply	DC12V/23A Battery
Static Current	≤20 mA
Transmission Current	≤15mA
Transmission Frequency	433MHZ ± 0.5MHZ
Transmission Distance	About 30m with one barrier
Internal Distance	15 mm
Working Condition	Temperature –10 ~+ 40
Humidity	≤ 90% rh
Battery Life Time	About 6 months



Wireless P.I.R Motion Detector
Power Supply	DC9V (6F22 battery)
Transmission Current	≤20mA
Static Current	≤10mA
Wireless Frequency	433MHZ ± 0.5MHZ
Transmission Distance	About 30m with one barrier
Detective Speed	0.3 - 3m/s
Detective Distance	5 - 12m
Detective Range	Horizontal 110° Vertical 60°
Battery Life Time	About 6 months
Working Condition	Temperature –10  ~+ 40
Humidity	≤ 90 rh
Battery Life Time	About 6 months



Remote Controller (Keyfobs)
Static Current	0
Emission Current	≤15 mA
Transmission Frequency	433MHZ ± 0.5MHZ
Emission Speed	T≤1 second
Emission Distance	About 30 meters
Working Condition	Temperature –10  ~+ 40
Humidity	≤ 90 rh
Battery Life Time	About 6 months
