Specifications 1.600 tvl varifocal ir bullet camera 6mm lens

2.1/3'' SONY Super HAD CCD

3.sony ccd chipset

4.30m ir distance

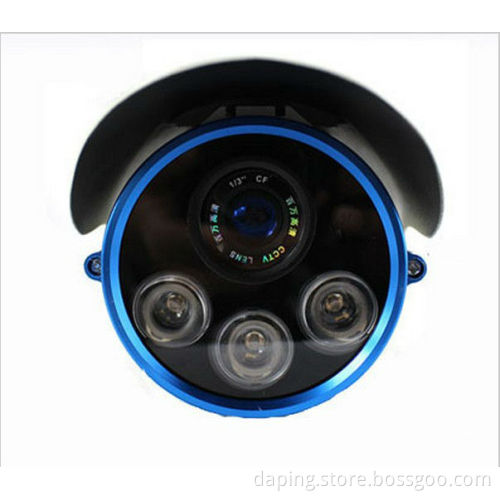

1/3 CMOS 6mm Lens 600TVL 3LED High Intensity Infrared Night Vision Security Waterproof CCTV Camera
    Features:
• High performanceSHAERP CD
•High resolution, 600TVL,image clarity, detail(you can also doany otherchip solutions)
•illumination, color0.001Lux @ (F1.2, AGC ON),black and white0.0001Lux @ (F1.2, AGC ON)
• SupportICR filterautomaticswitching, automaticcolor to black,day and nightsurveillance
•Support OSDmenu control,suitable forcustomerscustom settings
• Supportsdigital noise reduction
• SupportsdigitalWDR function
• Supportglarereverse function
• Engineeringdesign of advanced, three-axisrotation, high reliability   Product parameters :

Solution	NTSC	PAL
Pixel	768 (H) x 494(V)	752(H) x 582 (V)
Image Sensor	1/3" SONY Super HAD II CCD
Resolution	480TV  600TV 700TV
1/3" Sony CCD	1/3SONY 480TV  SONY632/633+Nextchip 2030 1/3SONY 600TV  SONY638/639+Nextchip 2040 1/3SONY 700TVL 4140+673
Video Output	1.0Vp-p/75Ω Video,0.714Vp-p Composite, 0.286Vp-p
S/N Ratio	>48dB
Scanning System	2:1 Interlaced
Array IR LEDs	2pcs (effect distance 50m )
Minimum illumination	0 Lux IR on
Day/ Night Switch	Color/ B &W
ELC	NTSC: 1/60~1/10,000s, PAL:1/50~1/10,000s
White Balance	Auto
BLC	Auto
Lens	Default  6mm Lens (4mm,8mm,12mm ,16mm option)
Power Supply	12VDC ±10%
Power Consumption	1.2W(DC)IR on
Operation Temperature	Temperature: -10 ~ +50
Operation Humidity	20%~90% RH
Material	Metal
Size	185X95X95mm
Weight	0.9kg
