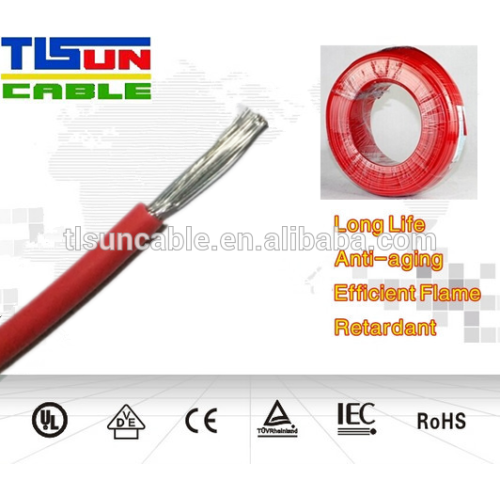

Hot Sell Tinned copper UL1015 single Core 14AWG Electric Wire

• Rated temperature:105°C
• Rated voltage: 600V
• Reference standard:UL758,UL1581 ,CSA C22.2No.210.2
• Solid or stranded ,tinned or bare copper conductor 30~2AWG
• PVC insulation , comply with ROHS environmental standard
• Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
• Uniform insulation thickness to ensure easy stripping and cutting
• For general purpose internal wiring of appliance

MARKING

  AWM 1015 E170689 VW-1 105°C 600V () AWG XINYA CSA AWM I A LL109915 FT1 105°C 600V () AWG -F- LM

CONDUCTOR

INSULATION

MAX.COND.

RESISTANCE (Ω/km,20℃,DC)

DIELECTRIC

STRENGTH

(VAC,1min)

AWG

CONSTRUCTION

(No./mm)

DIA.

(mm)

THICKNESs

(mm)

O.D.

(mm)

30

7/0.10

0.30

0.80

1.90

381

2,000

28

1/0.32

7/0.127

7/0.127OS-1*

0.32

0.38

0.38

0.79

0.81

0.81

1.90

2.00

2.00

227

239

239

2,000

26

1/0.404

7/0.16

7/0.16 OS-1*

0.40

0.48

0.48

0.80

0.81

0.81

2.00

2.10

2.10

143

150

150

2,000

24

1/0.511

11/0.16

7/0.20OS-1*

0.51

0.61

0.60

0.80

0.82

0.83

2.10

2.25

2.25

89.3

94.2

94.2

2,000

22

1/0.643

17/0.16

7/0.254 OS-1*

0.64

0.76

0.76

0.80

0.82

0.82
