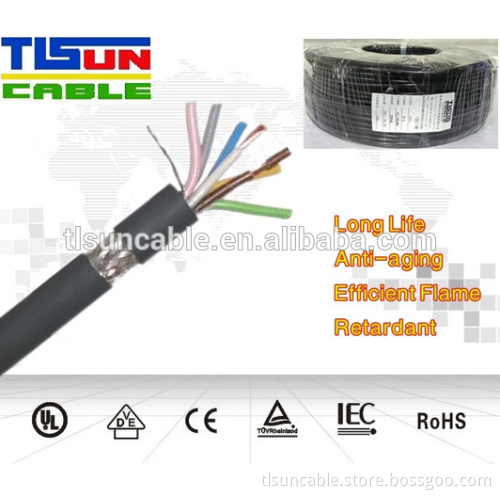

hook up wire UL2517 transmit signal data cable

 hook up wire UL2517 transmit  signal data cable     Specification   1).Copper conductor, pvc insulation 2).High quality competitive price  3).20 years of professional factory  4).  ul2517 cable General feature: 1. Pure copper wire and cable  2. CCC,CE,ROHS ISO  3. OEM are welcome Use and appliance: The products can be used for power lighting or telecommunication equipment , household electric appliance,meter and instrument , etc. with rated A/C voltage being 450/750V . Operating Characteristic: Temperature should be above 0 °C when laying the cables or wires . Bending radius allowed:a minimum 4D is required for cables that have an outer diameter less than 25mm , while other cables have a minimum requirement of 6D. Long time working temperature of or below 70°C is required for all cables or wires.

Nominal Cross-section Area mm2	Calculation Outer Diameter mm	Max.d.c.resistance at 20 °c Ω/km	Min.insulation resistance at 70°c MΩ/km	Product approximate weight kg/km
1x1.5	2.7	12.2	0.011	19.5
1x1.5	2.9	12.1	0.010	19.5
1x2.5	3.3	7.41	0.010	30.8
1x2.5	3.6	7.41	0.010	31.5
1x4	3.8	4.61	0.0085	45.6
1x4	4.1	4.61	0.0077	45.6
1x6	4.3	3.08	0.0070	65.3
1x6	4.7	3.08	0.0065	65.3
1x10	6.0	1.83	0.0065	111
1x16	7.1	1.15	0.000	169
1x25	8.8	0.727	0.000	265
1x35	9.9	0.524	0.0040	359
1x50	11.1	0.387	0.0045	485
1x70	13.5	0.268	0.0035	685
1x95	15.8	0.193	0.0035	946
