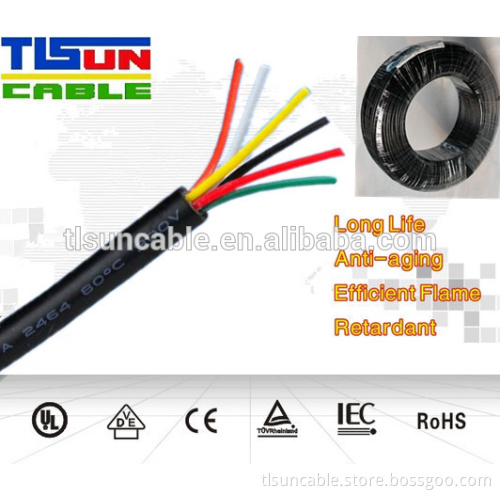

electric cable 24AWG UL2464 communication cable

Get Latest Price

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

electric cable 24AWG UL2464 communication cable 1. Rate temperature: 80°C
2. Rate voItage: 300V
3. Standard: UL758.UL1581
4. Solld or stranded .tinned or bare copper conductor
5. PVC insulation, ROHS,REACHcompliant.
6. PVC jacket, ROHS,REACHcompliant.
7. Tinned or bare copper wire braid shield
8. Passes UL VW-1 SC & CSA FT1 fIame test
9. Uniform insulation thickness to ensure easy stripping and cutting
10. For general purpose internaI wiring of appliance.

CONDUCTOR				INSULATION		DRAIN	BRAID	JACKET
CONDUCTOR				INSULATION			BRAID	JACKET
AWG	CONSTRUCTION	DIA	NO.	INSULATION THICKNESS(mm)	O.D	CONSTRUCTION	CONSTRUCTION	JACKET THICKNESS /mm	O.D. mm
		(mm)			(mm)	No./mm
	(No./mm)						No./No./mm

28	7/0.127	0.38	2	0.41	1.2	7/0.127	64/0.1	0.8	4.50
			3				64/0.1		4.70
			4				80/0.1		5.00
			5				80/0.1		5.40
			6				80/0.1		5.70
			7				80/0.1		5.70
			8				96/0.1		6.10
26	7/0.16	0.48	2		1.3	7/0.16	64/0.1		4.70
			3				64/0.1		4.90
			4				80/0.1		5.20
			5				80/0.1		5.60
			6				96/0.1		6.00
			7				96/0.1		6.00
			8				96/0.1		6.40
24	11/0.16	0.61	2		1.45	11/0.16	80/0.1		5.00
			3				80/0.1		5.20
			4				80/0.1		5.60
			5				96/0.1		6.00
			6				96/0.1		6.40
			7				96/0.1		6.40
			8				112/0.1		6.80
22	17/0.16	0.76	2	0.42	1.6	17/0.16	80/0.1		5.30
			3				96/0.1		5.50
			4				96/0.1		5.90
			5				96/0.1		6.40
			6				112/0.1		6.90
			7				112/0.1		6.90
			8				120/0.1		7.50
20	26/0.16	0.94	2	0.43	1.8	26/0.16	80/0.1		5.70
			3		1.8		96/0.1		6.00
			4		1.8		96/0.1		6.50
			5		1.8		112/0.1		7.00
			6		1.8		112/0.1	0.85	7.60
			7		1.8		112/0.1	0.85	7.60
			8		1.8		120/0.1	0.88	8.20
