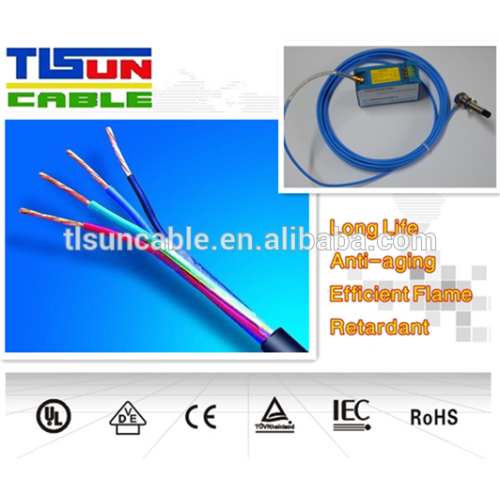

Phoenix actuator sensor cable replace shielding control cable

Some with UL approvals

Plastic, metal or stainless steel shells

360° shielding and IP 67/IP 68 protection

3 to 4 contacts per connector

Contacts with solder, screw, or cage clamp termination

Connector Series

M8

Gender

Male

Coding Type

B

Assembly Style

Molding

Part Number

M08FM0012

Standard

IEC 61076-2-101 Ed 3.0

Connector body

PA66+GF or TPU

Connector Contacts

Brass with gold plated

Coupling Screw

Brass with nickel plated

Insulation Resistance

≥100MΩ

Waterproof Rating

IP67/IP68

Contacts

Rated voltage

Rated current

Contact Resistance

A/C

D/C

3 Pins

60V

60V

3A

<10mΩ

4 Pins

30V

30V

3A

<10mΩ

Automation

Measurement & Control

Aviation

Maritime

Transportation

Moister application

Miniature Sensor

Other Outdoor Application

Medical Equipment

Lighting

Connector

male and female cable connector  with screw-locking, Brass CNC housing, Ni or Gold plating. Nylon 66/Nylon 9T plastic core, molding type, PCB typeelectricconnector and assemble type are optional.

Plastic Housing

Black color, PA+GF(or PUR), Nylon 66/Nylon 9T with perfect size

Contact Pin

4PINs, Brass with gold plating, Solder type, perfect performance for the insertion and within draw

Screw

M12 brass screw with nickel plating. (or stainless steel, Gold plating)

Rated voltage

60V AV/DC

 Test voltage

1400V

Rated current

4A(10A can be done upon requirement)

Contact resistance

≤5mΩ

Insulation resistance

>20MΩ

Operation temperature

-10°C~70°C(PVC cable)

-25°C~90°C(PUR cable)

-25°C~105°C(PUR cable)
