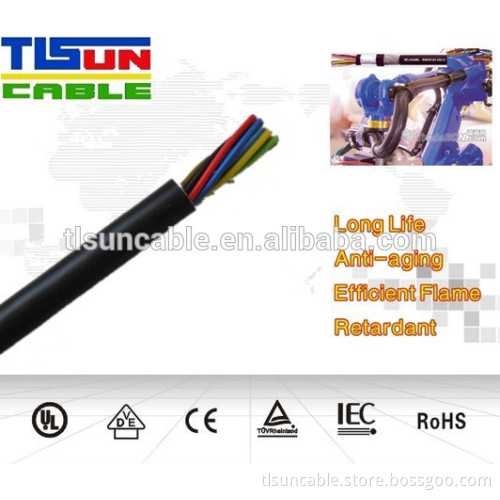

Intelligence Signal control Encoder Robots cable

1.APPLICATION:

The cable is suitable for the servo motor as a power supply is used,Structure with double screen,Also can be used as a measurement,Monitor and control cables,Used in the machine,Workshop and the robot structure, automation, drive and control , etc.

2.PRODUCT DESCRIPTION:

(performance parameter)

(structure specification)

TYPE):

ROBOT (CY)

conductor:

Multi-strand copper stranded conductor (tin) bare copper

product (standards) DIN VDE 0281;0245

insulation:

TPEE insulation

cabling:

control pair cladding AL-FOIL rear Braided shielding;Power conductor And the line of control Using the optimal pitch cabling.

(Rated VOltage):

power line:0.6/1 KV

control cable:300/500V

(Use Temperature)

bend: -30℃ +80℃

shield:

cabling rear cladding belting;Tin plated copper wire total shielding Coverage of 85% or higher

static state: -40℃ +85℃

(Bend Radius)

7×(OuterDiameter ) over sheath: special PUR,conform to DIN VDE Conductor size mm² Jacket OD (4×2.5)+2×1.0 14.1±0.01mm (4×1.5)+2×(2×1.0) 13.1±0.01mm 4×1.5 10.4±0.01mm (4×1.5)+2×1.0 11.8 ±0.01mm (4×2.5)+2×(2×1.0) 14.9 ±0.01mm 4×2.5 12.2 ±0.01mm (4×4.0)+2×(2×1.0) 16.7 ±0.01mm
