2YSLCYK-JB PVC motor supply cable is a double shielded UV-resistant

      2YSLCYK-JB PVC motor supply cable is a double shielded  UV-resistant

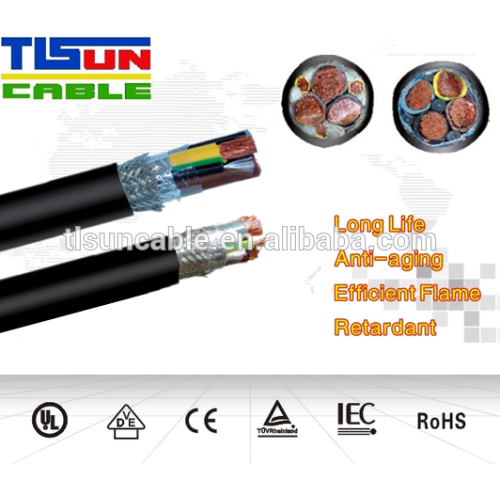

      2YSLCYK-JB is a double shielded, large gauge size, PVC motor supply cable with a black PVC UV-resistant outer jacket and the option for 3 or 4 conductors. Polyethylene insulation over a very fine copper strand provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. 2YSLCYK-JB applications include frequency converters, motor runs and in connections with high electromagnetic interference.  Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment.  The overall foil and tinned copper braid shield offer excellent protection against electromagnetic and electrical interferences. This product offers the common single green/yellow ground wire or three (3) symmetrical green/yellow ground wires for improved EMC characteristics. For medium mechanical stresses found indoors in dry, moist or wet areas. Technical data -ed to DIN VDE 0250 Temperature range -flexing -5°C to +70°C, Fixed installation -20°C to +70°C Nominal voltage -Uo/U 600/1000 V Test voltage -4000 V Insulation resistance -min. 200 MOhm x km Minimum bending radius -flexing 15 x cable ø, Fixed installation 4 x cable ø CE= -The product conforms with the EC Low-Voltage Directive 2006/95/EC

Part No.	Number of cores and sq mm per conductor	Nominal Overall Diameter (mm)
03 08 004C 01X5	4 x 1.5	11.4
03 08 004C 0004	4 x 4.0	15.6
03 08 004C 0006	4 x 6.0	17.0
03 08 004C 0010	4 x 10.0	19.6
03 08 004C 0016	4 x 16.0	22.1
03 08 004C 0025	4 x 25.0	26.3
03 08 004C 0035	4 x 35.0	29.5
03 08 004C 0050	4 x 50.0	35.8
03 08 004C 0070	4 x 70.0	40.3
03 08 004C 0095	4 x 95.0	46.5
03 08 004C 0120	4 x 120.0	53.5
03 08 004C 0150	4 x 150.0	57.3
03 08 004C 0185	4 x 185.0	62.3
03 08 3C3G M105	3 x 1.5 + 3 G 0.25	11.4
03 08 3C3G M205	3 x 2.5 + 3 G 0.5	12.2
03 08 3C3G M004	3 x 4 + 3 G 0.75	14.4
03 08 3C3G M006	3 x 6 + 3 G 1	15.7
03 08 3C3G M010	3 x 10 + 3 G 1.5	18.0
03 08 3C3G M016	3 x 16 + 3 G 2.5	20.2
03 08 3C3G M025	3 x 25 + 3 G 4	23.8
03 08 3C3G M035	3 x 35 + 3 G 6	26.9
03 08 3C3G M050	3 x 50 + 3 G 10	32.6
03 08 3C3G M070	3 x 70 + 3 G 10	36.4
03 08 3C3G M095	3 x 95 + 3 G 16	42.0
03 08 3C3G M120	3 x 120 + 3 G 16	47.8
03 08 3C3G M150	3 x 150 + 3 G 25	51.6
03 08 3C3G M185	3 x 185 + 3 G 35	56.5

          \
