H05V-K Cable AVR/RV/BVR Cable

Specifications H05V-K Cable AVR/RV/BVR Cable

1.Standard:BS 6004, IEC 60227

2.Rated Voltage:300/500V;450/750V

3.Factory direct sale OEM serv

    H05V-K Cable  AVR/RV/BVR Cable       Specifications H075-K Cable RV Cable

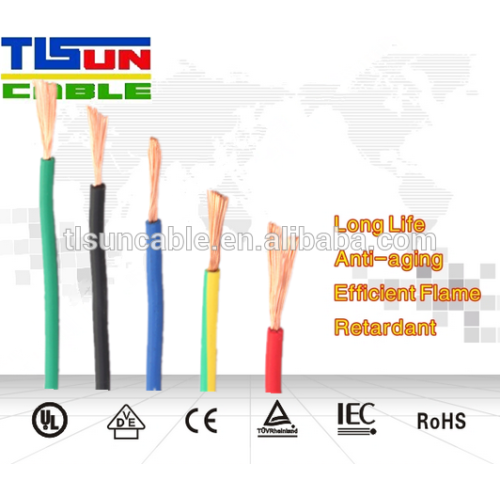

Used for Construction power system H05V-K Cable RV Cable   Specifications 1.Standard:BS 6004, IEC 60227 2.Rated Voltage:300/500V;450/750V 3.Factory direct sale OEM serve   Flexible Non-sheathed Single Core Electric Cable/PVC Flexible Insulated RV Cable   Product Description Construction: Flexible annealed copper wire as conductor (Class 5), PVC insulated single core wire. Code Name: H05V-K ( 0.5mm2 ~ 1.0mm2 );  H07V-K ( 1.5mm2 ~ 240mm2 ) Voltage: 300/500V for H05V-K;  450/750V for H07V-K. The non-sheathed single core flexible wire is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.     Manufacturing Standards GB/T 5023-2008, BS 6004, IEC 60227   Application The non-sheathed single core flexible wire is used for wiring of switch control, relay and instrument panels of power switch-gear, and such purpose as internal connections in rectifier equipment and in motor starters and controllers.

Code Name	Nominal conductor area	Number of wires	Nominal diameter of wire	Nominal thickness of insulation	Approx.  Overall diameter	Max. Conductor DC resistance at 20oC
	mm2	No.	mm	mm	mm	Ω/km
H05V-K	0.5	16	0.2	0.6	2.1	39
	0.75	24	0.2	0.6	2.3	26
	1	32	0.2	0.6	2.5	19.5
H07V-K	1.5	30	0.25	0.7	3	13.3
	2.5	50	0.25	0.8	3.6	7.98
	4	81	0.25	0.8	4.2	4.95
	6	121	0.25	0.8	4.8	3.3
	10	77	0.4	1	6.5	1.91
	16	126	0.4	1	7.8	1.21
	25	196	0.4	1.2	9.7	0.78
	35	280	0.4	1.2	11.5	0.554
	50	380	0.4	1.4	13.1	0.386
	70	350	0.5	1.4	15.5	0.272
	95	475	0.5	1.6	17.6	0.206
	120	600	0.5	1.6	19.7	0.161
	150	750	0.5	1.8	22	0.129
	185	925	0.5	2	24.1	0.106

      Electrical wire instruction:     Technology standards 1). Rated voltage U0/U: 300/500V and 450/750V. 2). The longtime permissible temperature of cable: below 70°C.  3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c. 4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.   5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.  6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.   7). Light weight, perfect bending properties, installed and maintained easily and conveniently.  8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.  9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.          \
