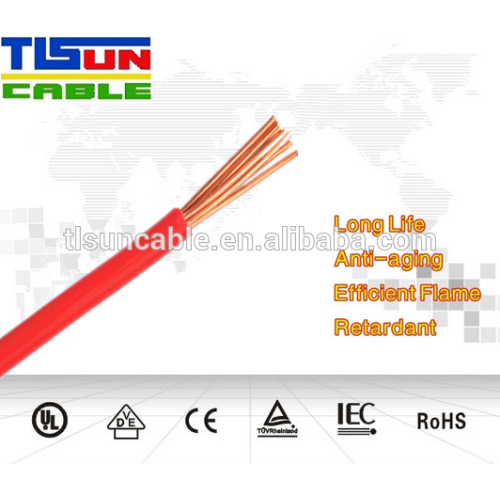

RV/BVR Cable Single core multi stranded panel flex/single flex Cables

Specifications H05V-K Cable AVR/RV/BVR Cable

1.Standard:BS 6004, IEC 60227

2.Rated Voltage:300/500V;450/750V

3.Factory direct sale OEM serv

   RV/BVR Cable Single core multi stranded panel flex/single flex Cables       Technical Data   Size mm²: 0.5   Stranding NoxDia: 14x0.21   Nominal Dia: 2.1   Nominal Amps**: 3   Mass kg/100m: 0.89   ** Rating for two wires only, for more wires derate as follows: 3 to 5 wires 0.8 6 to 15 wires 0.7 16 to 30 wires 0.5*According to SABS 10142-2008 Clause 6       Single core multi stranded panel flex/single flex       APPLICATIONS   For the wiring of all types of control panels, light fittings, appliances, communication panels, signalling relay racks, and many other applications. Manufactured to SABS 1574 , these products are used by public transport services, municipalities, Telkom, Eskom, major switchgear companies, electrical contractors and electricians.       CONSTRUCTION   High conductivity bunched plain flexible copper conductors, insulated with general purpose flexible grade PVC in all colours. Insulation is water, oil and abrasion resistant.       Packaging   Available in 100 metre PE Film or as request       Specification   Voltage rating : PF type300/500 Volts ; SF type 600/1000 volts   Test voltage : 5000/6000 Volts   Temperature Range : -10º to +80ºC   Current Capacity AC : As per table below   Flexibility Class : 4 and 5   Conductor Type : High conductivity annealed copper   Insulation Material : Flexible grade PVC   Colour options : Blue, Black, Brown, Yellow, Yellow/Green, Orange, Pink Violet, Grey, White, Red and Green       Technology standards 1). Rated voltage U0/U: 300/500V and 450/750V. 2). The longtime permissible temperature of cable: below 70°C.  3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c. 4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.   5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.  6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.   7). Light weight, perfect bending properties, installed and maintained easily and conveniently.  8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.  9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.          \
