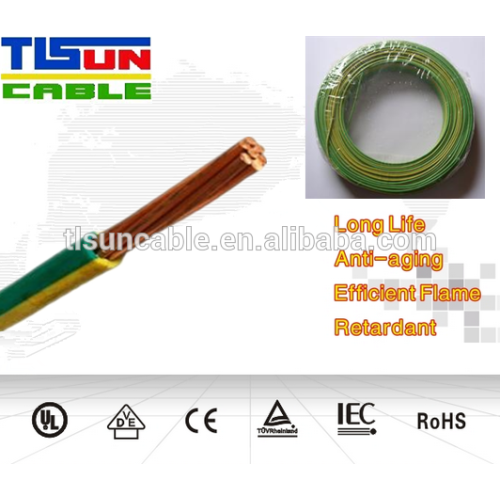

single conductor Cable Connecting Wire For Electric

  single conductor Cable Connecting Wire For Electric       PVC insulated wire  have good quality and the lowest price.If you buy our product ,we can be sure that you cannot be regreted.Usd in electric meter and electrical equipment and automatic device and so on . core:one-twenty four   Specific Property for Using
1. The long-time permissible working temperature of cable conductive core is not more than 70C.
2. During short circuit(max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5. Light weight, good bending property and easy installation and maintenance.
Technical Requirement 6.type:BV,BLV,BVR,BVV,BLVV,BVVB AND more If you want to buy other type ,we also can do it as you need. welcome to communicate with me.

Nominal cross section	Conductor core	Insulation thickness	Average outer diameter		Conductor resistance at 20°C max.		Insulation resistance at 70°C max.
	No. of individual  wires/diameter		Min.	Max.	Cu	Al
mm2	mm	mm	mm	mm	Ω/km	Ω/km	≤MΩ•km
BV/ ZR-BV/ BLV/ BVV/ BLVV/ BVVB/ BLVVB
1.5	1/1.38	0.7	2.6	3.2	12.1	/	0.011
2.5	1/1.78	0.8	3.2	3.9	7.41	11.8	0.010
4	1/2.25	0.8	3.6	4.4	4.61	7.39	0.0085
6	1/2.76	0.8	4.1	5.0	3.08	4.91	0.0070
10	7/1.35	1	5.6	6.7	1.83	3.08	0.0065
16	7/1.70	1	6.4	7.8	1.15	1.91	0.0050
25	7/2.14	1.2	8.1	9.7	0.727	1.20	0.0050
35	7/2.52	1.2	9.0	10.9	0.524	0.868	0.0043
50	19/1.78	1.4	10.6	12.8	0.387	0.641	0.0043
70	19/2.14	1.4	12.1	14.6	0.268	0.443	0.0035
95	19/2.52	1.6	14.1	17.1	0.193	0.320	0.0035
120	37/2.03	1.6	15.6	18.8	0.153	0.253	0.0032

             \
