RVVP CY 300-500V electrical equipment shielded Control cable

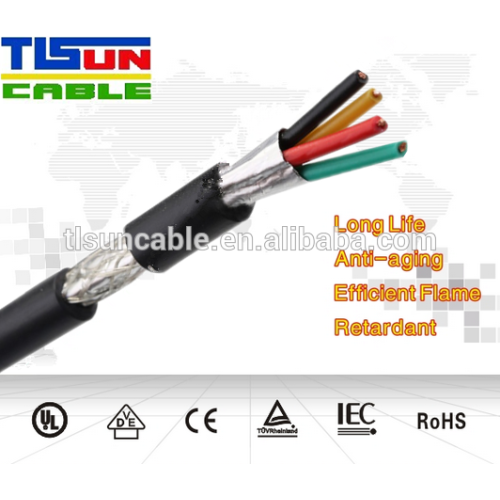

     RVVP CY 300-500V electrical equipment shielded Control cable         1. Construction: 1) Multi Core Stranded Flexible Copper Conductor    2) PVC Insulation    3) Shielding: AL Foil + Tinned copper braid (Shielded more than 85%)   4) Jacket: PVC Sheath   5) No. of cores : 2---24 cores   6) Voltage : 300/300V, 300/500v,450/750V   7) Working Temperature: Less than 70°C.   8) Standard: JB8734.5-1998         Application    The cable is suitable to be fixed wireing of power device, power lighting of home electric  equipment and instrument,inner wiring of electric equipment, instrument, electron equipment,  automatization device,etc.It applies to electrical appliances, instrument and telecom device  with ratevoltage up to and including 300/300 and 300/500 voltages.    Specification Size and Technical Data

NO.Cores	Specification	Cores×Normal area(mm2)	Jacket Color	Packing(rolls)
2 core	RVVP2×7/0.15	2×0.12	Black	100m/200m
	RVVP2×12/0.15	2×0.20	Black	100m/200m
	RVVP2×16/0.15	2×0.30	Black	100m/200m
	RVVP2×28/0.15	2×0.50	Black	100m/200m
	RVVP2×24/0.2	2×0.75	Black	100m/200m
	RVVP2×32/0.2	2×1.00	Black	100m/200m
	RVVP2×48/0.2	2×1.50	Black	100m/200m
	RVVP2×49/0.25	2×2.50	Black	100m/200m
	RVVP2×57/0.30	2×4.00	Black	100m/200m
3core	RVVP3×7/0.15	3×0.12	Black	100m/200m
	RVVP3×12/0.15	3×0.20	Black	100m/200m
	RVVP3×16/0.15	3×0.30	Black	100m/200m
	RVVP3×28/0.15	3×0.50	Black	100m/200m
	RVVP3×24/0.2	3×0.75	Black	100m/200m

    Electrical wire instruction:     Technology standards 1). Rated voltage U0/U: 300/500V and 450/750V. 2). The longtime permissible temperature of cable: below 70°C.  3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c. 4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.   5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of cable. And the other is above 6 times of the external diameter of cable.  6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.   7). Light weight, perfect bending properties, installed and maintained easily and conveniently.  8). Insulation sheath material and color: PVC, PE, XLPE in red, black, blue, and any color as required.  9). Manufacturer Standard: GB/T 5023-2008, BS 6004, IEC 60227.          \
